LCM-60U · 电压/PWM调光多档输出恒流电源

Mean Well · Enclosed Switching Power Supply · 50.4W 76

输出电压: 76 V DC
额定功率: 50.4 W
输出电流: 700m A

¥165.00市场价 ¥214.50含 13% 增值税

选择型号 — LCM-60系列LCM-60U

LCM-6060.3W · 102V · 700MA LCM-60DA60.3W · 95V · 700MA LCM-60KN60.3W · 95V · 700MA

LCM-60U50.4W · 76V · 700MA

LCM-60UDA50.4W

现货即将售罄无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 LCM-60U，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

LCM-60U series is a 50W LED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch. LCM-60U operates from 90～132VAC and offers different current levels ranging between 500mA and 1400mA. Thanks to the efficiency up to 89%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. LCM-60U is equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.

产品特点

Constant Current mode output with multiple levels selectable by dip switch
Plastic housing with class II design
Built-in active PFC function
Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
3 years warranty

规格参数

LCM-60U参数摘自官方规格书（2016-08-04 版）下载规格书 PDF

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section 500mA 600mA 700mA(default) 900mA 1050mA 1400mA
RATED POWER: 50.4W
DC VOLTAGE RANGE: 2 ~ 90V 2 ~ 84V 2 ~ 72V 2 ~ 56V 2 ~ 48V 2 ~ 36V
OPEN CIRCUIT VOLTAGE (max.): 102V 76V
CURRENT RIPPLE^注Note.6: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA
SETUP TIME^注Note.3: 1000ms / 115VAC

INPUT

VOLTAGE RANGE^注Note.2: 90 ~ 132VAC 127 ~ 186VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz

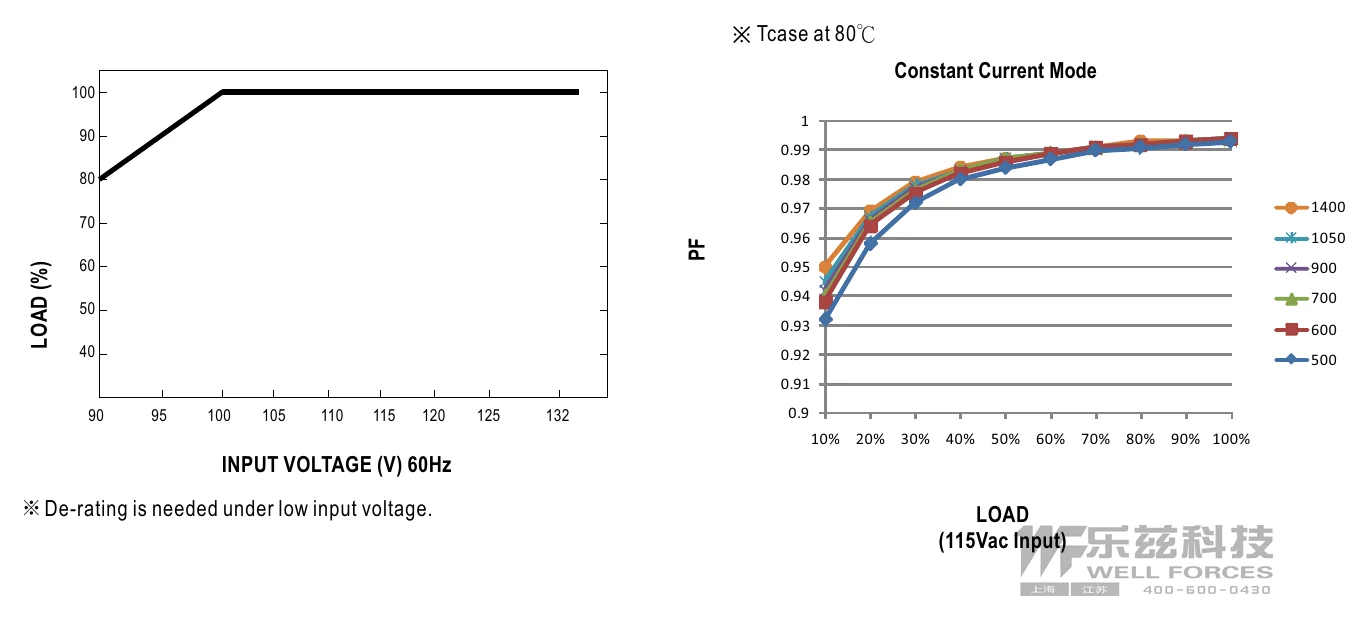

POWER FACTOR (Typ.): PF≧0.98/115VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^注Note.4: 89%
AC CURRENT (Typ.): 0.65A/115VAC
INRUSH CURRENT (Typ.): COLD START 15A(twidth=270μs measured at 50% Ipeak) at 115VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 15 units (circuit breaker of type B) / 25 units (circuit breaker of type C) at 115VAC
LEAKAGE CURRENT: <0.5mA / 120VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 125V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

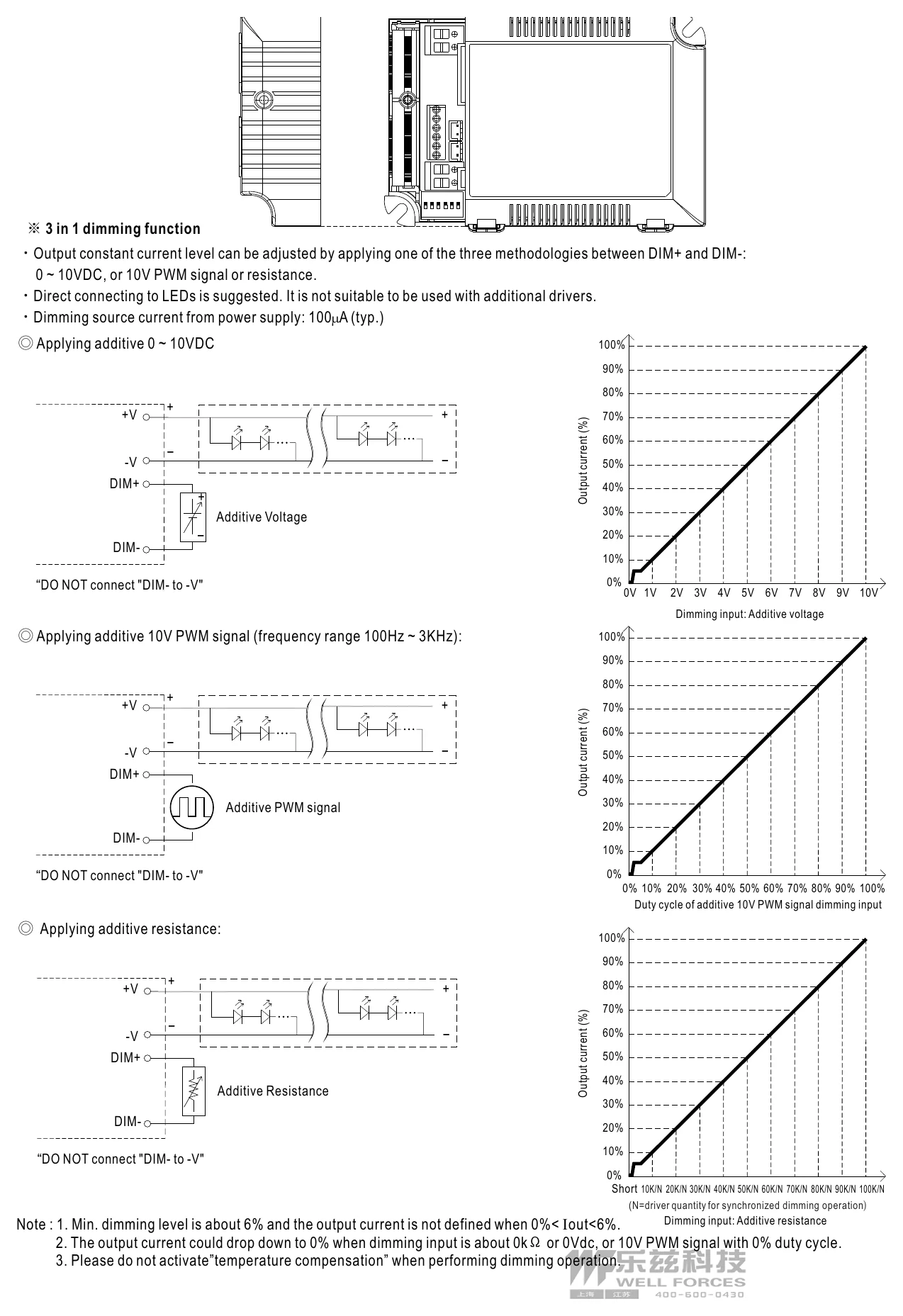

DIMMING: Please refer to "DIMMING OPERATION" section

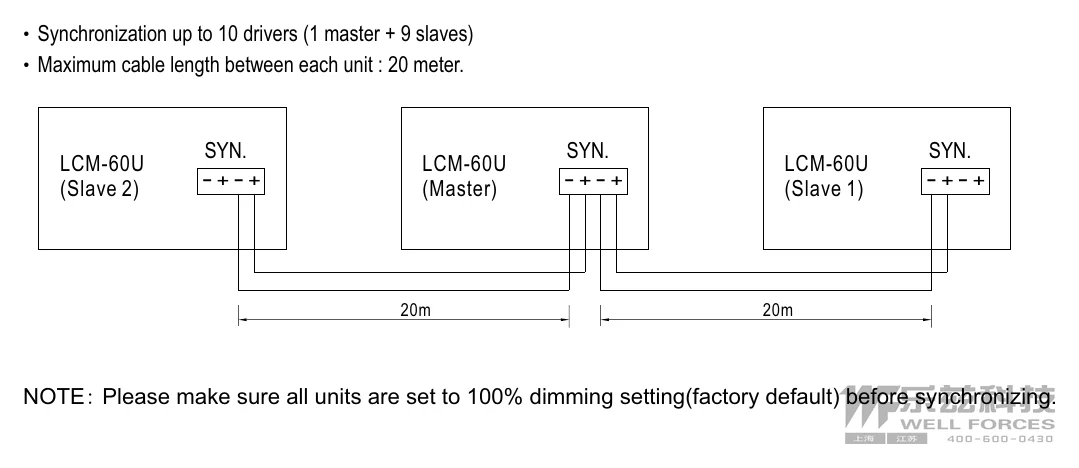

SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION” section
TEMP. COMPENSATION: By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 approved
DALI STANDARDS: Comply with IEC62386-101, 102, 207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC part 15 Subpart B

OTHERS

MTBF: 193.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.28Kg ; 54pcs/16Kg/1.12CUFT

测试条件与备注6

All parameters NOT specially mentioned are measured at 115VAC input, rated current and 25℃ of ambient temperature.
De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
Efficiency is measured at 700mA/72V output set by DIP switch.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
It is measured 60%~100% of maximum voltage under rated power delivery.

技术图纸

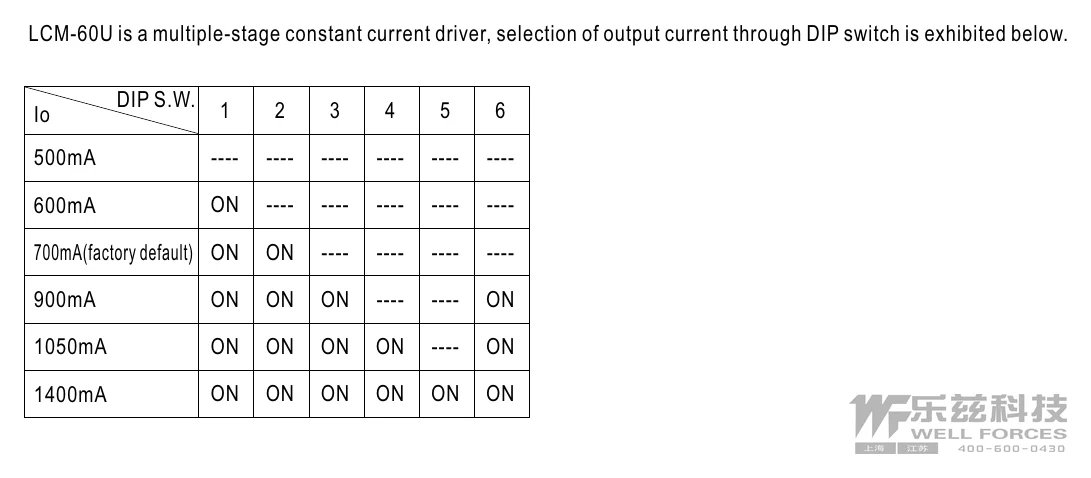

LCM-60U DIP开关设定表 — DIP开关设定表左右滑动 · 点击查看大图

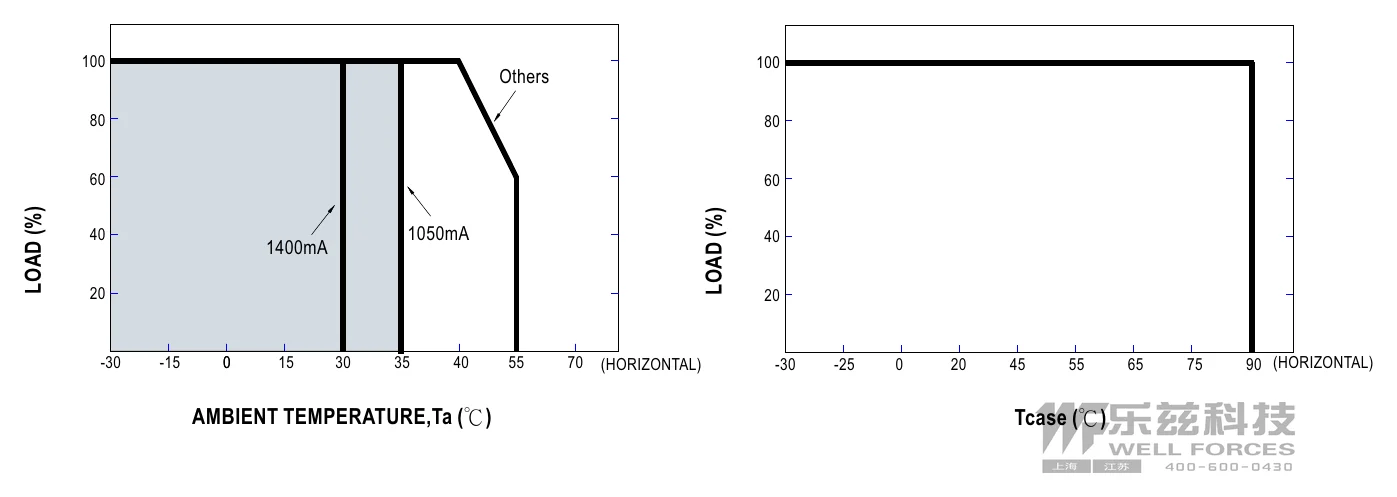

LCM-60U 输出负载vs温度 — 输出负载vs温度左右滑动 · 点击查看大图

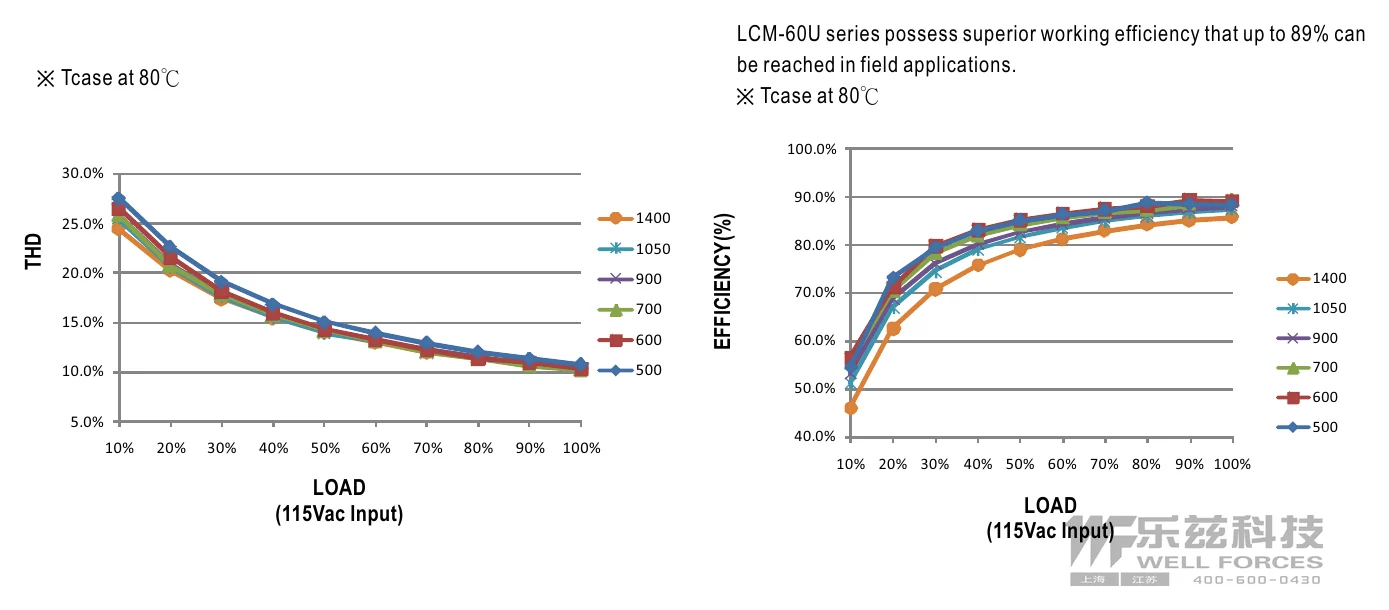

LCM-60U 总谐波失真特性曲线(THD) — 总谐波失真特性曲线(THD)左右滑动 · 点击查看大图

典型应用

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

资料下载

规格书1

LCM-60U 规格书PDF下载
