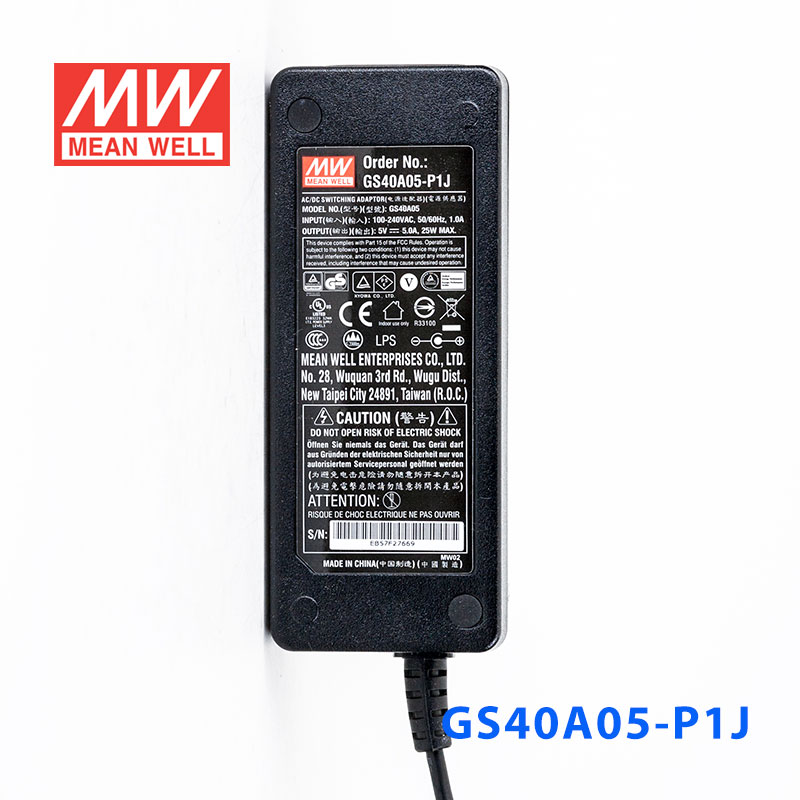

GS40A05-P1J · 绿色能源电源适配器

三线插口

输出电压: 5 V DC
额定功率: 25 W
输出电流: 5 A

¥74.00市场价 ¥96.20含 13% 增值税

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 GS40A05-P1J，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CCC CEEACFCC可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range

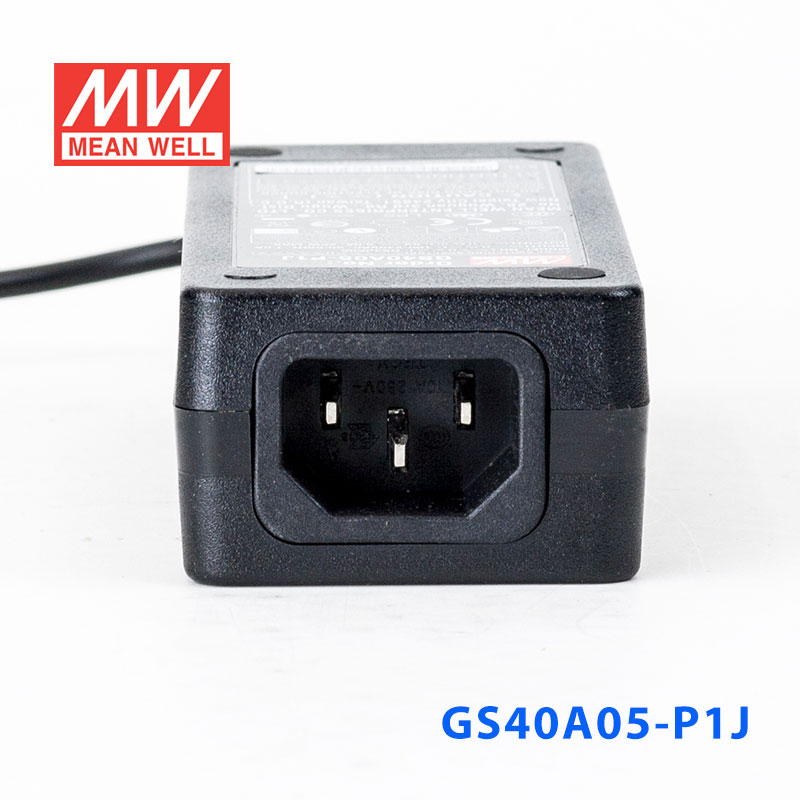

3 pole AC inlet IEC320-C14
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Approvals: UL / CUL / PSE / TUV / BSMI / CCC / CB / FCC / CE
Class I power (with earth pin)
Pass LPS

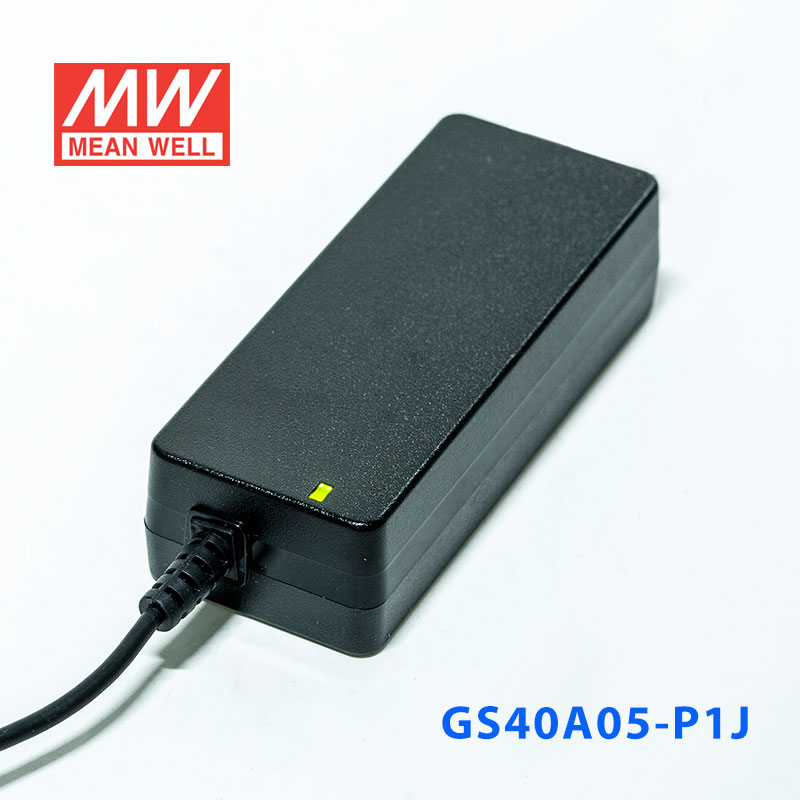

LED indicator for power on
No load power consumption<0.3W
ErP step2 compliant (level Ⅴ)
NRCan compliant
MEPS compliant
Meet EISA 2007 (Energy Independence and Security Act)
2 years warranty

规格参数

GS40A05-P1J参数摘自官方规格书（2013-05-06 版）下载规格书 PDF

OUTPUT

SAFETY MODEL NO.: GS40A05
DC VOLTAGE^注Note.2: 5V
RATED CURRENT: 5A
CURRENT RANGE: 0 ~ 5A
RATED POWER (max.): 25W
RIPPLE & NOISE (max.)^注Note.3: 100mVp-p
VOLTAGE TOLERANCE^注Note.4: ±5.0%
LINE REGULATION^注Note.5: ±1.0%
LOAD REGULATION: ±5.0%
SETUP, RISE TIME^注Note.7: 1000ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 50ms / 230VAC 15ms / 115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80.5%
AC CURRENT (Typ.): 1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (max.): 65A / 230VAC
LEAKAGE CURRENT(max.): 0.75mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.25 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

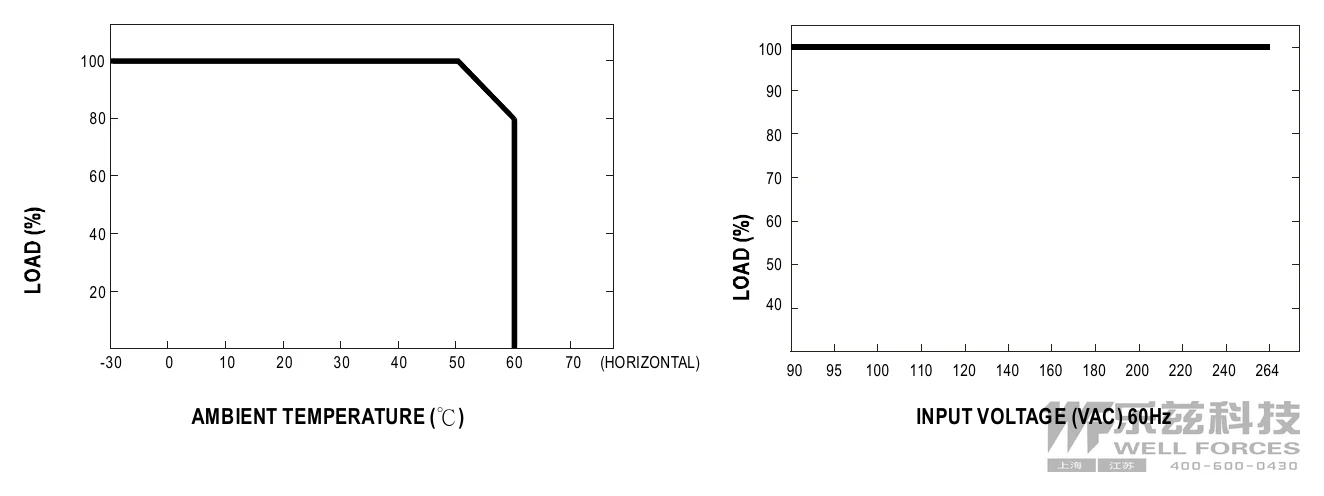

WORKING TEMP.: -30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0~50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1(except for 48V) approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A

OTHERS

MTBF: 711K hrs min. MIL-HDBK-217F(25℃)
DIMENSION: 125*50*31.5mm (L*W*H)
PACKING: 0.28Kg; 40pcs/12.02Kg/1.05CUFT

CONNECTOR

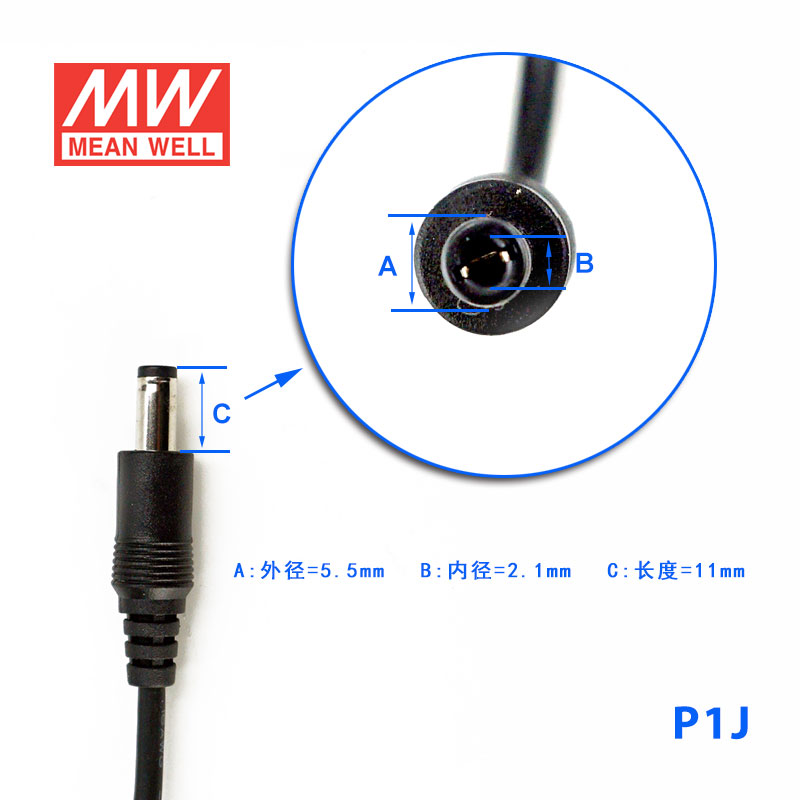

PLUG: Standard type P1J: 2.1φ * 5.5φ * 11mm, tuning fork type, center positive for stock ; Other type available by customer requested
CABLE: See page 2 ; Other type available by customer requested

测试条件与备注7

All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
DC voltage: The output voltage set at point measure by plug terminal & 50% load.
Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
Tolerance: includes set up tolerance, line regulation, load regulation.
Line regulation is measured from low line to high line at rated load.
The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives.
Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
