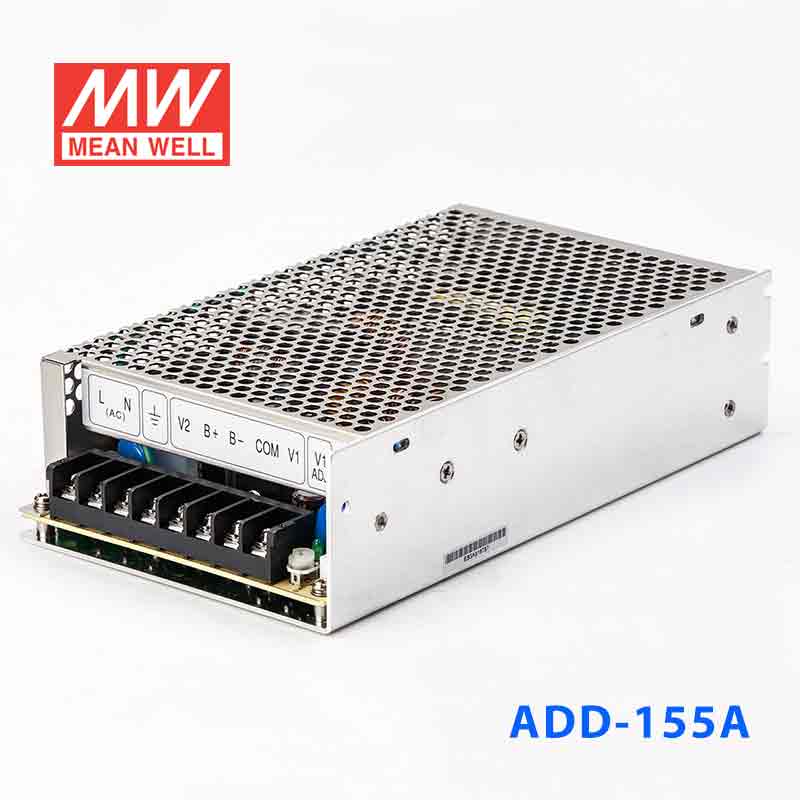

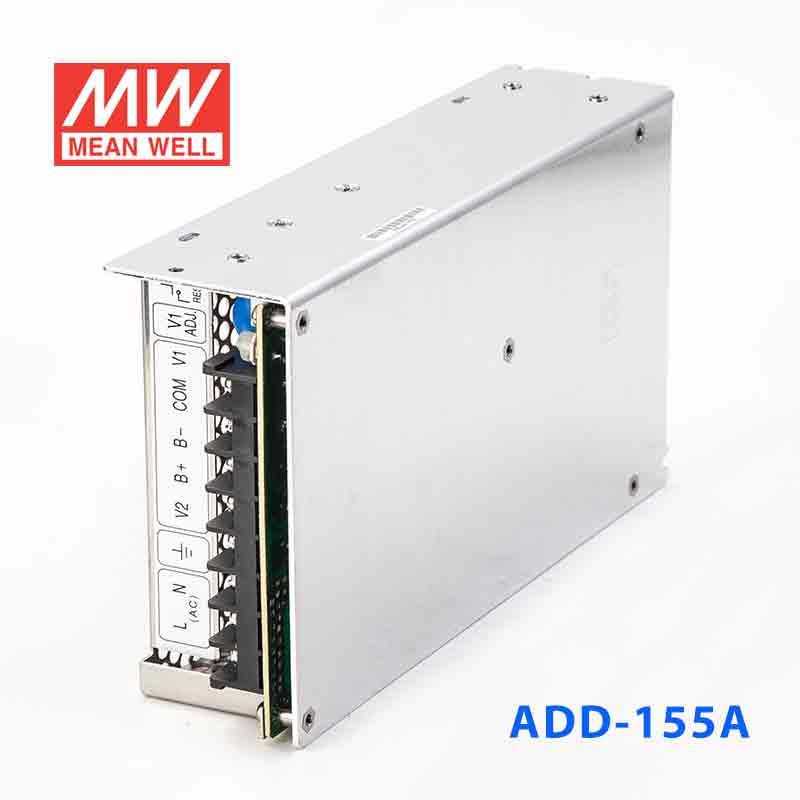

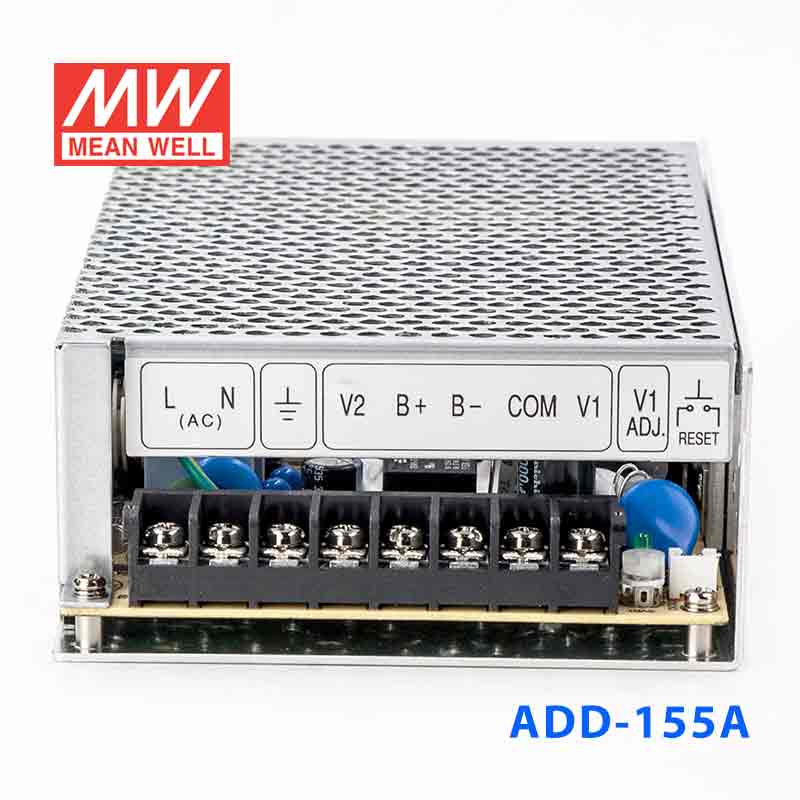

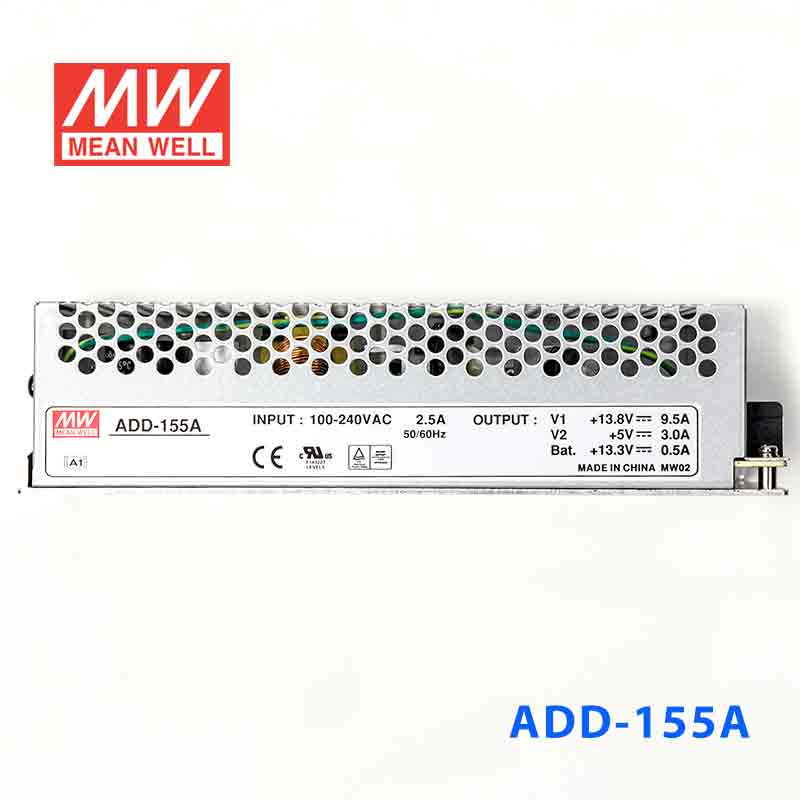

ADD-155A · 13.8V ＋5V 双路输出带浮充电不间断安防电源

Mean Well · Enclosed Switching Power Supply · 152.75W 13.8

输出电压: 13.8 V DC
额定功率: 152.8 W
输出电流: 9.5 A

¥369.60含 13% 增值税停产特价

选择型号 — ADD-155系列ADD-155A

ADD-155A停产152.8W · 13.8V · 9.5A

ADD-155B152.8W · 27.6V · 4.5A ADD-155C149.9W · 54V · 2.3A

无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 ADD-155A，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE TÜV UL EAC可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Battery low/battery polarity protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC 67KHz, PWM 134KHz
2 years warranty

规格参数

ADD-155A参数摘自官方规格书（2011-06-16 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2 CH3
DC VOLTAGE: CH1: 13.8V CH2: 5V CH3: 13.3V
RATED CURRENT: CH1: 9.5A CH2: 3A CH3: 0.5A
CURRENT RANGE: CH1: 0 ~ 10.5A CH2: 0 ~ 3A CH3: --------
RATED POWER: 152.75W
RIPPLE & NOISE (max.)^注Note.2: CH1: 150mVp-p CH2: 100mVp-p CH3: --------
VOLTAGE ADJ. RANGE: CH1: 12 ~ 14.5V
VOLTAGE TOLERANCE^注Note.3: CH1: ±2.0% CH2: ±3.0% CH3: --------
LINE REGULATION: CH1: ±1.0% CH2: ±0.5% CH3: --------
LOAD REGULATION: CH1: ±1.0% CH2: ±2.0% CH3: --------
SETUP, RISE TIME: 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.): 24ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.92 at full load
EFFICIENCY (Typ.): 78%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE: CH1:15.87 ~ 18.63V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY LOW: 10V±0.8V

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃) on +5V output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

OTHERS

MTBF: 164.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*110*50mm (L*W*H)
PACKING: 1Kg; 16pcs/16Kg/0.95CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

技术图纸

典型应用

■ 典型应用

安防监控系统 — 为网络摄像机、DVR/NVR录像机、视频监控中心提供不间断电源。
门禁控制系统 — 稳定供电门禁控制器、电磁锁、读卡器及出入口管理设备。
报警系统 — 保障防盗报警主机、红外探测器、声光报警器等设备持续运行。
应急照明系统 — 为消防应急灯、疏散指示灯、安全出口标志灯提供备用电源。
