明纬 MEAN WELL · ADS系列系列

明纬官方正品ADS系列系列3 年保修

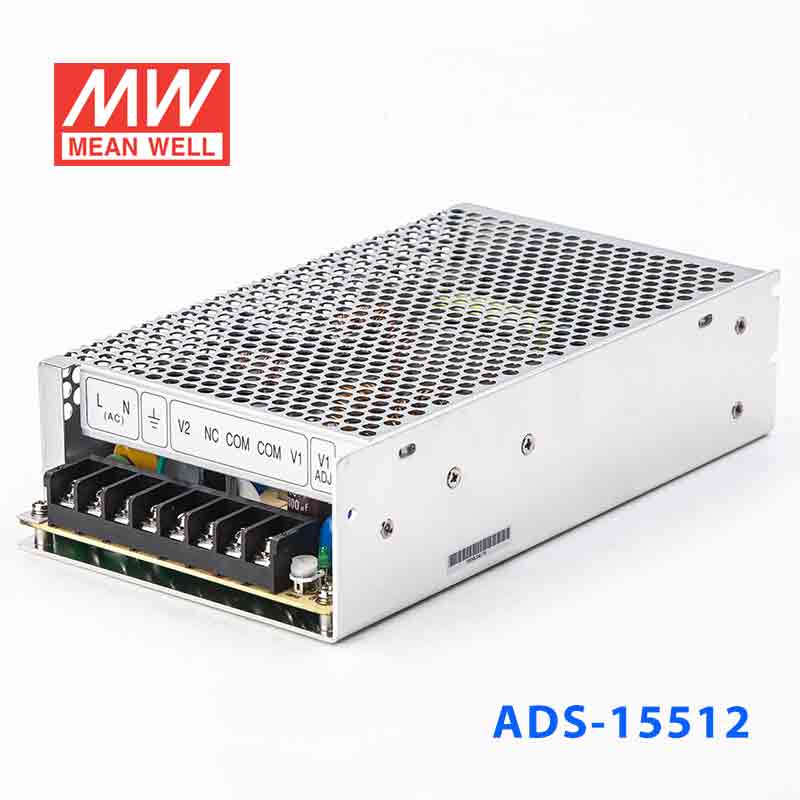

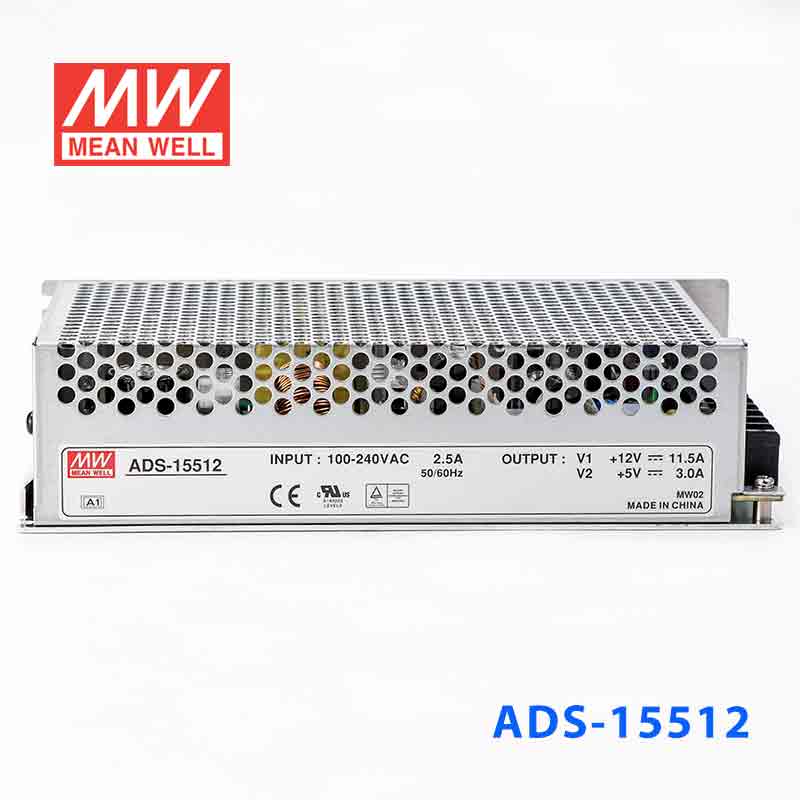

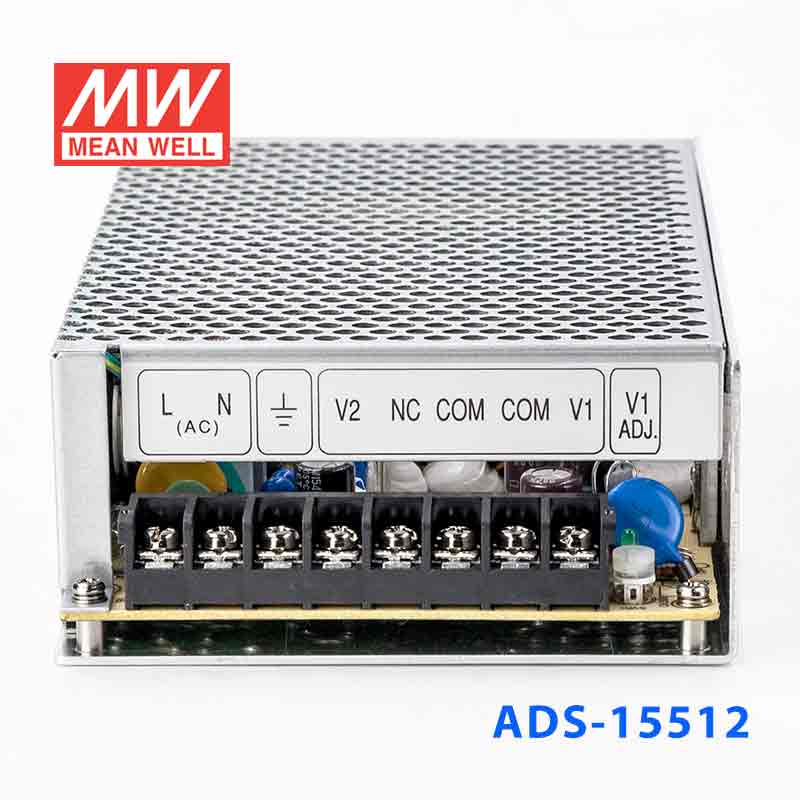

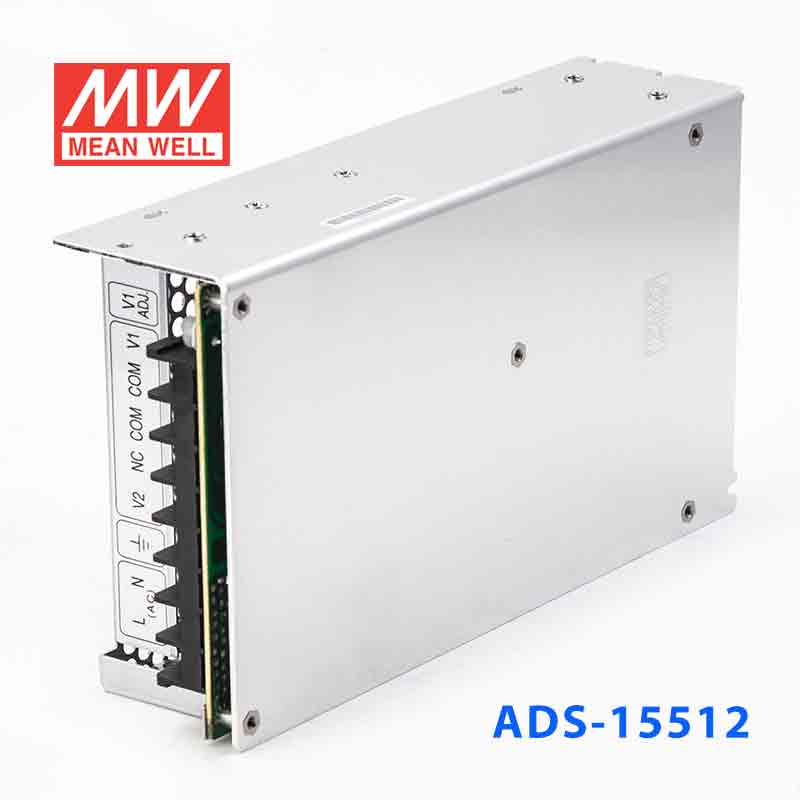

ADS-15512 · 附加5V 双路电源

Mean Well · Enclosed Switching Power Supply · 153W 12

输出电压: 12 V DC
额定功率: 153 W
输出电流: 11.5 A

¥341.60含 13% 增值税停产特价

选择型号 — ADS-155系列ADS-15512

ADS-15512停产153W · 12V · 11.5A

ADS-15524154.2W · 24V · 5.8A ADS-15548154.2W · 48V · 2.9A

无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 ADS-15512，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE EAC TÜV UL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC 67KHz, PWM 134KHz
2 years warranty

规格参数

ADS-15512参数摘自官方规格书（2011-06-16 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2
DC VOLTAGE CH1: 12V
DC VOLTAGE CH2: 5V
RATED CURRENT CH1: 11.5A
RATED CURRENT CH2: 3A
CURRENT RANGE CH1: 0 ~ 12.5A
CURRENT RANGE CH2: 0 ~ 3A
RATED POWER: 153W
RIPPLE & NOISE (max.) CH1^注Note.2: 150mVp-p
RIPPLE & NOISE (max.) CH2^注Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: CH1:10.8 ~ 13.2V
VOLTAGE TOLERANCE CH1^注Note.3: ±2.0%
VOLTAGE TOLERANCE CH2^注Note.3: ±3.0%
LINE REGULATION CH1: ±0.5%
LINE REGULATION CH2: ±0.5%
LOAD REGULATION CH1: ±1.0%
LOAD REGULATION CH2: ±2.0%
SETUP, RISE TIME: 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.): 24ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.92
EFFICIENCY (Typ.): 77%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is reoved
OVER VOLTAGE: CH1:13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

OTHERS

MTBF: 202.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*110*50mm (L*W*H)
PACKING: 1Kg; 16pcs/16Kg/0.95CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

技术图纸

典型应用

■ 典型应用

安防监控系统 — 监控摄像头、DVR/NVR录像机、门禁控制器、报警主机供电及备电。
应急照明系统 — 消防应急灯、疏散指示灯、安全出口标志灯的不间断供电。
楼宇对讲系统 — 可视对讲主机、门口机、室内分机的主供电与备用电源。
通讯设备 — 小型通信基站、网络设备机房、光纤设备的UPS供电。
工业控制 — PLC控制器、传感器网络、数据采集系统的双路供电需求。
