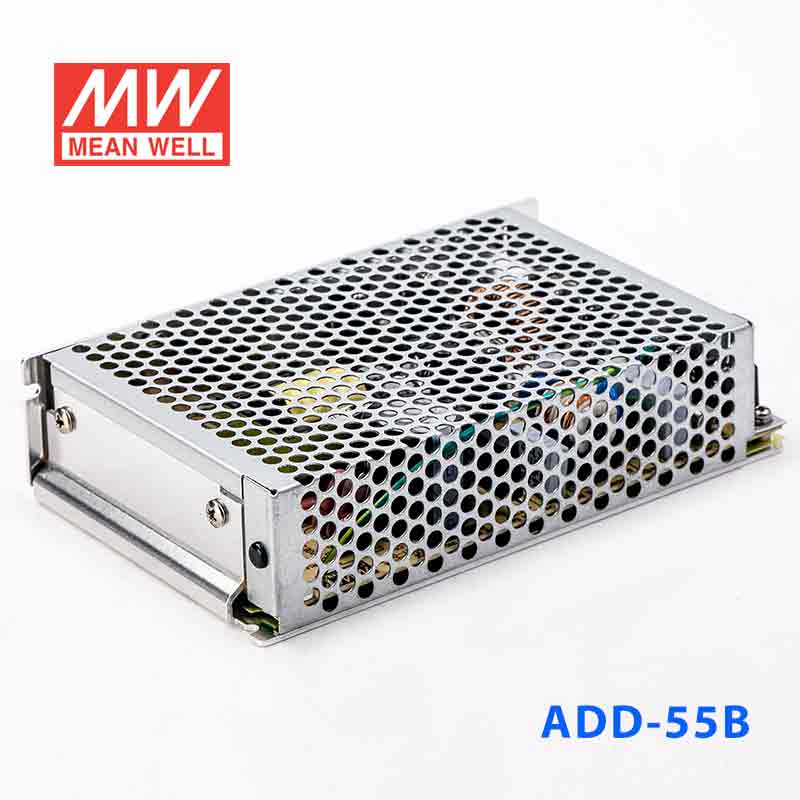

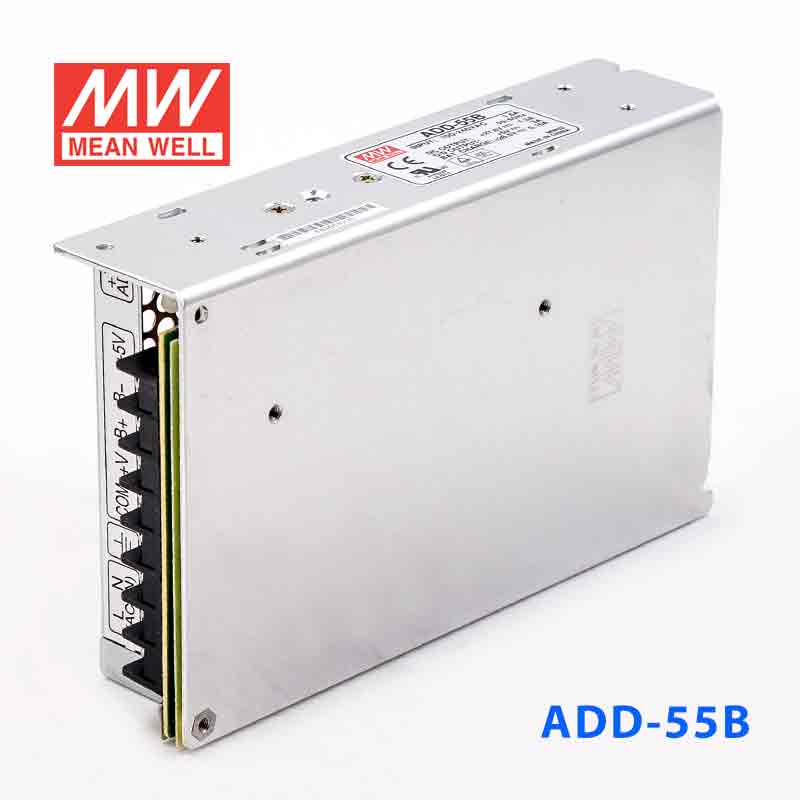

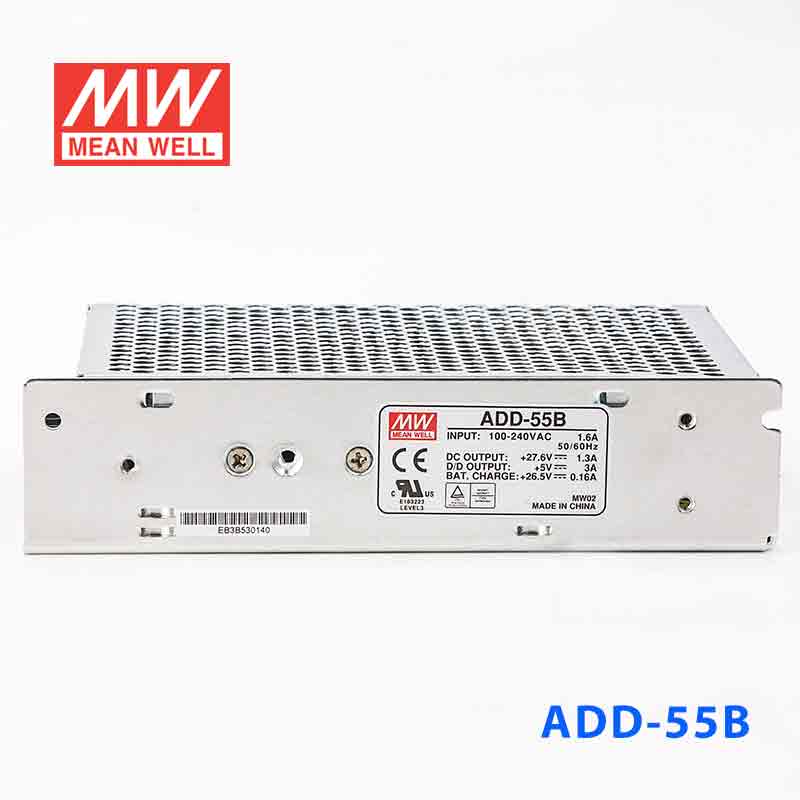

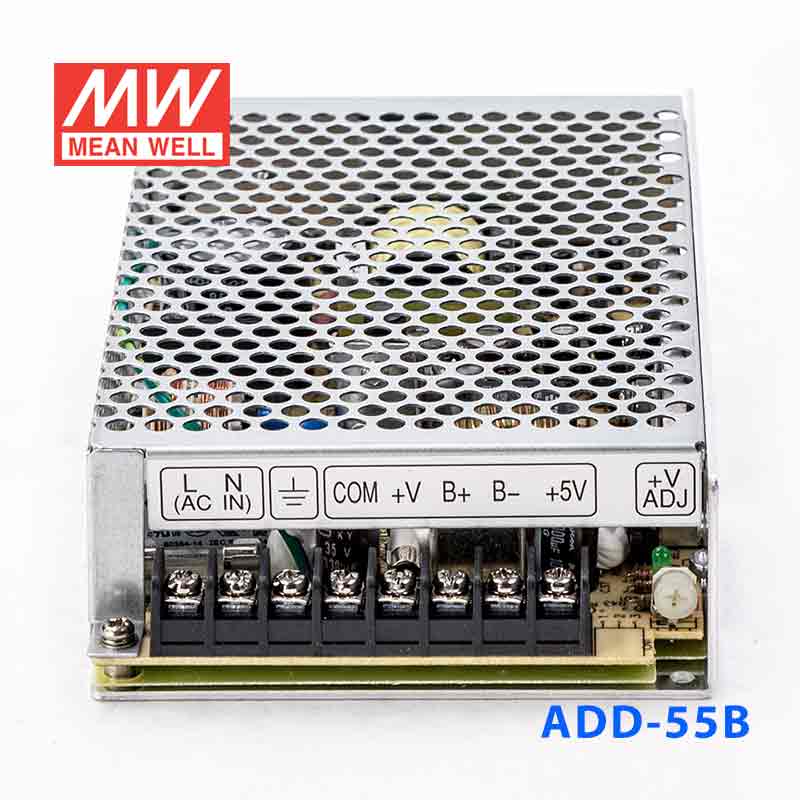

ADD-55B · 27.6V ＋5V 双路输出带浮充电不间断安防电源

Mean Well · Enclosed Switching Power Supply · 55.12W 27.6

输出电压: 27.6 V DC
额定功率: 55.1 W
输出电流: 1.3 A

¥200.20市场价 ¥231.40含 13% 增值税

选择型号 — ADD-55系列ADD-55B

ADD-55A52.6W · 13.8V · 2.5A

ADD-55B55.1W · 27.6V · 1.3A

即将售罄无货

现货 · 上海仓 1 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 ADD-55B，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE TÜV UL EAC可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45KHz
2 years warranty

规格参数

ADD-55B参数摘自官方规格书（2011-06-16 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2 CH3
DC VOLTAGE CH1: 27.6V
DC VOLTAGE CH2: 5V
DC VOLTAGE CH3: 26.5V
RATED CURRENT CH1: 1.3A
RATED CURRENT CH2: 3A
RATED CURRENT CH3: 0.16A
CURRENT RANGE CH1: 0 ~ 2A
CURRENT RANGE CH2: 0 ~ 4A
CURRENT RANGE CH3: --------
RATED POWER: 55.12W
RIPPLE & NOISE (max.) CH1^注Note.2: 150mVp-p
RIPPLE & NOISE (max.) CH2^注Note.2: 150mVp-p
RIPPLE & NOISE (max.) CH3^注Note.2: --------
VOLTAGE ADJ. RANGE: CH1: 24 ~ 29V
VOLTAGE TOLERANCE CH1^注Note.3: ±1.0%
VOLTAGE TOLERANCE CH2^注Note.3: ±3.0%
VOLTAGE TOLERANCE CH3^注Note.3: --------
LINE REGULATION CH1: ±1.0%
LINE REGULATION CH2: ±0.5%
LINE REGULATION CH3: --------
LOAD REGULATION CH1: ±1.0%
LOAD REGULATION CH2: ±0.5%
LOAD REGULATION CH3: --------
SETUP, RISE TIME: 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 74%
AC CURRENT (Typ.): 1.6A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE: CH1:28.98 ~ 37.26V Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

DC ALARM SIGNAL(OPTIONAL): AC fail CN1 PIN2 Battery low under charge voltage 82.5%±2% CN1 PIN1 Normal 0.8V max. Abnormal 5V±0.5V

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃) on CH1 output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

OTHERS

MTBF: 241.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.57Kg; 24pcs/13.7Kg/0.75CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

技术图纸

典型应用

■ 典型应用

安防监控系统 — 网络摄像机、DVR/NVR录像机、视频编码器、监控传输设备
门禁控制系统 — 门禁控制器、电磁锁、读卡器、出入口管理设备
应急照明系统 — 应急指示灯、疏散照明、备用照明设备
报警系统 — 报警主机、探测器、警号、联网模块等安防报警设备
