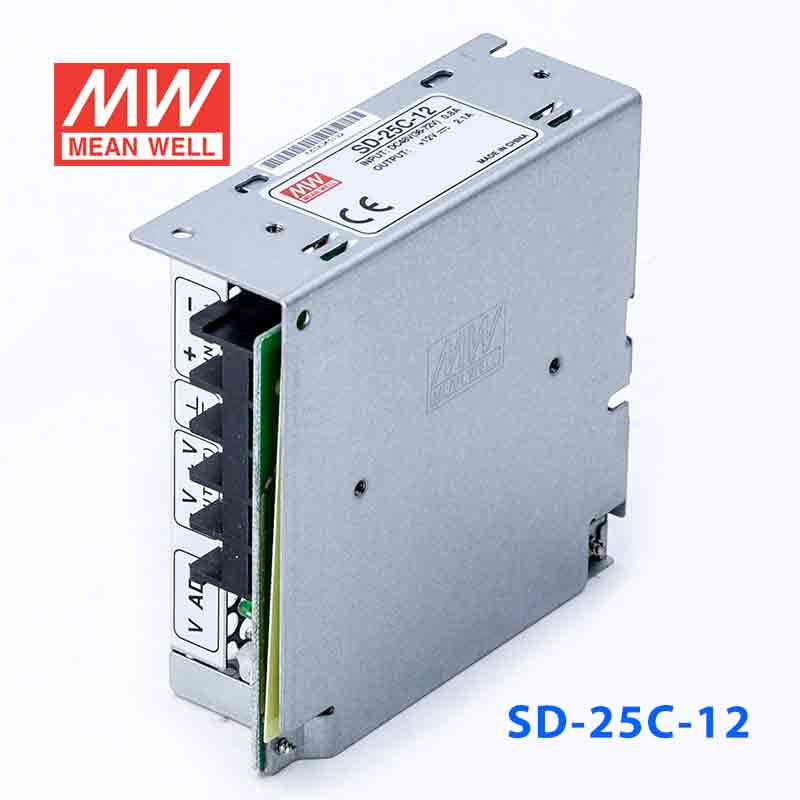

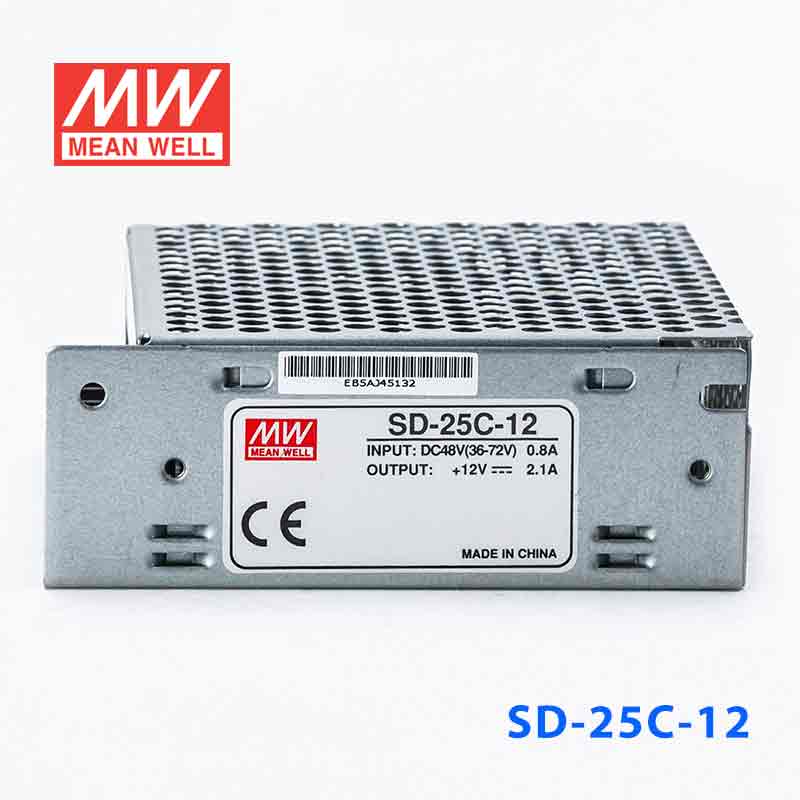

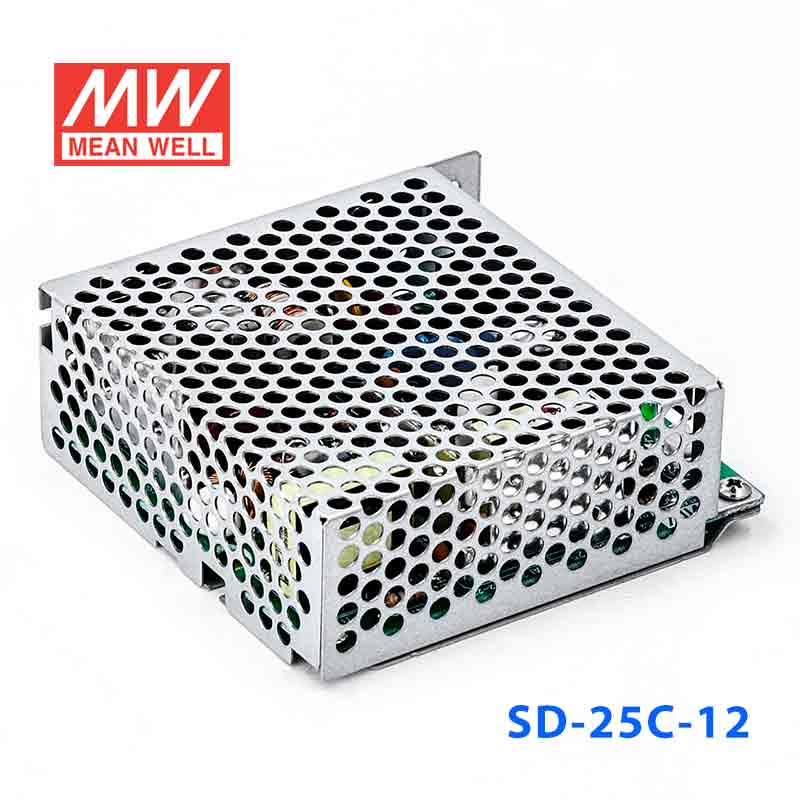

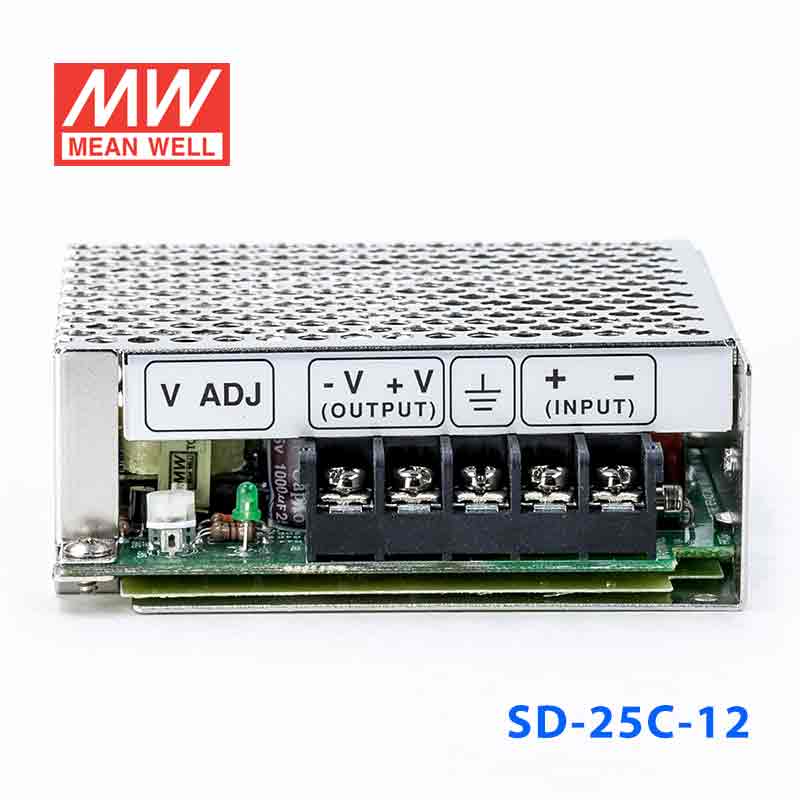

SD-25C-12 · 36~ 入有外壳 DC DC转换电源

Mean Well · Enclosed Switching Power Supply · 25.2W 12

输出电压: 12 V DC
额定功率: 25.2 W
输出电流: 2.1 A

¥127.40市场价 ¥137.80含 13% 增值税

选择型号 — SD-25系列SD-25C-12

SD-25A-525W · 5V · 5A SD-25A-1225.2W · 12V · 2.1A SD-25A-2426.4W · 24V · 1.1A SD-25B-525W · 5V · 5A SD-25B-1225.2W · 12V · 2.1A SD-25B-2426.4W · 24V · 1.1A SD-25C-525W · 5V · 5A

SD-25C-1225.2W · 12V · 2.1A

SD-25C-2426.4W · 24V · 1.1A

现货即将售罄无货

现货 · 上海仓 2 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 SD-25C-12，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CE EAC EMCUKCAUK可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

2:1 wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83KHz
Low cost
High reliability
2 years warranty

规格参数

SD-25C-12参数摘自官方规格书（2012-09-12 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 2.1A
CURRENT RANGE: 0 ~ 2.1A
RATED POWER: 25.2W
RIPPLE & NOISE (max.)^注Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 11 ~ 16VDC
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.3%
SETUP, RISE, HOLD UP TIME: 2.5s, 50ms, ------ at full load

INPUT

VOLTAGE RANGE: A:9.2 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC
EFFICIENCY (Typ.): 78%
DC CURRENT: 0.8A/48V

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 16.8 ~ 20V/10% load Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Design refer to LVD
WITHSTAND VOLTAGE: I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,6,8, EN55024,heavy industry level, criteria A

OTHERS

MTBF: 374.3K hrs min.(SD-25A) 365.9K hrs min.(SD-25B) 377.5K Hrs min.(SD-25C) MIL-HDBK-217F (25℃)
DIMENSION: 99*97*36mm (L*W*H)
PACKING: 0.38Kg; 45pcs/17.8Kg/0.9CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

技术图纸

典型应用

■ 典型应用

电池备援系统 — 为应急照明、安防系统等提供稳定直流电源。
交通运输领域 — 适用于电动车、船舶、轨道交通等车载设备供电。
工业自动化控制 — 为PLC、传感器、执行器等工业控制设备供电。
通信设备 — 为基站、路由器、交换机等通信设备提供可靠电源。
仪器仪表 — 为各类测试设备、测量仪器提供稳定电源。
