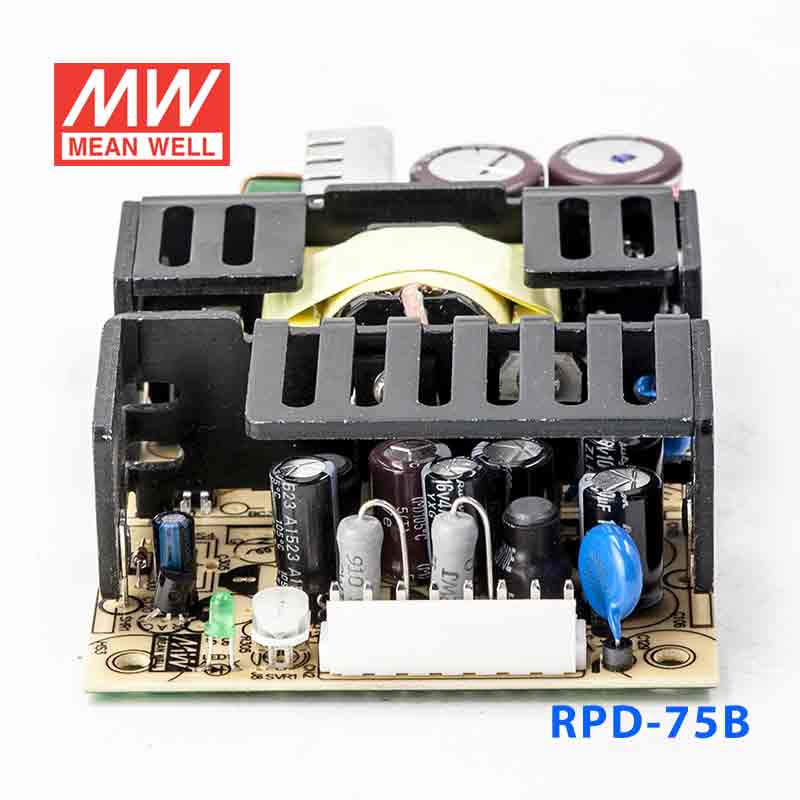

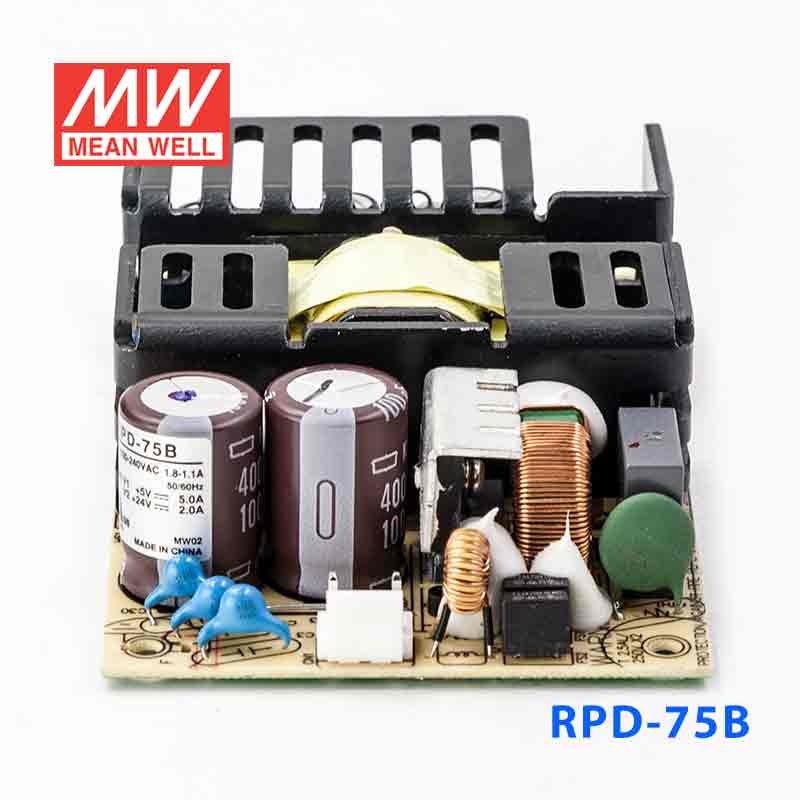

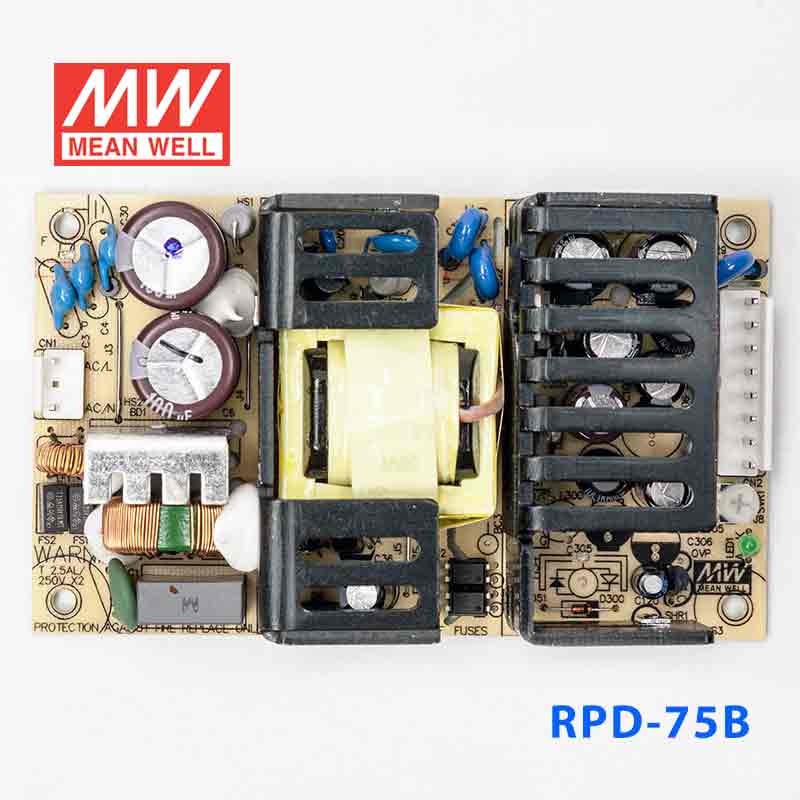

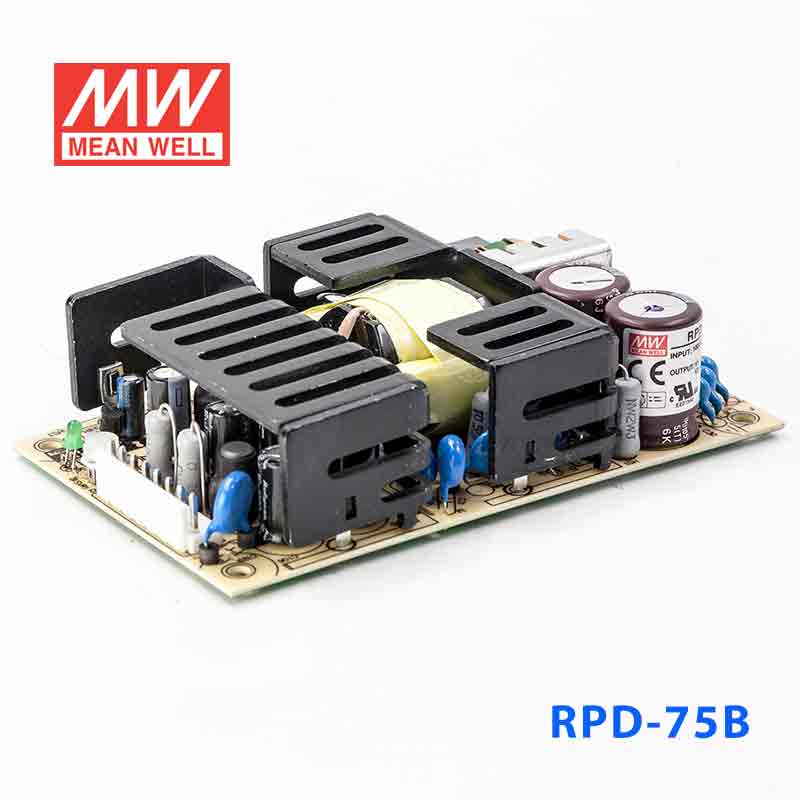

RPD-75B · + + 双路输出微漏电低空载损耗医用无外壳开关电源

Mean Well · Enclosed Switching Power Supply · 73W 5

输出电压: 5 V DC
额定功率: 73 W
输出电流: 5 A

¥153.00含 13% 增值税

选择型号 — RPD-75系列RPD-75B

RPD-75A71W · 5V · 7A

RPD-75B73W · 5V · 5A

现货即将售罄

现货 · 上海仓 8 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 RPD-75B，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CBCEEACTÜVUL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Low leakage current <100µA
Protections: Short circuit / Overload / Over voltage
Free air convection for rated power and 23.5CFM forced air convection for peak load
Medical safety approved (2 x MOPP between primary to secondary)(Note.8)
Fixed switching frequency at 65KHz
3 years warranty

规格参数

RPD-75B参数摘自官方规格书（2012-11-28 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2
DC VOLTAGE: CH1: 5V CH2: 24V
RATED CURRENT: CH1: 5A CH2: 2A
CURRENT RANGE: CH1: 1 ~ 6.8A CH2: 0.2 ~ 2.7A
RATED POWER: 73W
PEAK LOAD (23.5CFM): 98.8W
RIPPLE & NOISE (max.)^注Note.2: CH1: 80mVp-p CH2: 200mVp-p
VOLTAGE ADJ. RANGE: CH1: 4.75 ~ 5.5V
VOLTAGE TOLERANCE^注Note.3: CH1: ±2.0% CH2: ±6.0%
LINE REGULATION: CH1: ±0.5% CH2: ±1.0%
LOAD REGULATION: CH1: ±1.5% CH2: ±3.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 79%
AC CURRENT (Typ.): 1.5A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.): COLD START 25A/115VAC 50A/230VAC
LEAKAGE CURRENT^注Note.7: Earth leakage current < 150µA/264VAC , Touch current < 100µA/264VAC

PROTECTION

OVERLOAD: 140 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

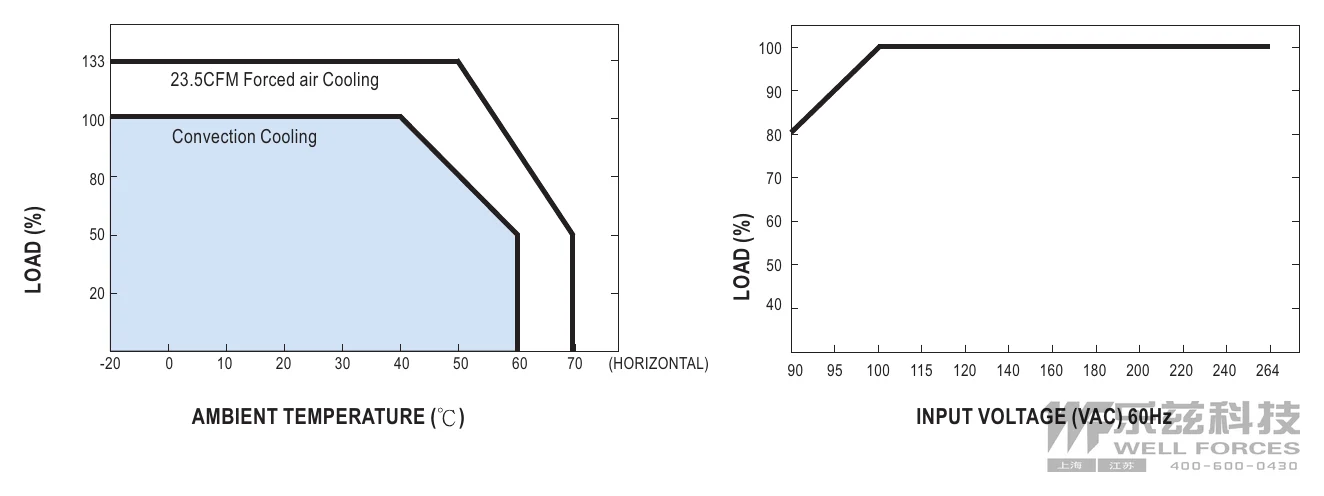

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11), EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61000-6-2, EN61204-3, heavy industry level, EN61204-3 medical level, criteria A

OTHERS

MTBF: 569.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76.2*31mm (L*W*H)
PACKING: 0.25Kg; 63pcs/16.7Kg/1.35CUFT

测试条件与备注8

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
Heat Sink HS1,HS2,HS3 can not be shorted.
Touch current was measured from primary input to DC output.
Suitable for BF application with appropriate system consideration.

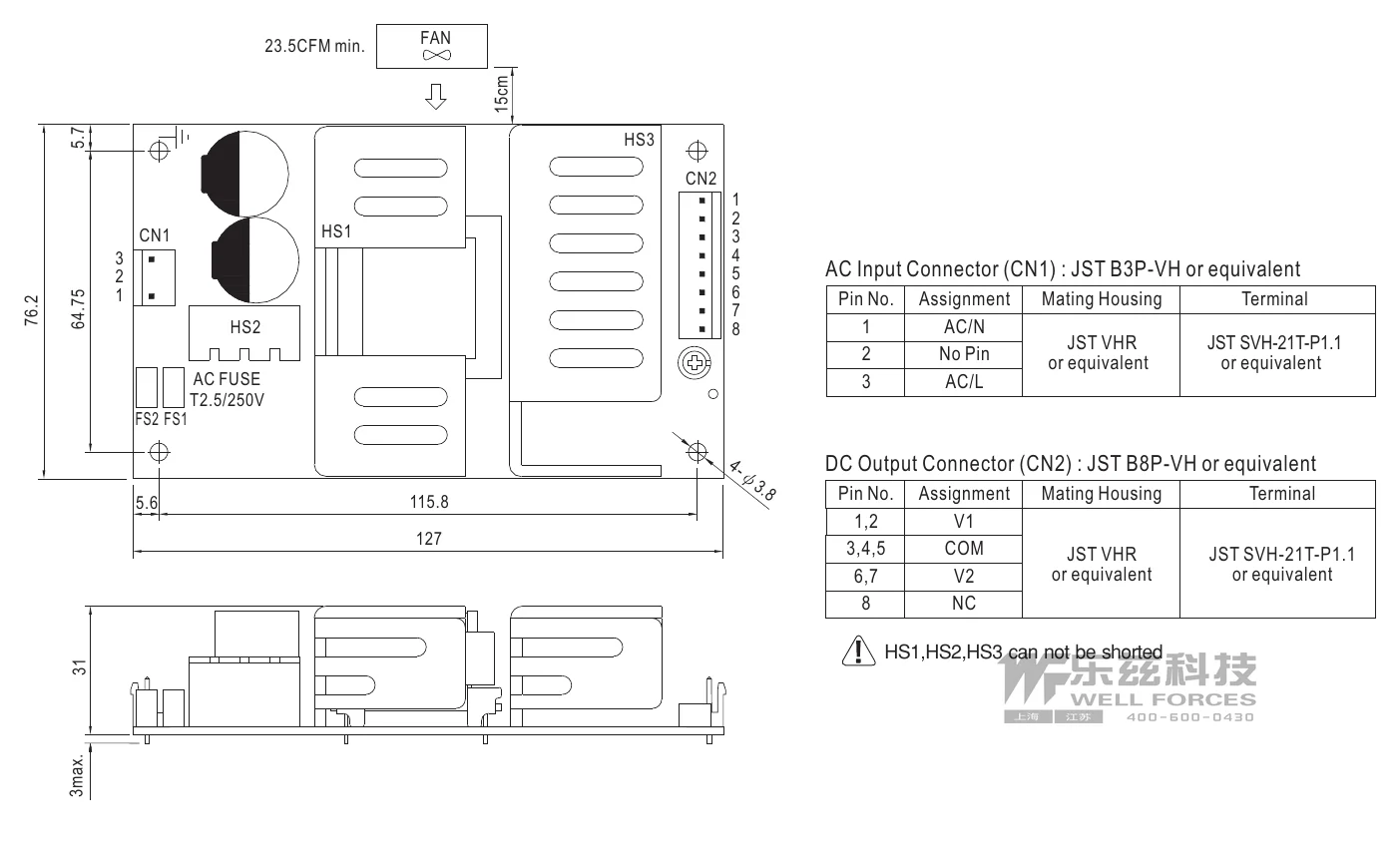

技术图纸
