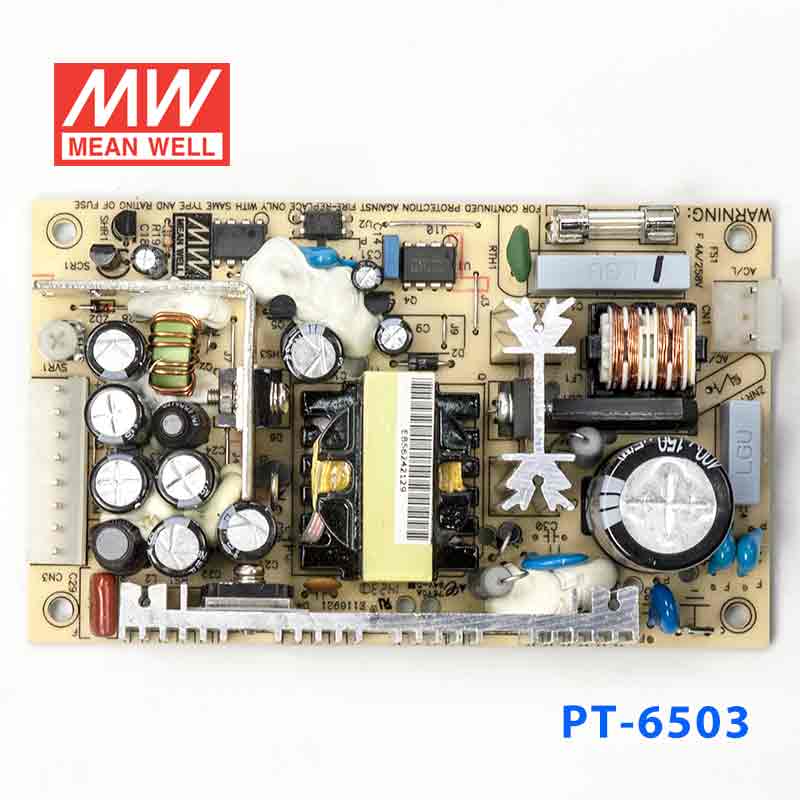

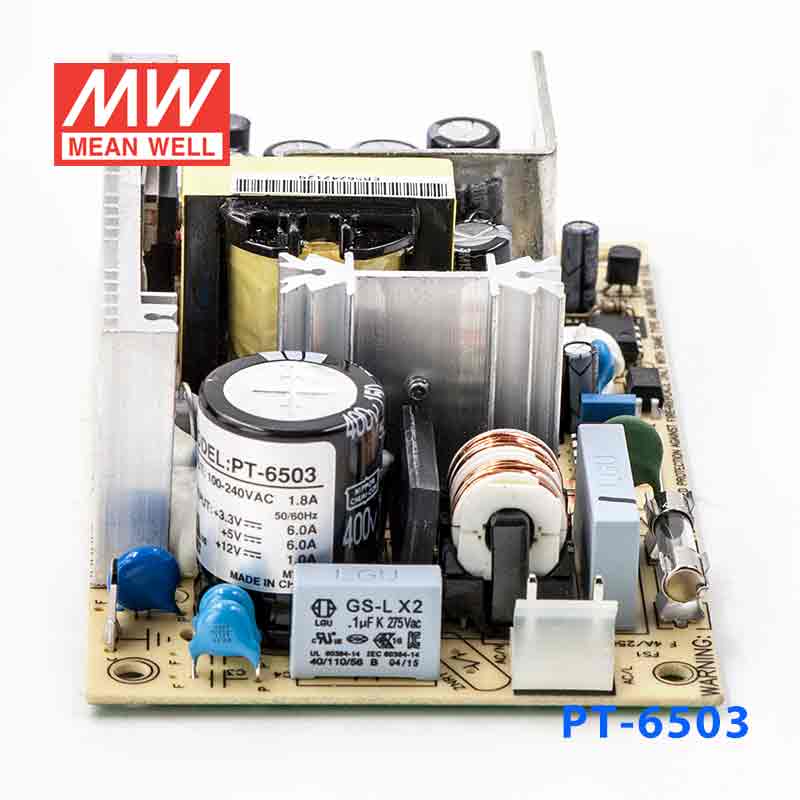

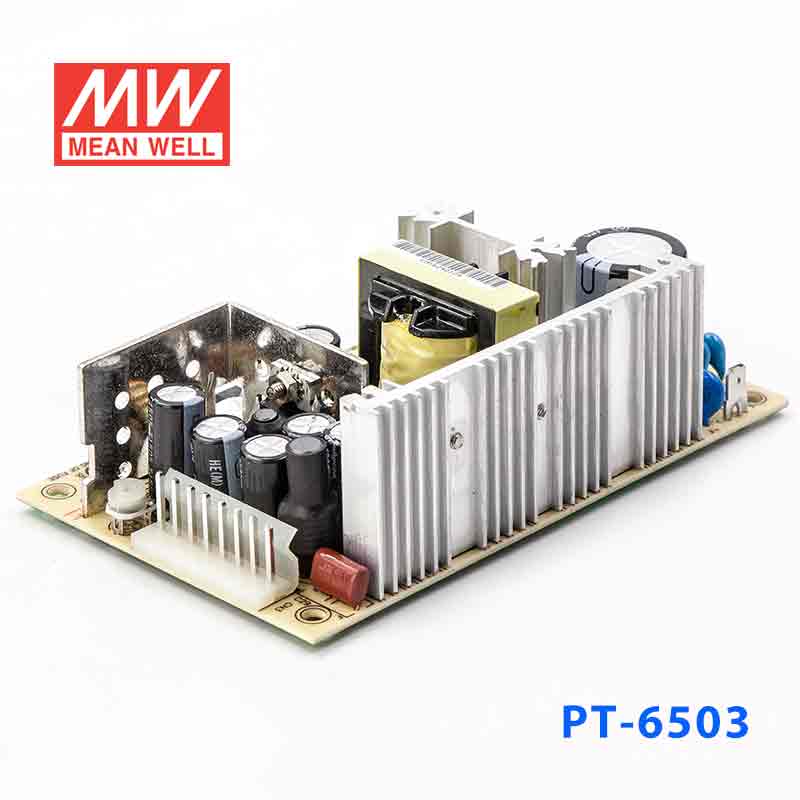

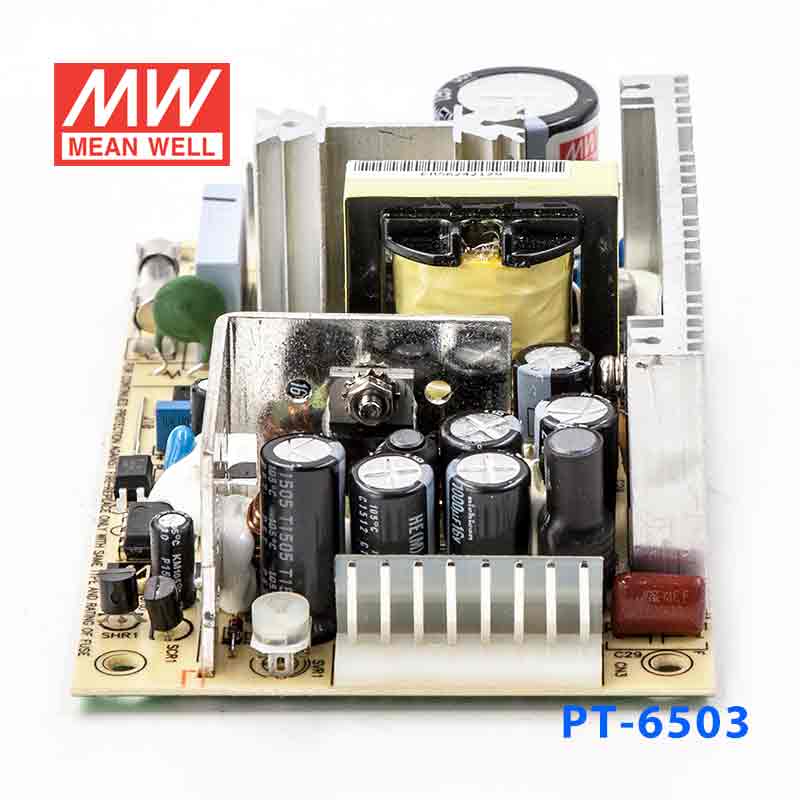

PT-6503 · + + 三路输出PCB板电源

Mean Well · Enclosed Switching Power Supply · 61.8W 5

输出电压: 5 V DC
额定功率: 61.8 W
输出电流: 6 A

¥133.00含 13% 增值税

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 PT-6503，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE EAC TÜV UL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 65KHz
2 years warranty

规格参数

PT-6503参数摘自官方规格书（2011-08-18 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2 CH3
DC VOLTAGE: CH1: 3.3V CH2: 5V CH3: 12V
RATED CURRENT: CH1: 6A CH2: 6A CH3: 1A
CURRENT RANGE: CH1: 0 ~ 7A CH2: 0.2 ~ 10A CH3: 0 ~ 1.2A
RATED POWER: Total power max. 61.8W(CH1+CH2 max. 54W)
RIPPLE & NOISE (max.)^注Note.2: CH1: 50mVp-p CH2: 50mVp-p CH3: 100mVp-p
VOLTAGE ADJ. RANGE: CH1: 3 ~ 3.6V
VOLTAGE TOLERANCE^注Note.3: CH1: ±3.0% CH2: +4,-2% CH3: ±8.0%
LINE REGULATION: CH1: ±1.0% CH2: ±1.0% CH3: ±2.0%
LOAD REGULATION: CH1: ±3.0% CH2: ±3.0% CH3: ±8.0%
SETUP, RISE TIME: 800ms, 50ms at full load
HOLD UP TIME (Typ.): 60ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 72%
AC CURRENT (Typ.): 1.8A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115V 40A/230V
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 120 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V on +5V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

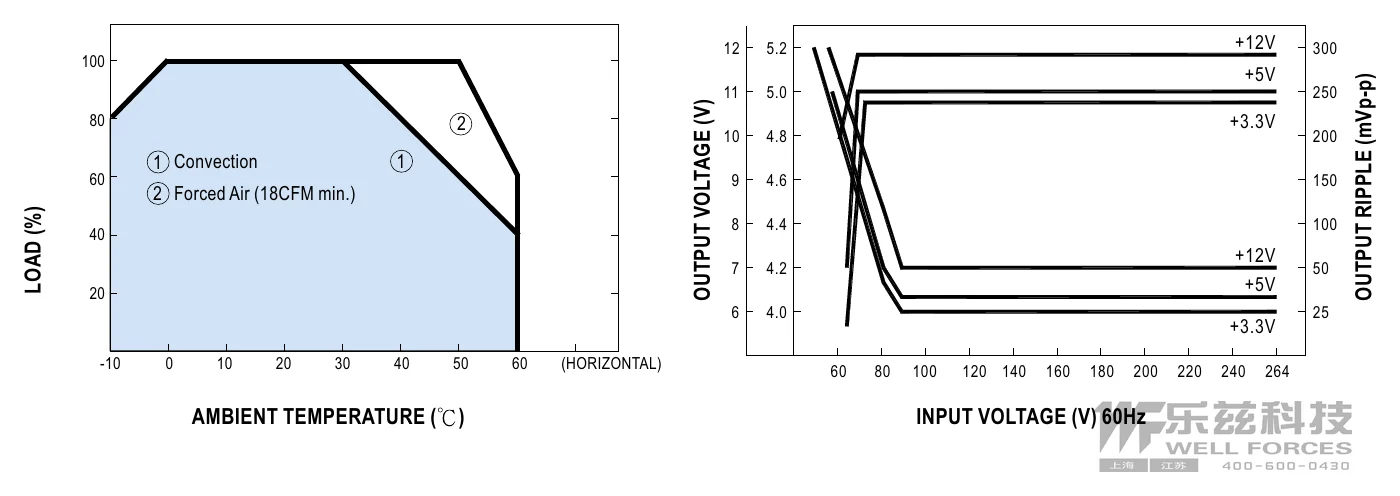

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1min.
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A

OTHERS

MTBF: 222Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*42mm (L*W*H)
PACKING: 0.28Kg; 54pcs/16.2Kg/1.35CUFT

测试条件与备注6

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Mounting holes M1 and M2 should be grounded for EMI purposes.
Heat Sink HS1,HS2 can not be shorted.

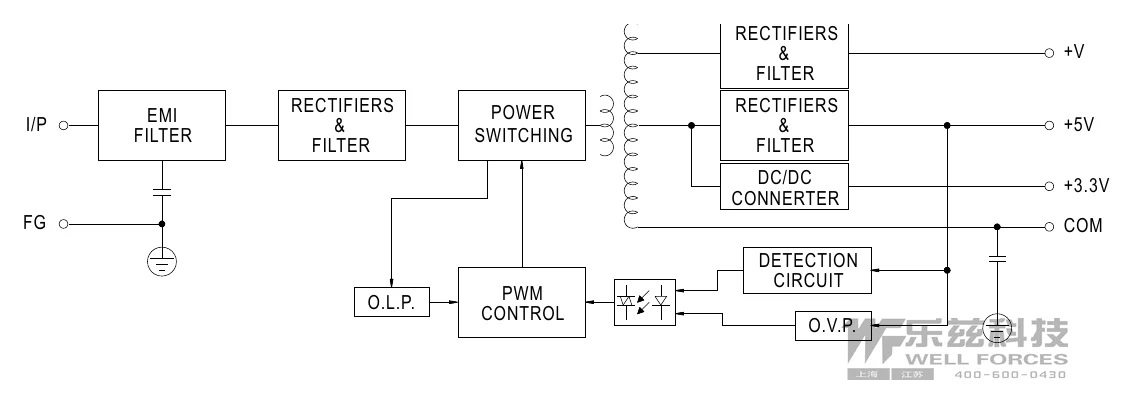

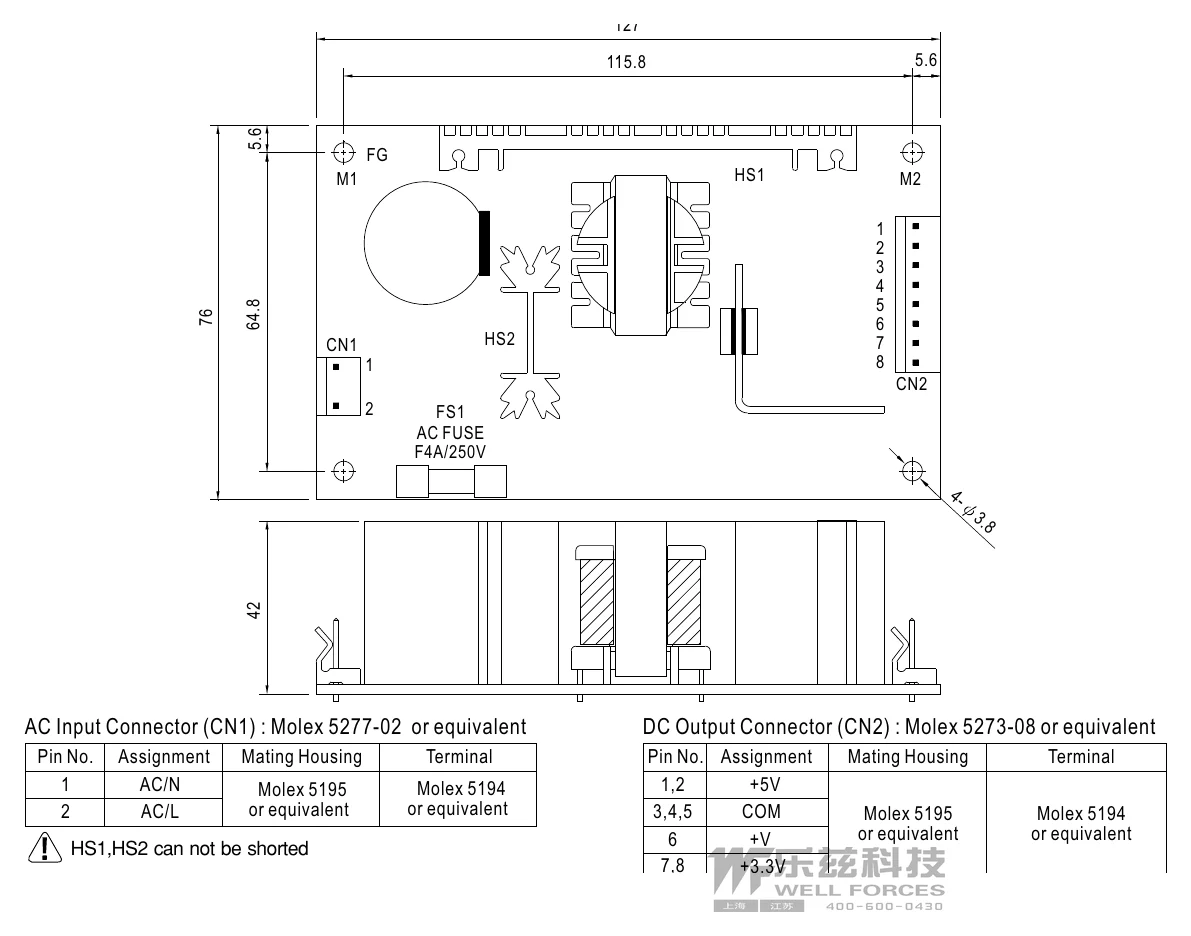

技术图纸

典型应用

■ 典型应用

工业自动化设备 — 适用于PLC控制系统、传感器供电、执行器驱动等。
通信设备 — 为网络交换机、路由器、基站辅助设备提供稳定电源。
测试测量仪器 — 实验室设备、工业检测仪器的内部电源模块。
安防监控系统 — 门禁系统、报警装置、监控摄像头等低功耗设备。
LED显示与照明 — 小型LED显示屏、广告牌及其他LED照明驱动。
