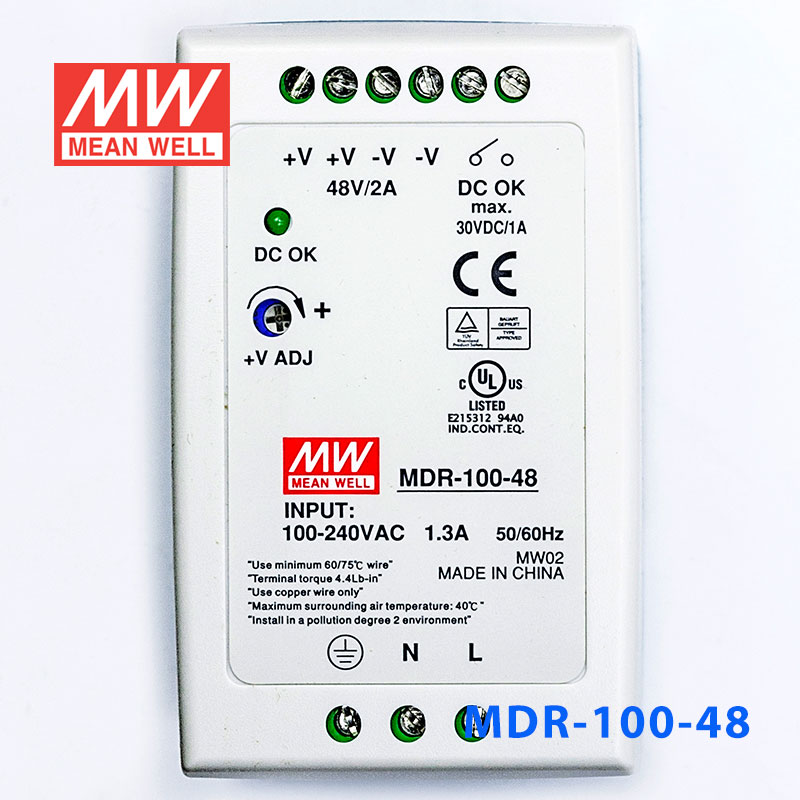

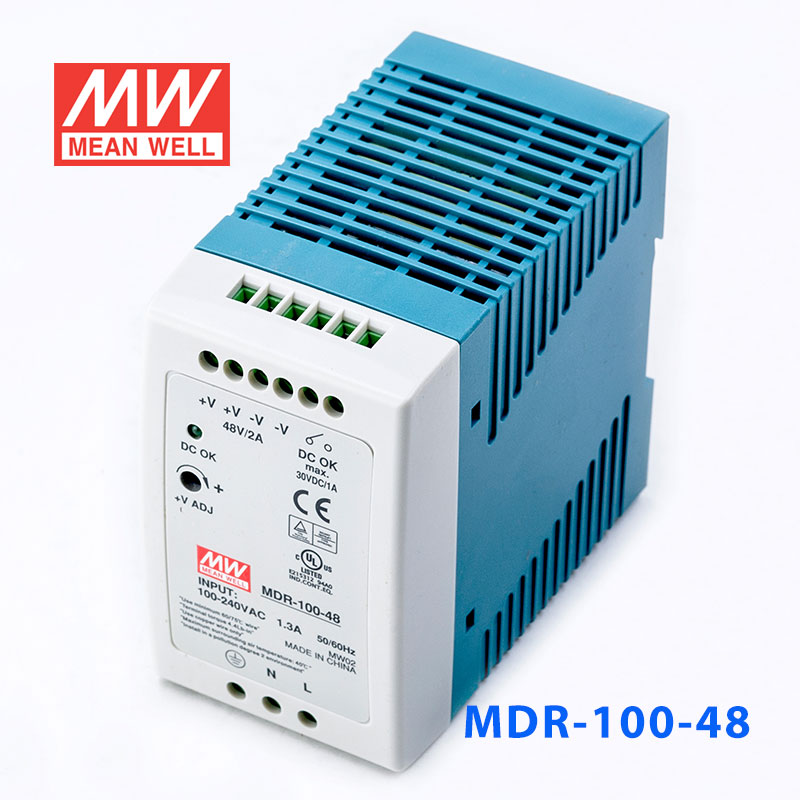

MDR-100-48 · 48V 单输出低空载损耗DIN导轨型电源

Mean Well · Enclosed Switching Power Supply · 96W 48

输出电压: 48 V DC
额定功率: 96 W
输出电流: 2 A

¥158.00市场价 ¥244.40含 13% 增值税

选择型号 — MDR-100系列MDR-100-48

MDR-100-1290W · 12V · 7.5A MDR-100-2496W · 24V · 4A

MDR-100-4896W · 48V · 2A

现货

现货 · 上海仓 68 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 MDR-100-48，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商BSMI CE EACRCMTÜV可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
ZCS/ZVS technology to reduce power dissipation
Cooling by free air convection

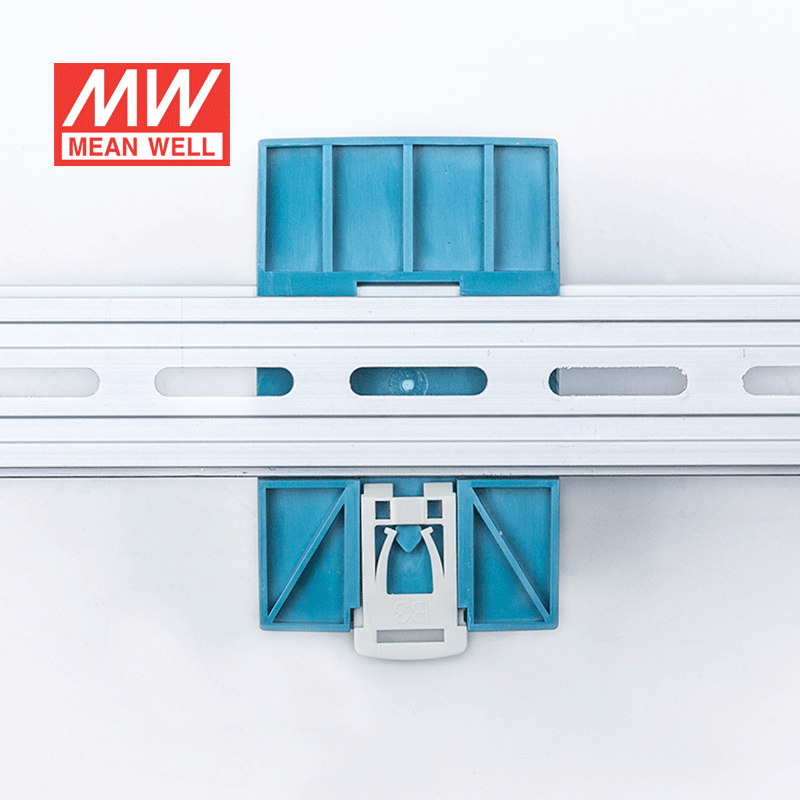

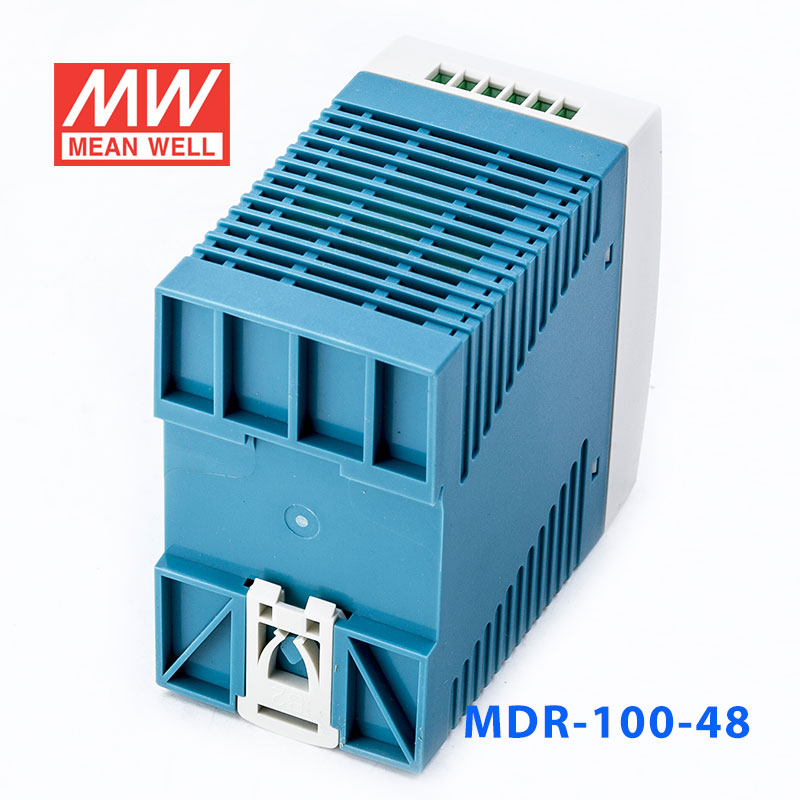

Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
No load power consumption<1W
LED indicator for power on
100% full load burn-in test
3 years warranty

规格参数

MDR-100-48参数摘自官方规格书（2015-10-10 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 2A
CURRENT RANGE: 0 ~ 2A
RATED POWER: 96W
RIPPLE & NOISE (max.)^注Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 56V
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^注Note.5: 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE^注Note.6: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, auto-recovery or re-power on to recover

FUNCTION

DC OK SIGNAL: Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL508, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A

OTHERS

MTBF: 346K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 55*90*100mm (W*H*D)
PACKING: 0.42Kg; 30pcs/13.6Kg/0.82CUFT

测试条件与备注6

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
Deating maybe needed under low input voltages, please check the derating curve for more detail.
