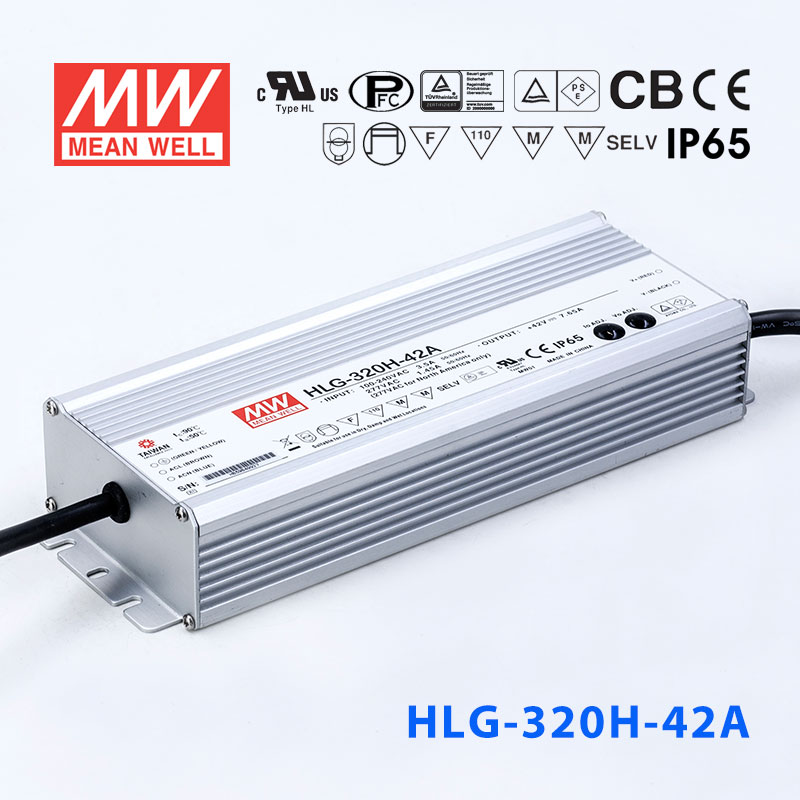

HLG-320H-42 · 强耐环境恒压+恒流PFC高效铝壳IP67防水LED电源

引线接线

输出电压: 42 V DC
额定功率: 320 W
输出电流: 7.65 A

¥501.00市场价 ¥651.30含 13% 增值税

选择型号 — HLG-320H系列HLG-320H-42

HLG-320H-12A264W · 12V · 22A HLG-320H-24320W · 24V · 13.34A HLG-320H-36320W · 36V · 8.9A HLG-320H-36A320W · 36V · 8.9A HLG-320H-36B320W · 36V · 8.9A HLG-320H-36C320W HLG-320H-36D320W

HLG-320H-42320W · 42V · 7.65A

HLG-320H-42A320W · 42V · 7.65A HLG-320H-42B320W · 42V · 7.65A HLG-320H-42C320W HLG-320H-42D320W HLG-320H-48320W · 48V · 6.7A HLG-320H-48A320W · 48V · 6.7A HLG-320H-48B320W · 48V · 6.7A HLG-320H-48C320W HLG-320H-48D320W HLG-320H-54320W · 54V · 5.95A HLG-320H-54A320W · 54V · 5.95A HLG-320H-54B320W · 54V · 5.95A HLG-320H-54C320W HLG-320H-54D320W

现货即将售罄无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 HLG-320H-42，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CCC CE EAC PSE可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

产品特点

Constant Voltage + Constant Current mode output
Metal housing with class Ⅰ design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

规格参数

HLG-320H-42参数摘自官方规格书（2019-12-10 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^注Note.4: 21 ~ 42V
RATED CURRENT: 7.65A
RATED POWER: 321.3W
RIPPLE & NOISE (max.)^注Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/C-Type only (via built-in potentiometer) 38 ~ 45V
CURRENT ADJ. RANGE: Adjustable for A/AB/C-Type only (via built-in potentiometer) 3.8 ~ 7.65A
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^注Note.6: 2500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^注Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.) (230Vac): 95%
EFFICIENCY (Typ.) (277Vac): 95%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^注Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 46.5 ~ 53V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 independent; GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type), EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 157.1K hrs min. MIL-HDBK-217F (25℃)
尺寸: 252*90*43.8mm (L*W*H)

测试条件与备注12

All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
Please refer to "DRIVING METHODS OF LED MODULE".
De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
Please refer to the warranty statement on MEAN WELL'S website at http://www.meanwell.com.
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

技术图纸

HLG-320H-42 LED模块驱动方式 — LED模块驱动方式左右滑动 · 点击查看大图

HLG-320H-42 输出负载vs温度 — 输出负载vs温度左右滑动 · 点击查看大图

HLG-320H-42 静态特性曲线 — 静态特性曲线左右滑动 · 点击查看大图

HLG-320H-42 总谐波失真特性曲线(THD) — 总谐波失真特性曲线(THD)左右滑动 · 点击查看大图

典型应用

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in Class Ⅰ, Division 2 hazardous (Classified) location.
