明纬 MEAN WELL · EPS系列系列

明纬官方正品EPS系列系列3 年保修

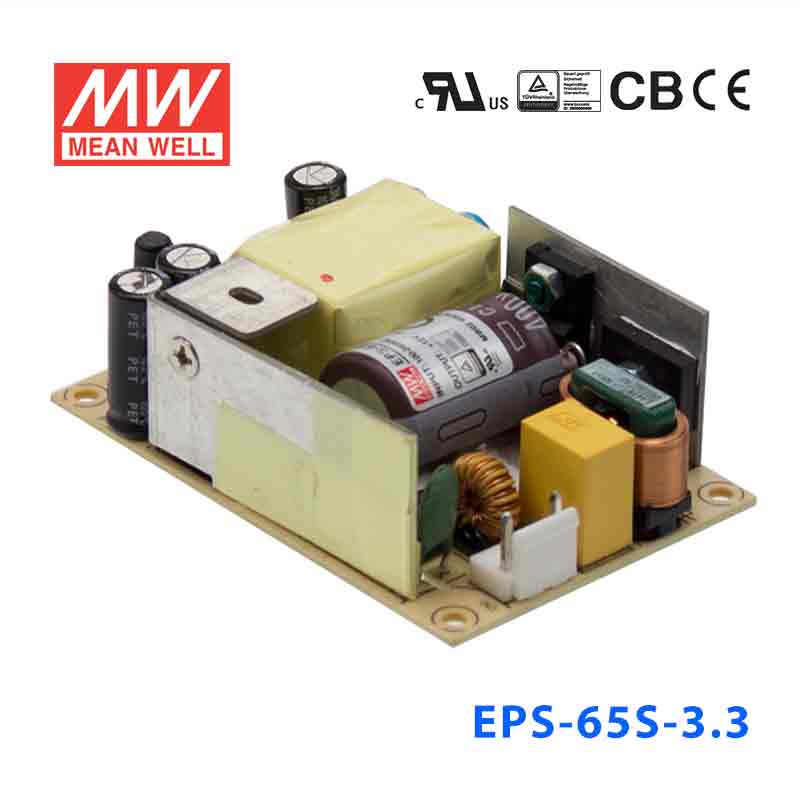

EPS-65S-3.3 · 3.3V 单路输出裸板高效低空载损耗开关电源

Mean Well · Enclosed Switching Power Supply · 33W 3.3

输出电压: 3.3 V DC
额定功率: 33 W
输出电流: 10 A

¥72.00市场价 ¥93.60含 13% 增值税

选择型号 — EPS-65S系列EPS-65S-3.3

EPS-65S- 536.3W

EPS-65S-3.333W · 3.3V · 10A

EPS-65S-7.560W · 7.5V · 8A EPS-65S-1265W · 12V · 5.42A EPS-65S-1565.1W · 15V · 4.34A EPS-65S-2465W · 24V · 2.71A EPS-65S-4865.3W · 48V · 1.36A

现货即将售罄无货

现货 · 上海仓 5 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 EPS-65S-3.3，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE EACTÜVUL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

EPS-65S is a 65W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-65S is able to be used for ClassⅡ(no FG) system design.

产品特点

3"×2" miniature size
Universal AC input / Full range
ClassⅡ(without FG) installations
No load power consumption<0.1W
High efficiency up to 91%
For 1U applications
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
-30~70℃wide range of operating temperature
Operating altitude up to 5000 meters
LED indicator for power on
3 years warranty

规格参数

EPS-65S-3.3参数摘自官方规格书（2019-11-19 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 11A
RATED POWER: 33W
PEAK LOAD(10sec.)^注Note.2: 36.3W
RIPPLE & NOISE (max.)^注Note.3: 80mVp-p
VOLTAGE ADJ.RANGE: 2.9~3.6V
VOLTAGE TOLERANCE^注Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 12ms / 115VAC at full load

INPUT

VOLTAGE RANGE^注Note.5: 80 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT (Typ.): 1.5A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.): COLD STAR 30A/115VAC 50A/230VAC
LEAKAGE CURRENT(max.): 0.25mA/264VAC

PROTECTION

OVERLOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 3.8~4.46V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
OPERATING ALTITUDE^注Note.6: 5000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 7)

SAFETY STANDARDS: UL 62368-1, TUV EN62368- 1 , EN60335-1, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032(CISPR32) Class B, EN61000-3-2,3, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, Heavy industry Level criteria A, EAC TP TC 020

OTHERS

MTBF: 959.1Khrs min. MIL-HDBK-217(25℃)
尺寸: 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
PACKING: 0.11Kg; 120pcs/14.2Kg/0.97CUFT

测试条件与备注7

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
Derating may be needed under low input voltages. Please check the derating curve for more details.
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power. (as available on http://www.meanwell.com)

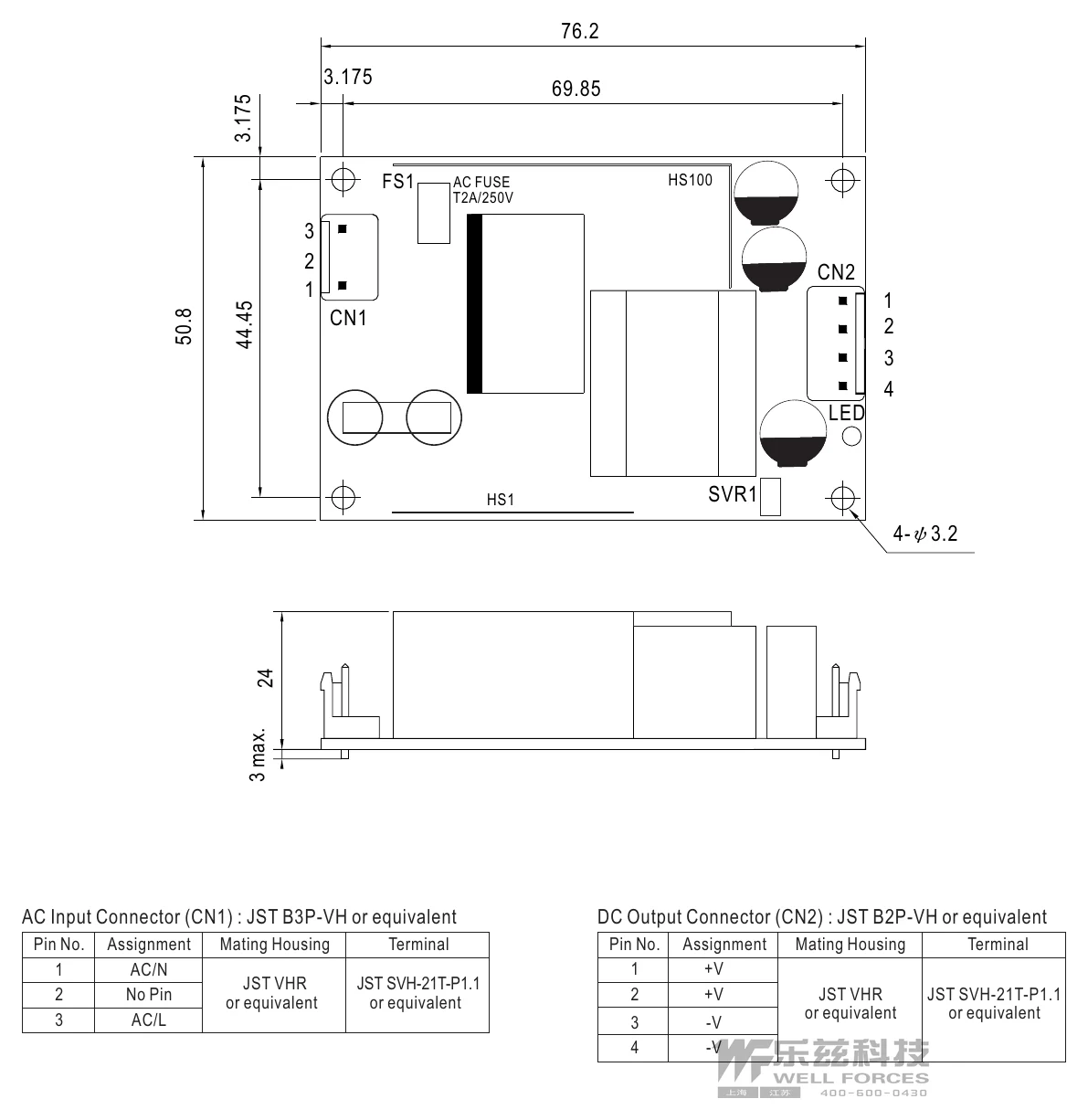

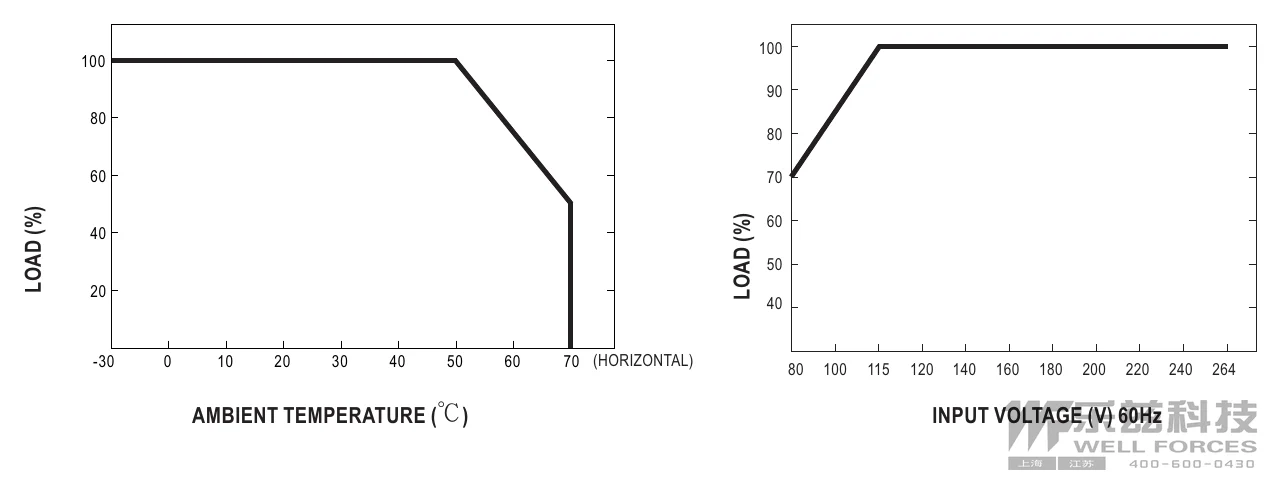

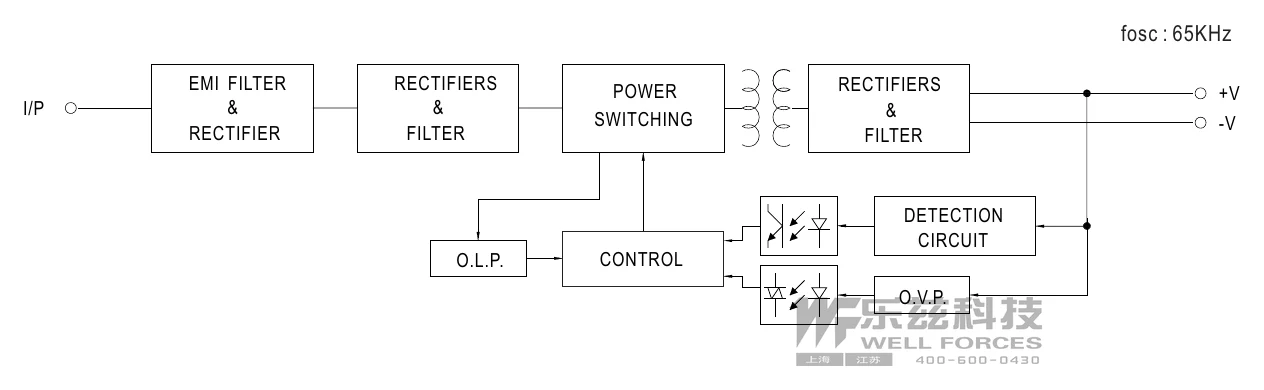

技术图纸

典型应用

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

资料下载

规格书1

EPS-65S-3.3 规格书PDF下载

3D 图档1

EPS-65S-3.3 3D 图档ZIP下载

认证证书11

CCC认证证书EPS-45S, 65S-CCC-CER.pdfPDF下载

UL认证证书E183223-UL-cer.pdfPDF下载

EAC认证证书EAC-cer.pdfPDF下载

TÜV认证证书EPS-45S,65S-TUV-cer.pdfPDF下载

TÜV认证证书EPS-65S,45S-TUV-cer.pdfPDF下载

CB认证证书EPS-45S,65S-CB-cer.pdfPDF下载

CB认证证书EPS-45S,65S-CB(TUV)-cer.pdfPDF下载

CB认证证书EPS-45S,65S-CB(UL)-cer.pdfPDF下载

EMC认证证书EPS-65S-EMC-cer.pdfPDF下载

CE认证证书EPS-45S,65S-CE-dec.pdfPDF下载

UK认证证书EPS-45S,65S-UK-dec.pdfPDF下载
