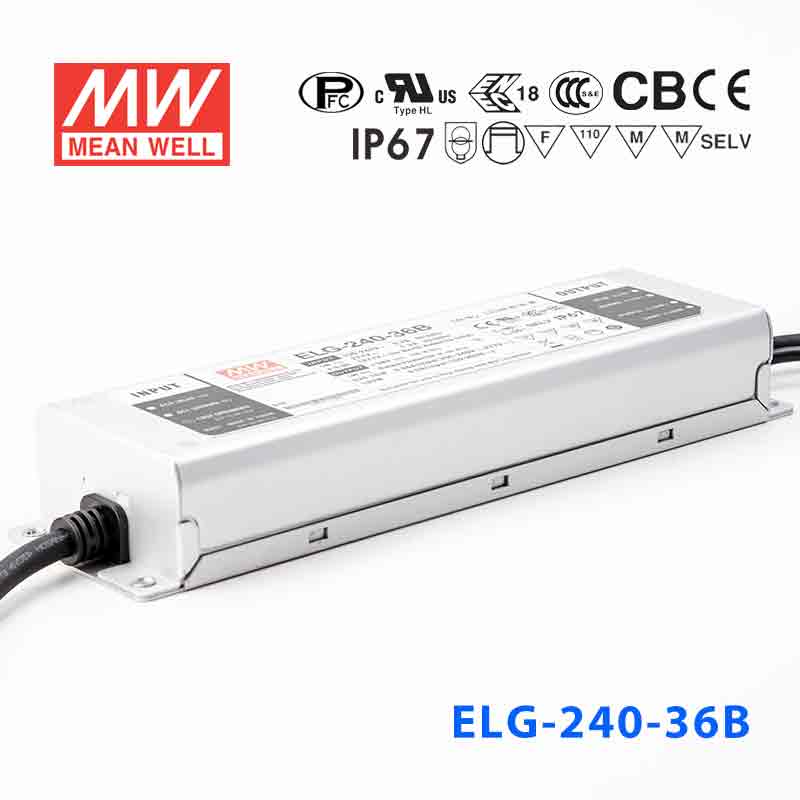

ELG-240-36D2 · D2型 PFC防水LED电源

100~305VAC交流输入尺寸244×71×37.5mm工作温度-40~90°CULEAC

输出电压: 36 V DC
额定功率: 240 W
输出电流: 6.66 A

询价

选择型号 — ELG-240系列ELG-240-36D2

ELG-240-24240W · 24V · 10A ELG-240-24A240W · 24V · 10A ELG-240-24B240W · 24V · 10A ELG-240-24D2240W · 24V · 10A ELG-240-24DA240W · 24V · 10A ELG-240-36239.8W · 36V · 6.66A ELG-240-36A239.8W · 36V · 6.66A ELG-240-36B239.8W · 36V · 6.66A

ELG-240-36D2240W · 36V · 6.66A

ELG-240-36DA239.8W · 36V · 6.66A ELG-240-42239.8W · 42V · 5.71A ELG-240-42A239.8W · 42V · 5.71A ELG-240-42B239.8W · 42V · 5.71A ELG-240-42D2240W · 42V · 5.71A ELG-240-42DA239.8W · 42V · 5.71A ELG-240-48240W · 48V · 5A ELG-240-48A240W · 48V · 5A ELG-240-48B240W · 48V · 5A ELG-240-48D2240W · 48V · 5A ELG-240-48DA240W · 48V · 5A ELG-240-54240.3W · 54V · 4.45A ELG-240-54A240.3W · 54V · 4.45A ELG-240-54B240.3W · 54V · 4.45A ELG-240-54D2240W · 54V · 4.45A ELG-240-54DA240.3W · 54V · 4.45A

即将售罄无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

关于 ELG-240-36D2，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商RCM KC UL ENEC BIS可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

ELG-240 series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-240 operates from 100～305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

产品特点

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

规格参数

ELG-240-36D2参数摘自官方规格书（2021-01-07 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^注Note.2: 18 ~ 36V
RATED CURRENT: 6.66A
RATED POWER 200VAC ~ 305VAC: 239.76W
RATED POWER 100VAC ~ 180VAC: 180W
RIPPLE & NOISE (max.)^注Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 33.5 ~ 38.5V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 3.33 ~ 6.66A
VOLTAGE TOLERANCE^注Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^注Note.6: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^注Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT: 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION^注Note.7: No load power consumption <0.5W for Blank / A / Dx / D-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 42 ~ 49V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +90℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 independent, EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42B/48/48A/48B/54/54A/54ADA/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015,EN61000-3-2 Class C (@load≧50%) ; EN61000-3-3;GB17625.1,GB17743;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 02; KC KN15,KN61547

OTHERS

MTBF: 826.7K hrs min. Telcordia SR-332 (Bellcore) ; 200.8Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5mm (L*W*H)

测试条件与备注12

All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
Please refer to "DRIVING METHODS OF LED MODULE".
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
No load/standby power consumption is specified for 230VAC input.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly (tc) point (or TMP, per DLC), is about 70℃ or less.
Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

技术图纸

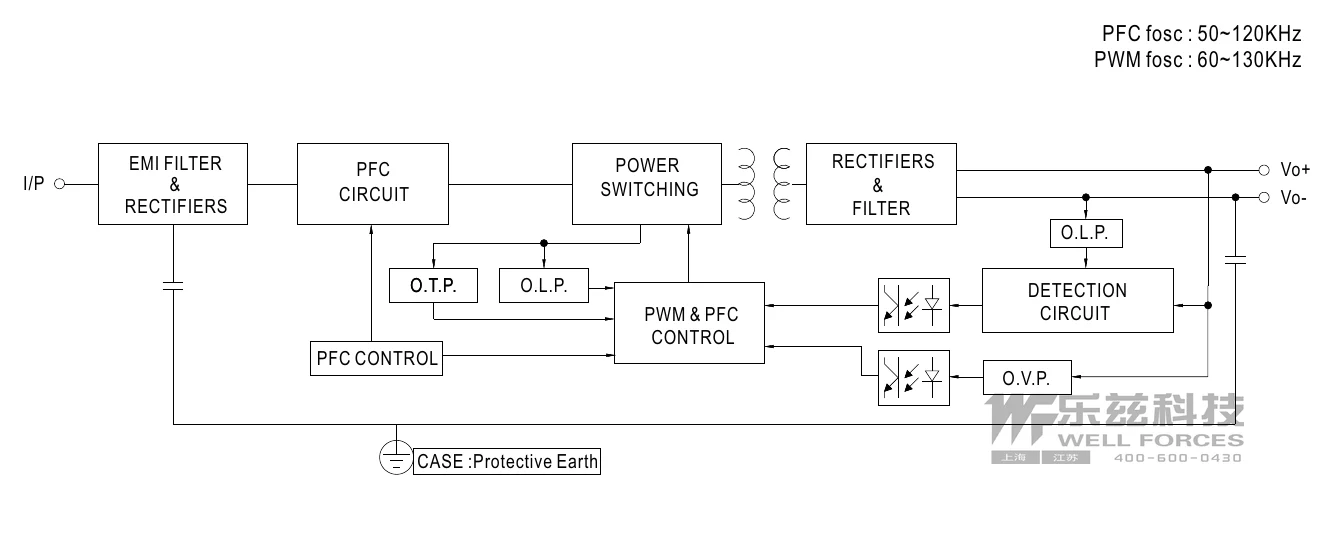

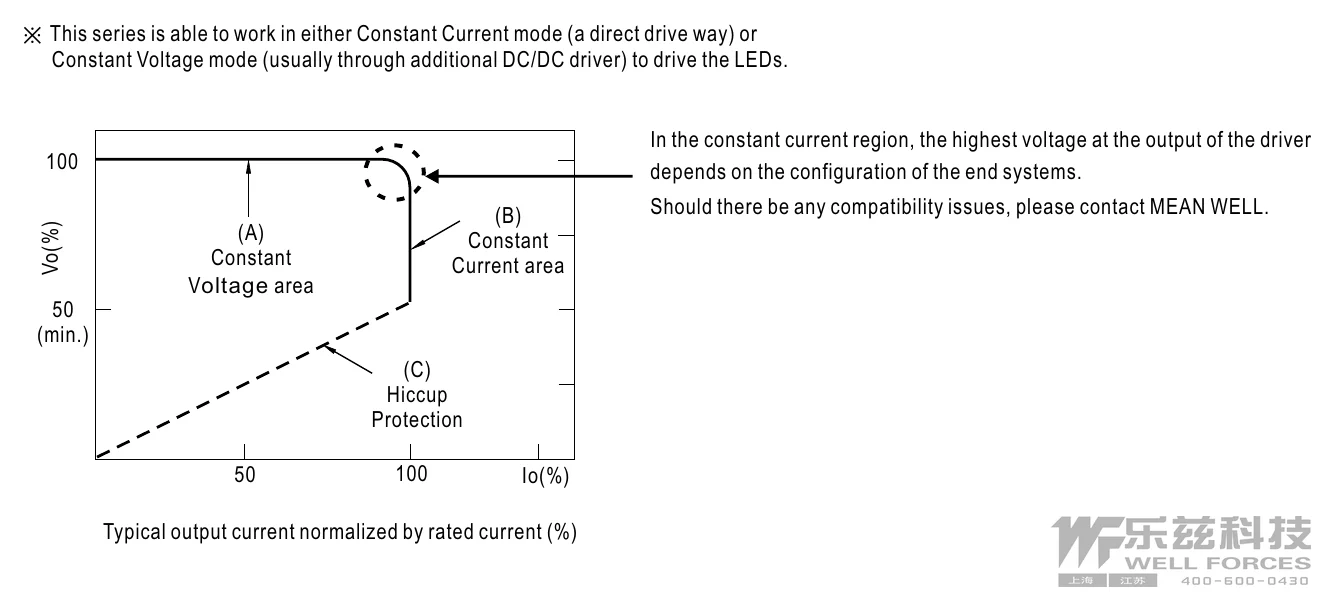

ELG-240-36D2 LED模块驱动方式 — LED模块驱动方式左右滑动 · 点击查看大图

ELG-240-36D2 输出负载vs温度 — 输出负载vs温度左右滑动 · 点击查看大图

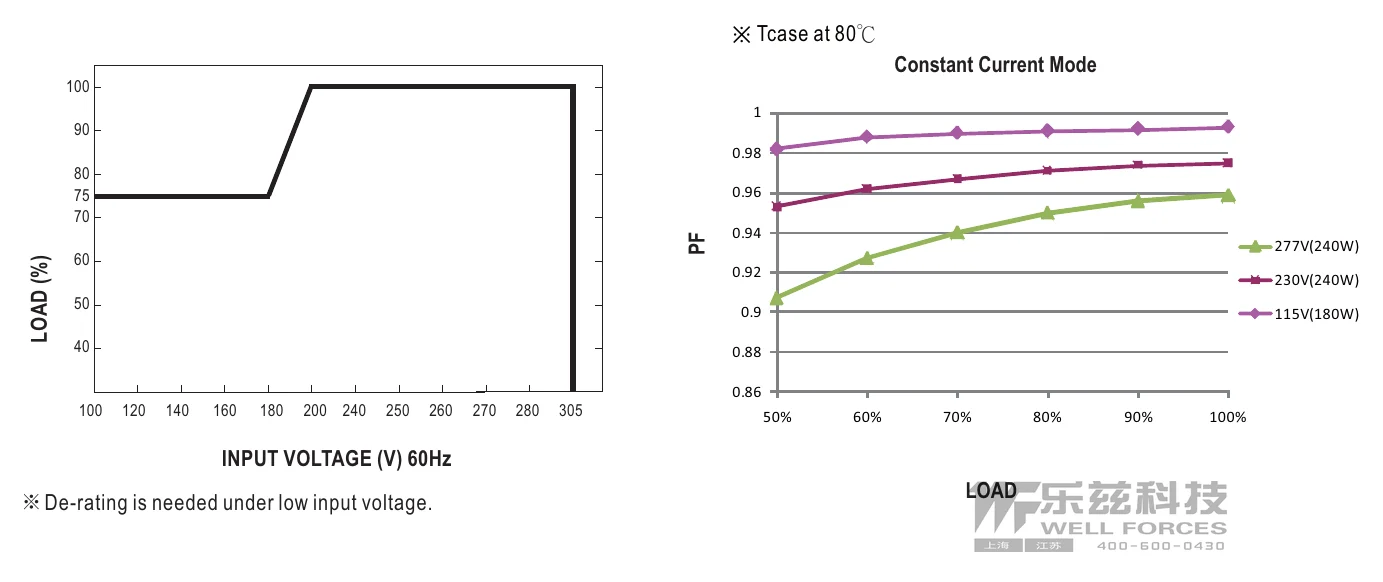

ELG-240-36D2 静态特性曲线 — 静态特性曲线左右滑动 · 点击查看大图

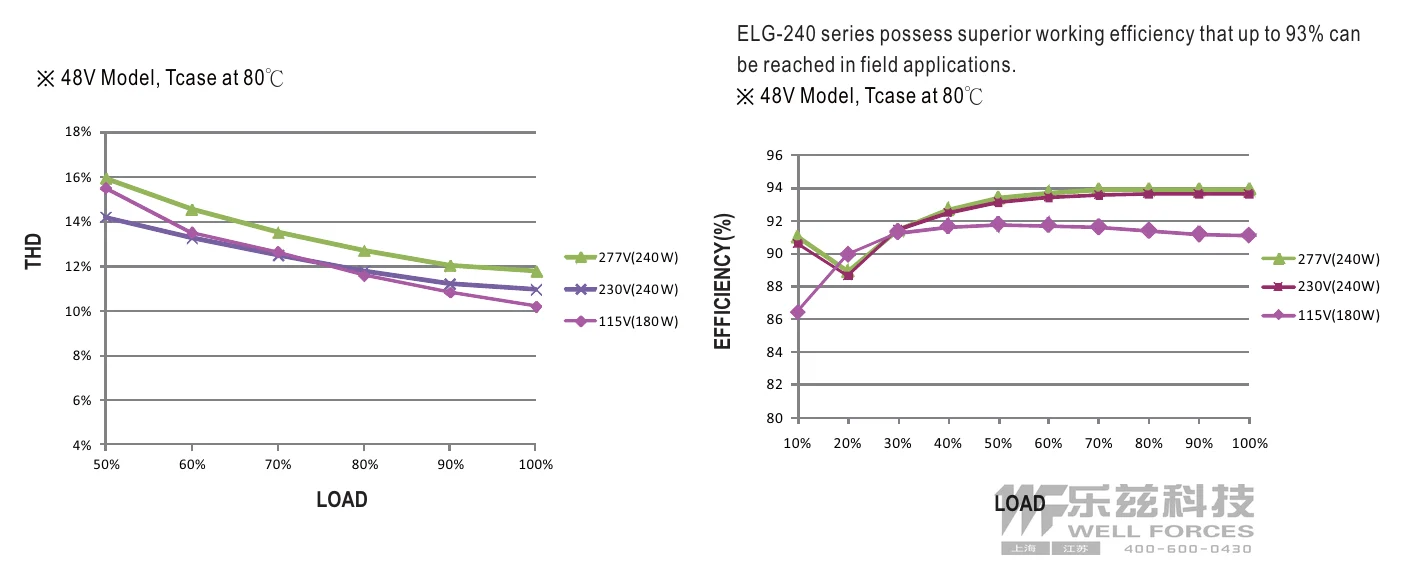

ELG-240-36D2 总谐波失真特性曲线(THD) — 总谐波失真特性曲线(THD)左右滑动 · 点击查看大图

典型应用

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
