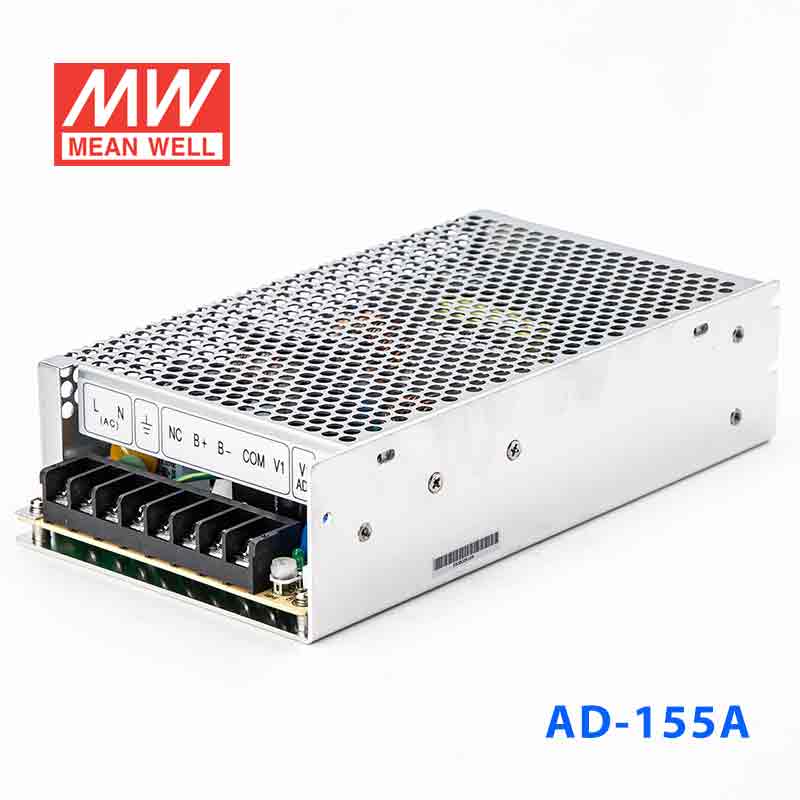

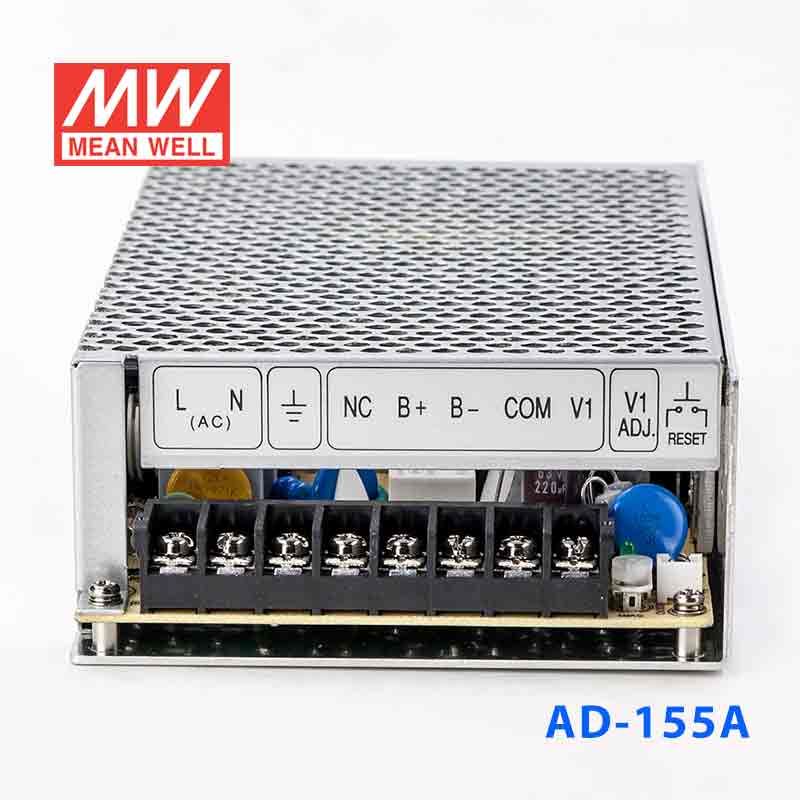

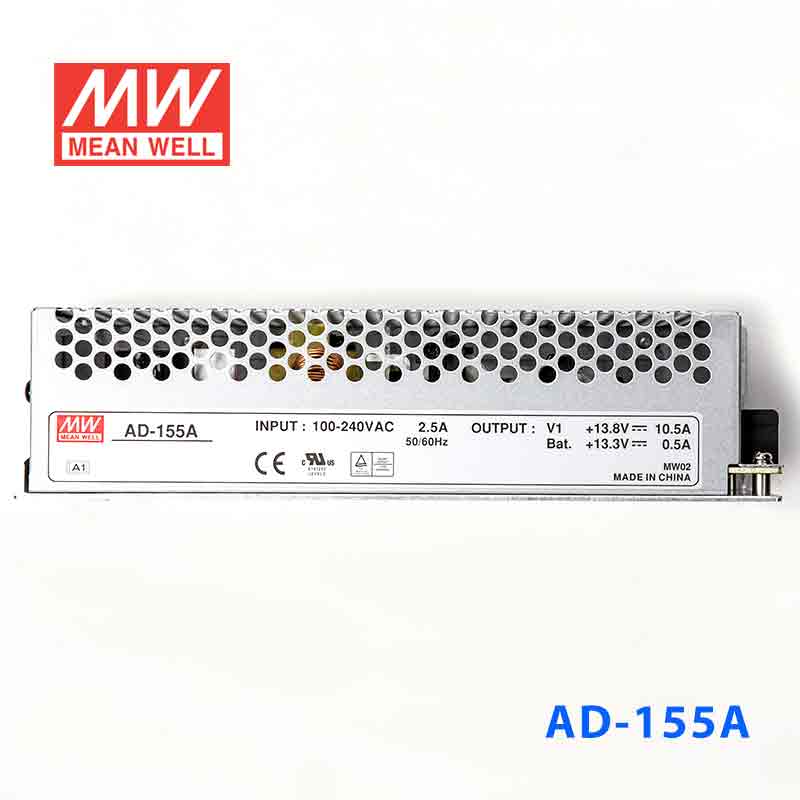

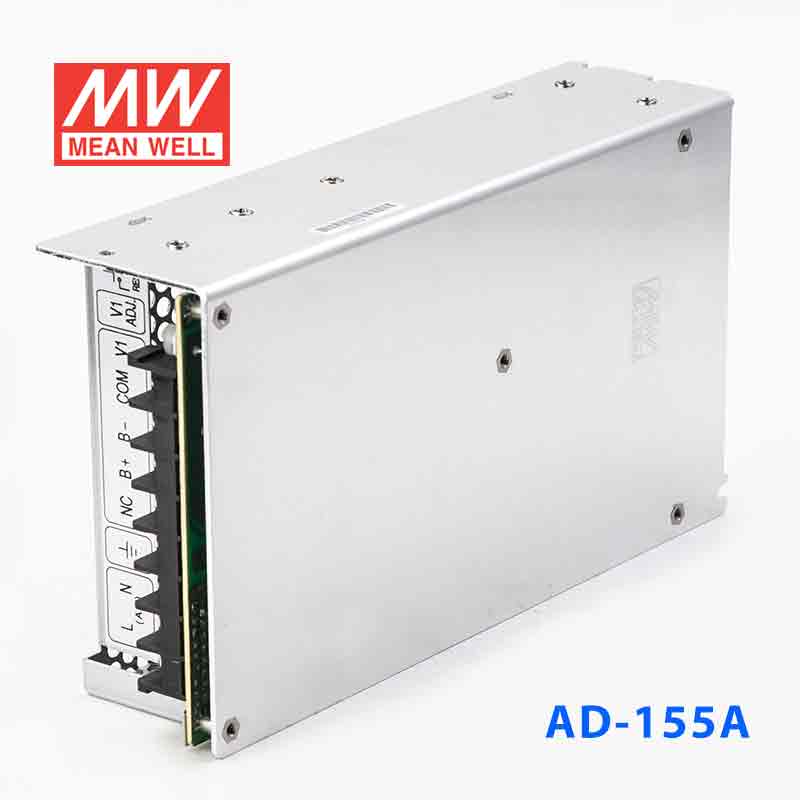

AD-155A · 13.8V 单路输出带浮充电不间断安防电源

Mean Well · Enclosed Switching Power Supply · 151.55W 13.8

输出电压: 13.8 V DC
额定功率: 151.6 W
输出电流: 10.5 A

¥329.00含 13% 增值税停产特价

选择型号 — AD-155系列AD-155A

AD-155A停产151.6W · 13.8V · 10.5A

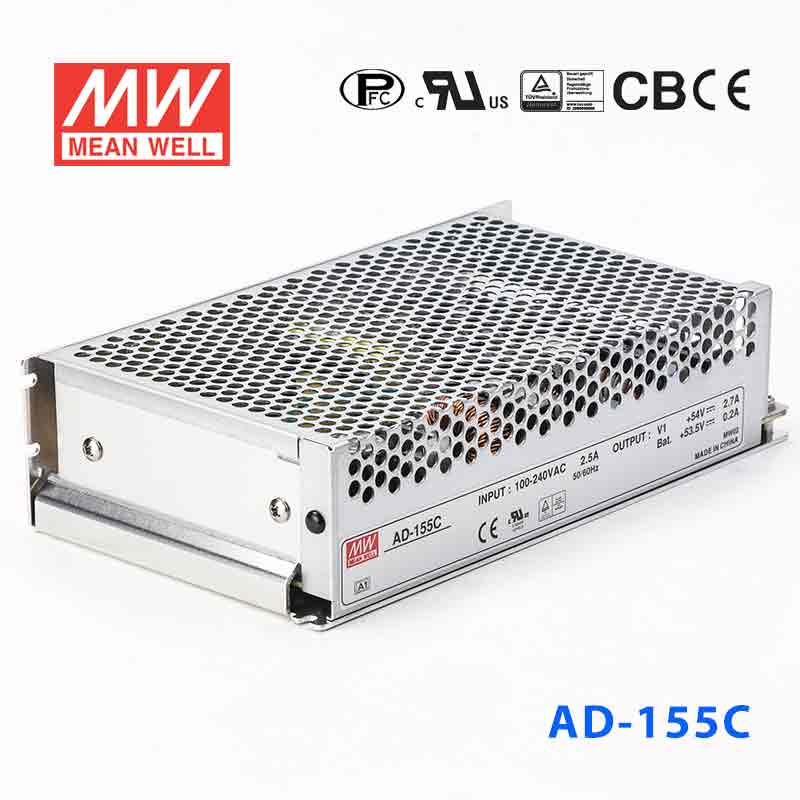

AD-155B151.6W · 27.6V · 5A AD-155C156.5W · 54V · 2.7A

即将售罄无货

现货 · 上海仓 8 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 AD-155A，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE TÜV UL EMC可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low and battery polarity protection
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC 67KHz, PWM 134KHz
2 years warranty

规格参数

AD-155A参数摘自官方规格书（2011-06-16 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2
DC VOLTAGE: CH1: 13.8V CH2: 13.3V
RATED CURRENT: CH1: 10.5A CH2: 0.5A
CURRENT RANGE: CH1: 0 ~ 11.5A CH2: 0 ~ 0.5A
RATED POWER: 151.55W
RIPPLE & NOISE (max.)^注Note.2: CH1: 150mVp-p CH2: --------
VOLTAGE ADJ. RANGE: CH1: 12 ~ 14.5V
VOLTAGE TOLERANCE^注Note.3: CH1: ±2.0% CH2: --------
LINE REGULATION: CH1: ±0.5% CH2: --------
LOAD REGULATION: CH1: ±0.5% CH2: --------
SETUP, RISE TIME: 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.): 24ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.92 at full load
EFFICIENCY (Typ.): 80%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE: CH1:15.87 ~ 18.63V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY LOW: 10V±0.8V

ENVIRONMENT

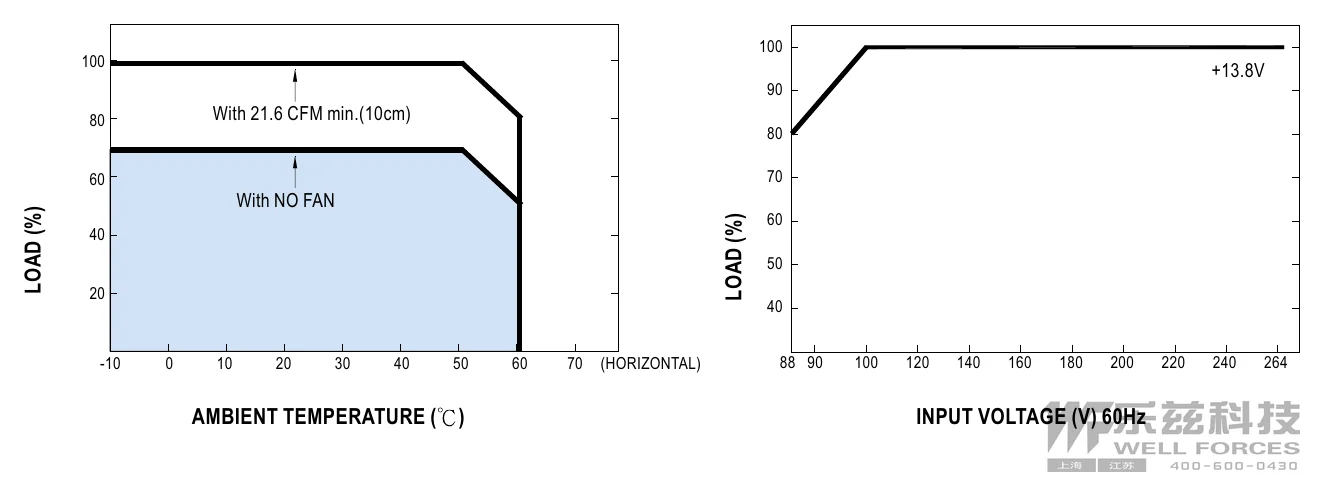

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

OTHERS

MTBF: 183.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*110*50mm (L*W*H)
PACKING: 0.88Kg; 16pcs/15Kg/0.95CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

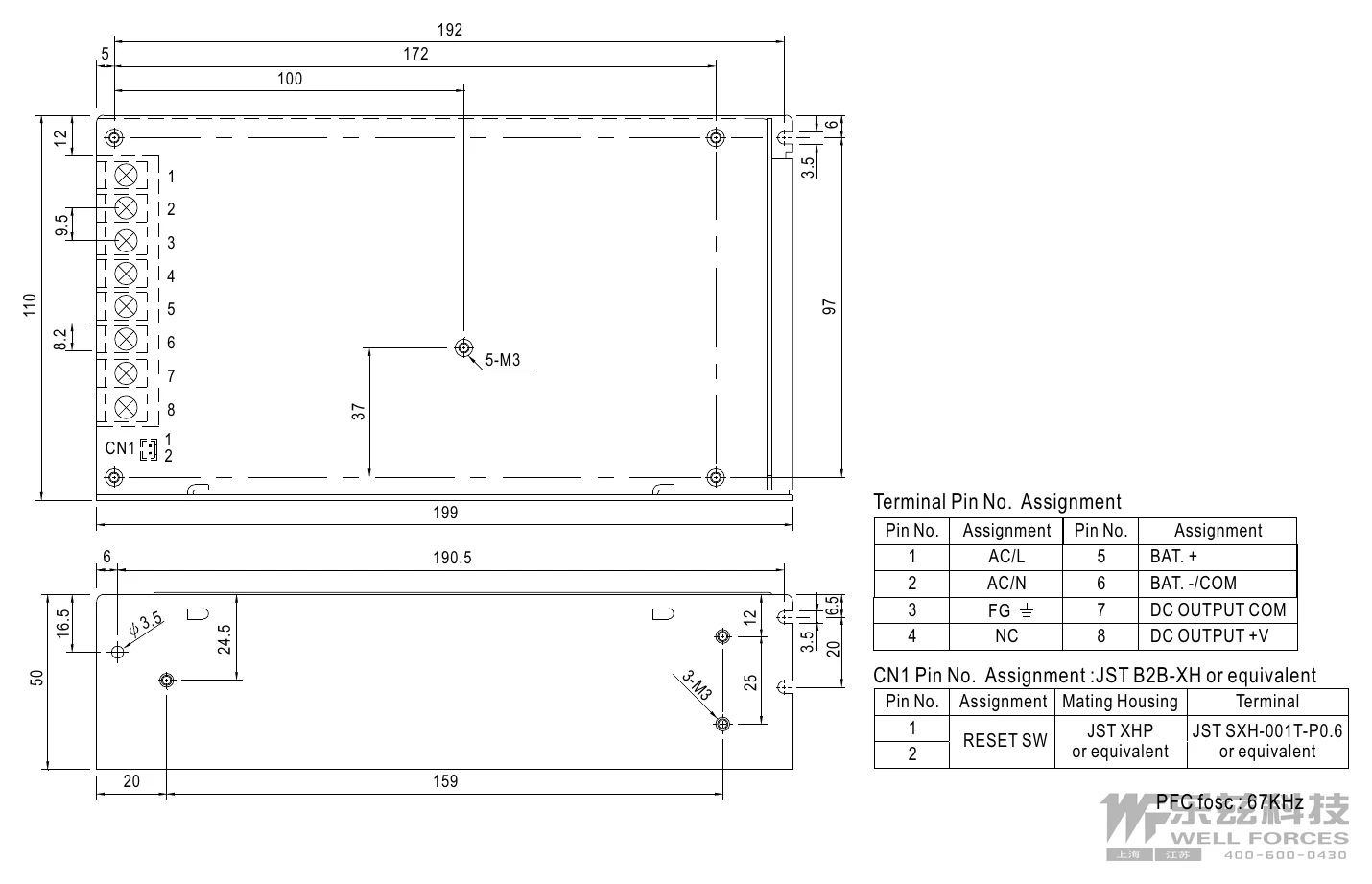

技术图纸

典型应用

■ 典型应用

安防监控系统 — 视频监控摄像头、DVR/NVR录像机、监控中心设备不间断供电。
门禁报警系统 — 门禁控制器、电子锁、入侵报警主机、红外探测器备用电源。
应急照明系统 — 消防应急灯、疏散指示灯、安全出口标识灯备电系统。
通讯设备 — 对讲系统、楼宇可视电话、小型通讯基站UPS供电。
智能楼宇 — 访客系统、电梯五方通话、停车场管理设备备用电源。

资料下载

规格书1

AD-155A 规格书PDF下载

认证证书7

TÜV认证证书TÜV · 点击下载 ↓PDF下载

CB认证证书CB · 点击下载 ↓PDF下载

EMC认证证书EMC · 点击下载 ↓PDF下载

CE认证证书CE · 点击下载 ↓PDF下载

UK认证证书UK · 点击下载 ↓PDF下载

UL认证证书UL · 点击下载 ↓PDF下载
