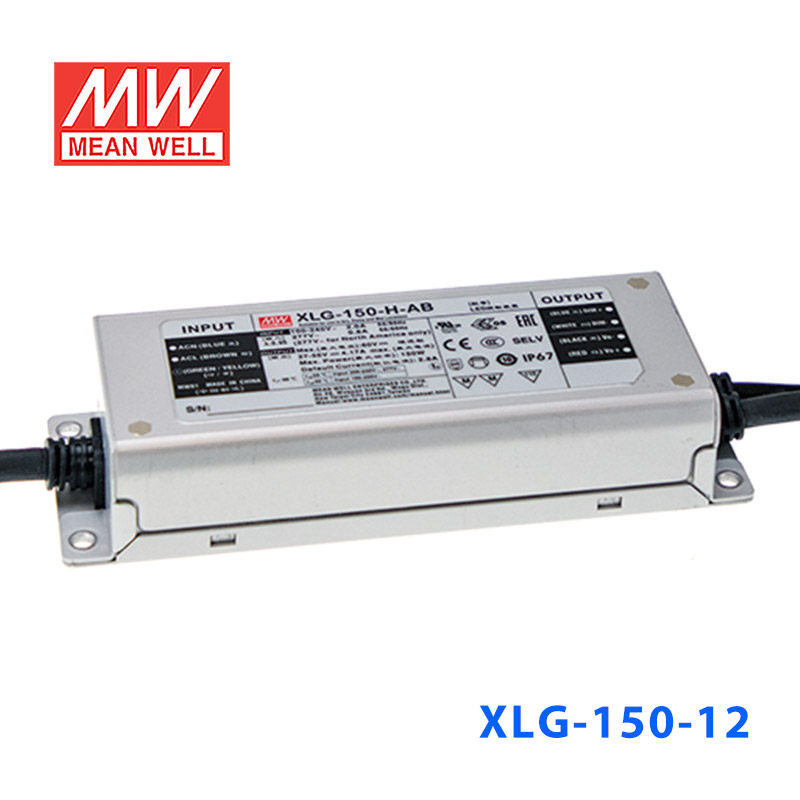

XLG-150-H-A · 台湾 27~ 2800mA 左右恒功率LED驱动器

安规 和 电磁 兼容

安全规范^注7

UL8750(type”HL”),UL879,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384,EN 60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC; GB/T19510.1,GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29), KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-150I type only);NOM-058-SCFI-2017(Blank型除外); IP67认证通过

耐压

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

绝缘阻抗

I/P-O/P,I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH

电磁兼容发射

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55015(CISPR15),GB/T 17743	-----
辐射骚扰 Radiated	BS EN/EN55015(CISPR15),GB/T 17743	-----
谐波电流 Harmonic Current	BS EN/EN61000-3-2,GB17625.1	CLASS C @ 负载≧50%
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-----

电磁兼容抗扰度

BS EN/EN61547

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
射频电磁场辐射 Radiated	BS EN/EN61000-4-3	Level 3
电快速瞬变脉冲群 EFT/Burst	BS EN/EN61000-4-4	Level 3
浪涌 Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth(6K/10K可选)
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
