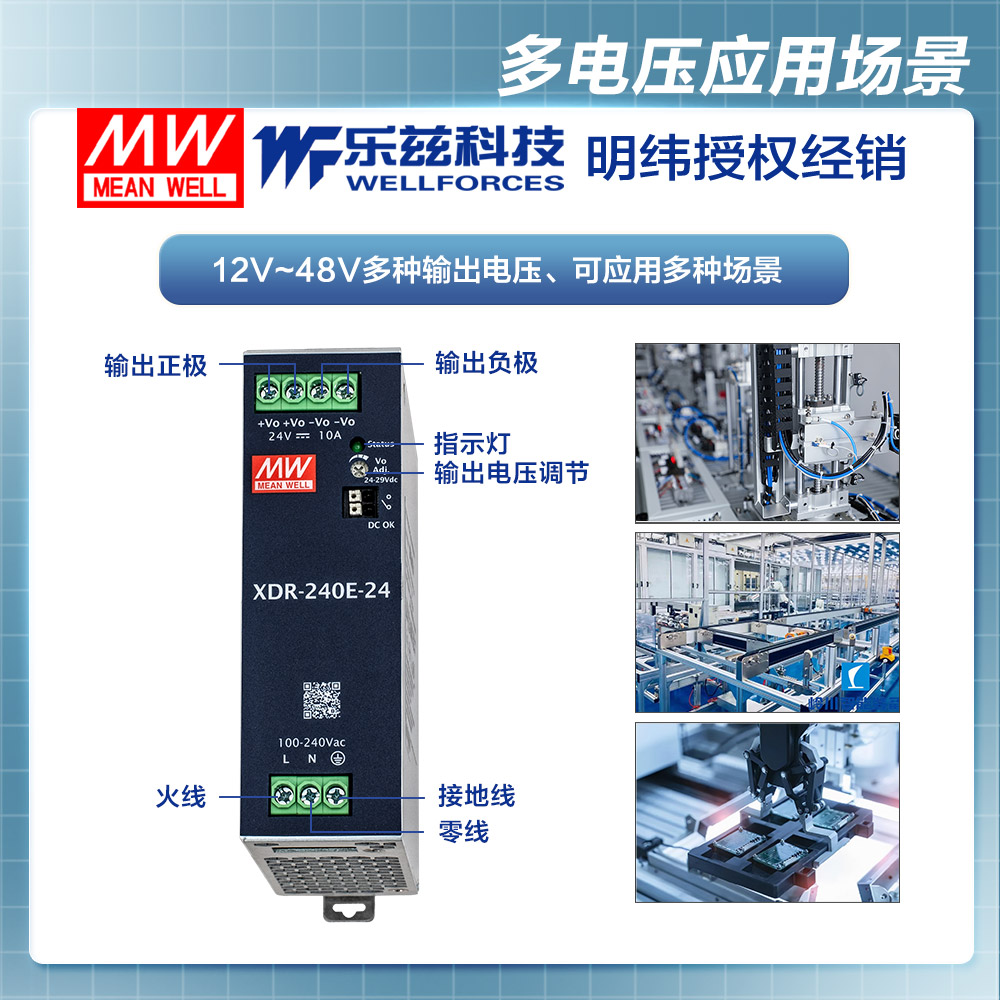

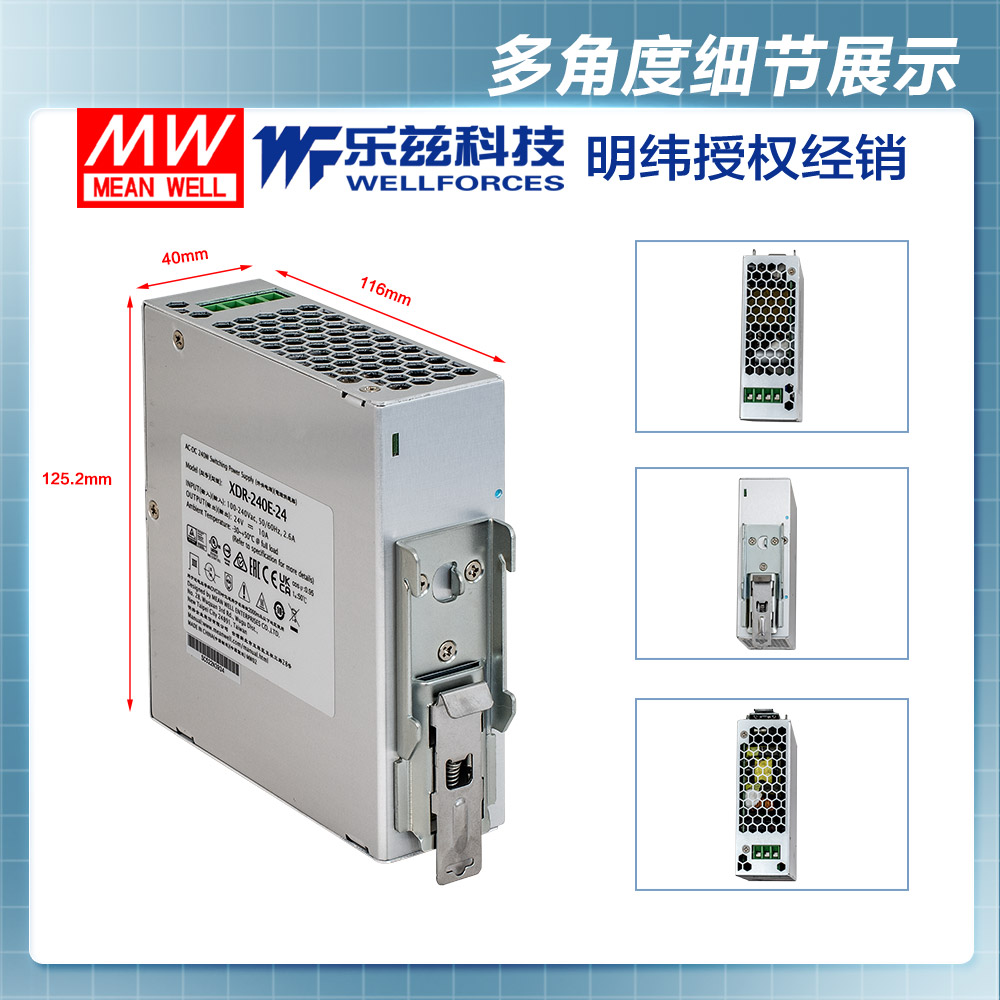

XDR-240E-48 · 导轨电源 经济超薄AC DC工业国际安规

安规和电磁兼容

安全规范

CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL UL/CUL 61010-1/-2-201 CCC GB4943.1 BSMI CNS15598-1 EAC TPTC004 approved KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request

过压类别^注4

IEC/EN 61558-1/-2-16 (OVC Ⅲ,海拔高度 2000M ) IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, 海拔高度 5000M ) IEC/EN 62368-1 (OVC Ⅱ, 海拔高度 5000M )

安全超低电压(SELV)

IEC/EN 61558-2-16 (SELV ) IEC/EN 62368-1 (SELV / ES1 )

耐压

I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac

绝缘阻抗

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500Vdc/25℃/ 70%RH

电磁兼容发射

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
辐射骚扰 Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
谐波电流 Harmonic Current	BS EN/EN61000-3-2	Class A
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-----

电磁兼容抗扰度

BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2), KS C 9835

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact; criteria A
射频电磁场辐射 Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
电快速瞬变脉冲群 EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
浪涌 Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A
