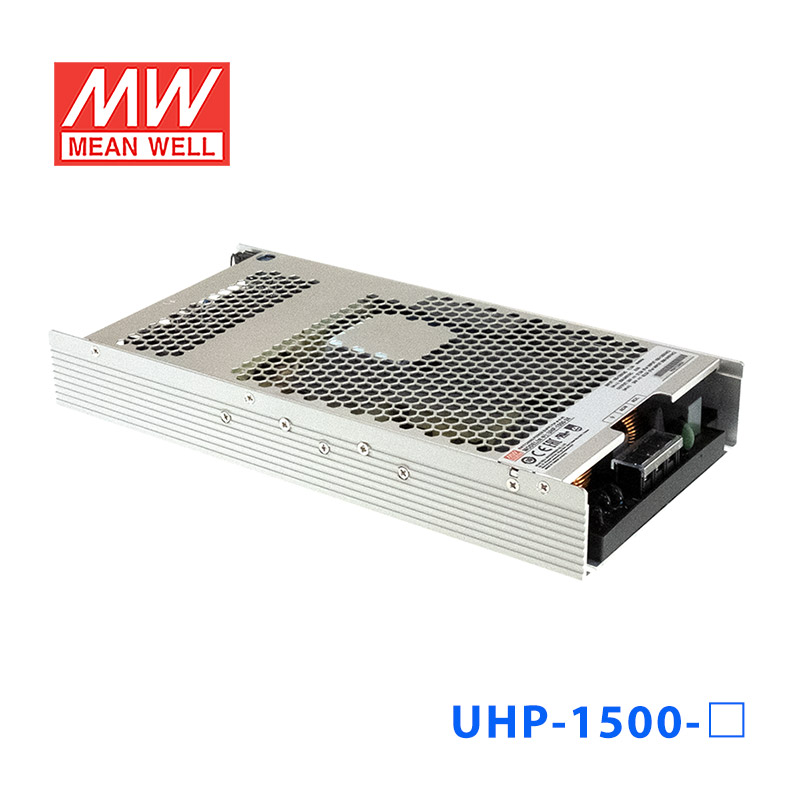

UHP-1500-115 · 电源传导冷却高压输出电源

Mean Well · Enclosed Switching Power Supply · 1500.75W 115

输出电压: 115 V DC
额定功率: 1500.8 W
输出电流: 13.05 A

¥1931.00含 13% 增值税

选择型号 — UHP-1500-HV系列UHP-1500-115

UHP-1500-1151500.8W · 115V · 13.05A

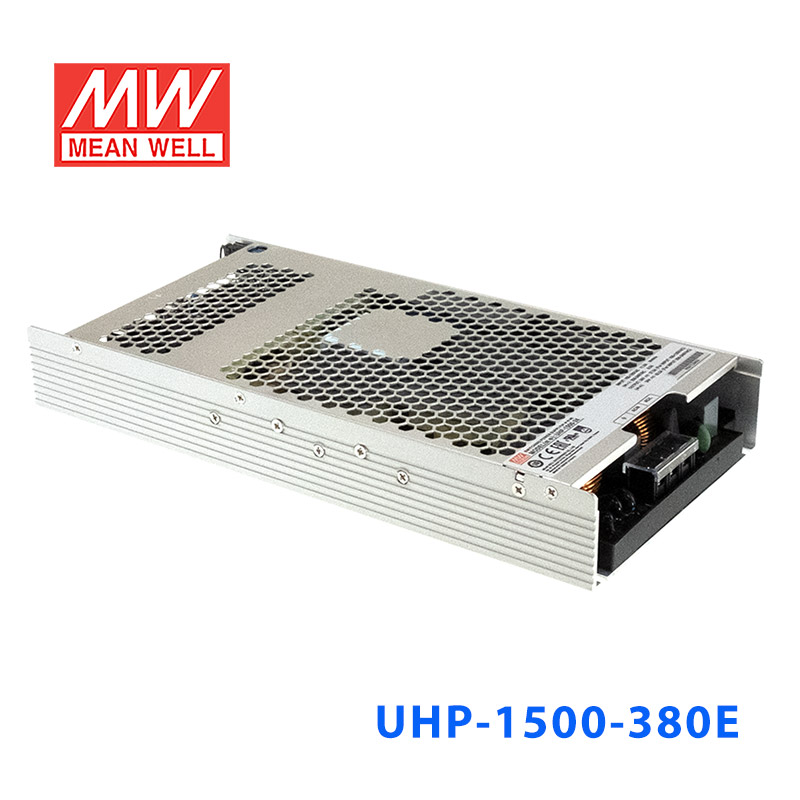

UHP-1500-2301500W · 230V · 6.95A UHP-1500-3801500W · 380V · 4.5A UHP-1500-380E1501W · 380V · 3.95A

即将售罄无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 UHP-1500-115，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE EAC UL Dekra可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

UHP-1500 series is a 1500W single-output slim type power supply with 1U 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 115V/230V and 380V. In addition to the high efficiency up to 95.5%, that the whole series operates from -30℃ ~ 70℃ under air convection without fan. UHP-1500 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1. UHP-1500 series serves as a high performance power supply solution for various industrial and DC centralized bus applications.

产品特点

High voltage output (115/230/380V)
Fanless and conduction-cooled design
Slim and 1U Low profile (41mm)
Built-in active PFC function
DC 12V/0.4A auxiliary power
Output voltage and constant current level programmable(PV/PC)
Protections: Short circuit / Over load / Over voltage / Over temperature
Built-in remote ON-OFF control and DC OK signal
Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)
LED indicator for power on
Optional PMBus or CANBus protocol
5 years warranty

规格参数

UHP-1500-115参数摘自官方规格书（2024-11-23 版）下载规格书 PDF

OUTPUT

DC VOLTAGE(DEFAULT): 115V
CURRENT (FACTORY DEFAULT): 13.05A
RATED CURRENT (Max.): 13.05A
POWER (FACTORY DEFAULT): 1500.75W
RATED POWER (Max.): 1500.75W
RIPPLE & NOISE (Max.)^注Note.2: 1150mVp-p
FULL POWER VOLTAGE RANGE: 115~138V
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR 90~138V
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^注Note.4: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.95/230VAC at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 8A/230VAC
INRUSH CURRENT (Typ.): Cold start 60A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER LOAD: 105~125% rated output power Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover.
SHORT CIRCUIT: Constant current limiting, unit will shutdown after 5 sec, re-power on to recover.
OVER VOLTAGE: 145 ~175V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{注Note 5}: Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{注Note 5}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V @ 0.4A tolerance ±10%, ripple=150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = 4.4 ~ 5.5V ; PSU turn off = -0.5 ~ 0.5V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^{注Note 8}: OVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC
ISOLATION RESISTANCE^{注Note 8}: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: 项目标准测试等级
Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY: BS EN/EN61000-6-2
项目标准测试等级
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

项目	标准	测试等级
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3	-----

项目	标准	测试等级
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 597.3K hrs min. Telcordia SR-332 (Bellcore) ; 63.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 290*140*41mm (L*W*H)

测试条件与备注15

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance :includes set up tolerance, line regulation and load regulation.
Derating may be needed under low input voltages. Please check the derating curve for more details.
PV/PC functions when users do not use SVR.
The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Refer to derating curve.
(E type) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
(E type) 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
(E type) 3. Tolerance :includes set up tolerance, line regulation and load regulation.
(E type) 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
(E type) 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
(E type) 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
(E type) 7. Refer to derating curve.

技术图纸

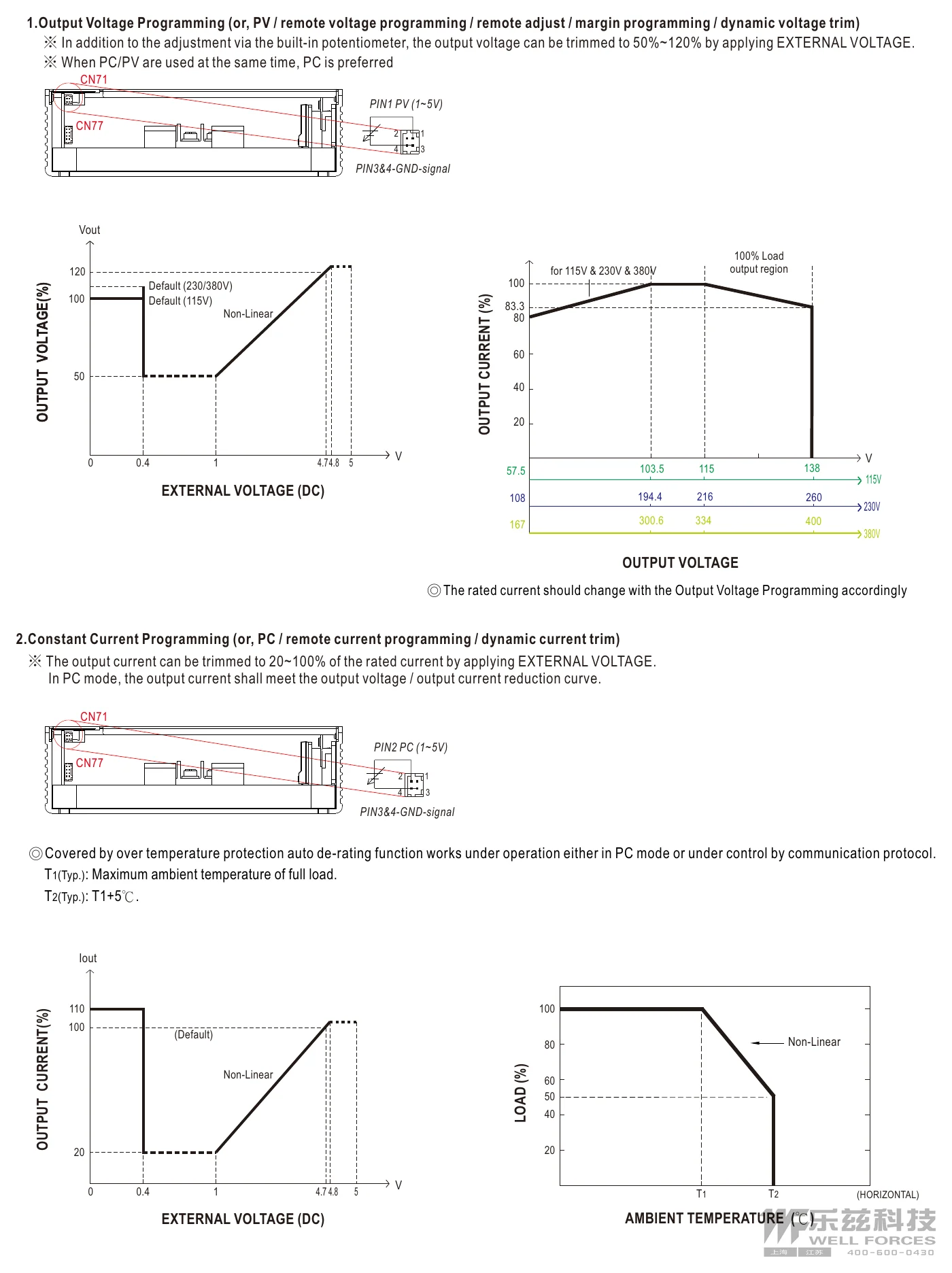

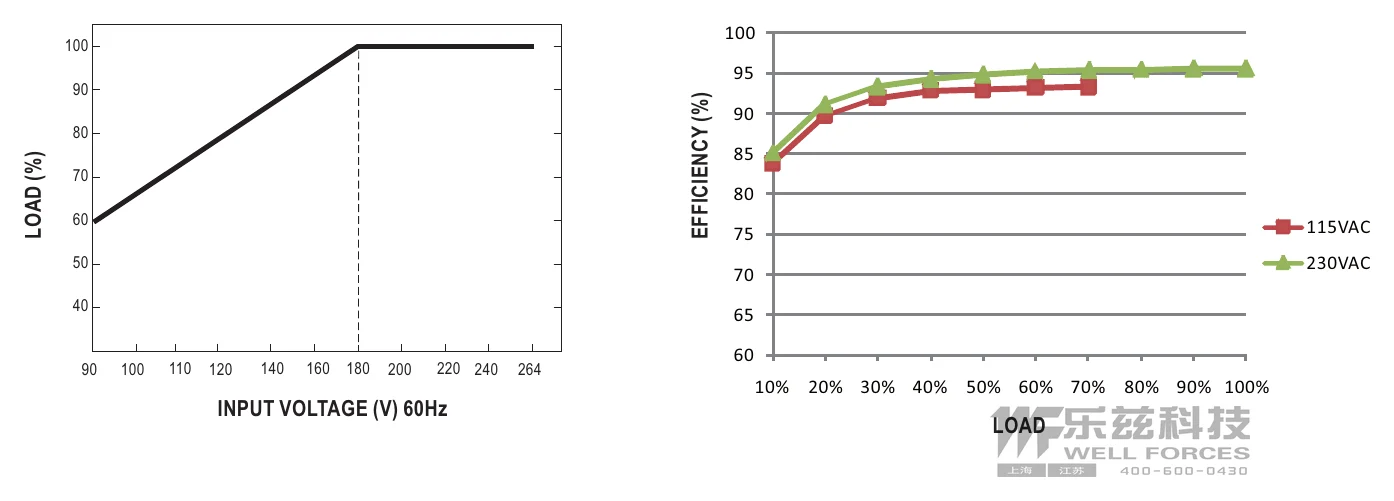

UHP-1500-115 静态特性曲线 — 静态特性曲线左右滑动 · 点击查看大图

典型应用

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
Test and measurement instrument
Laser related machine
Charging related equipment
DC centralized bus(Lighting)

资料下载

规格书1

UHP-1500-115 规格书PDF下载

3D 图档1

UHP-1500-115 3D 图档ZIP下载
