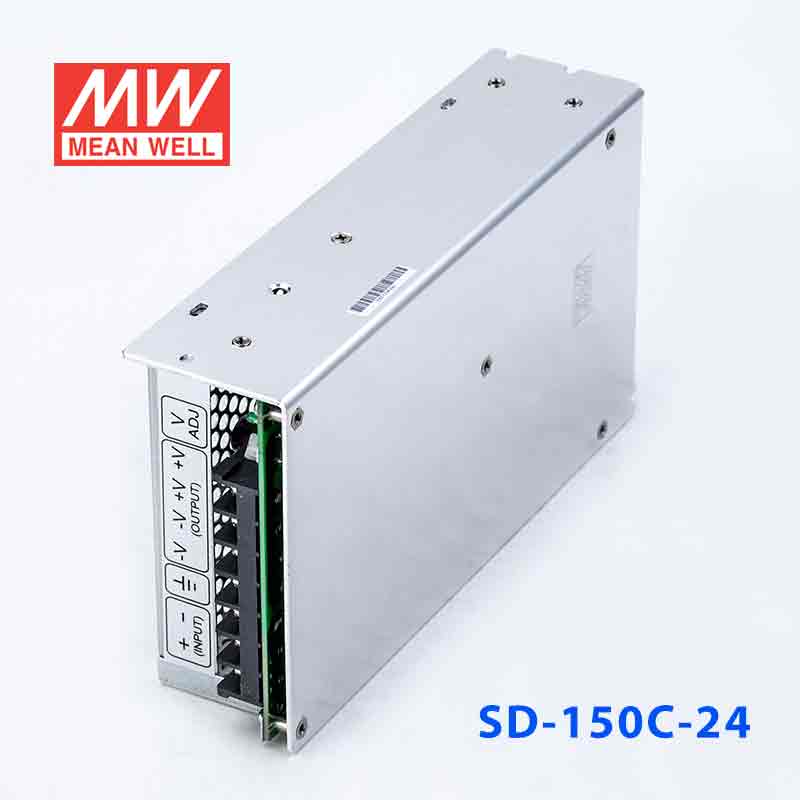

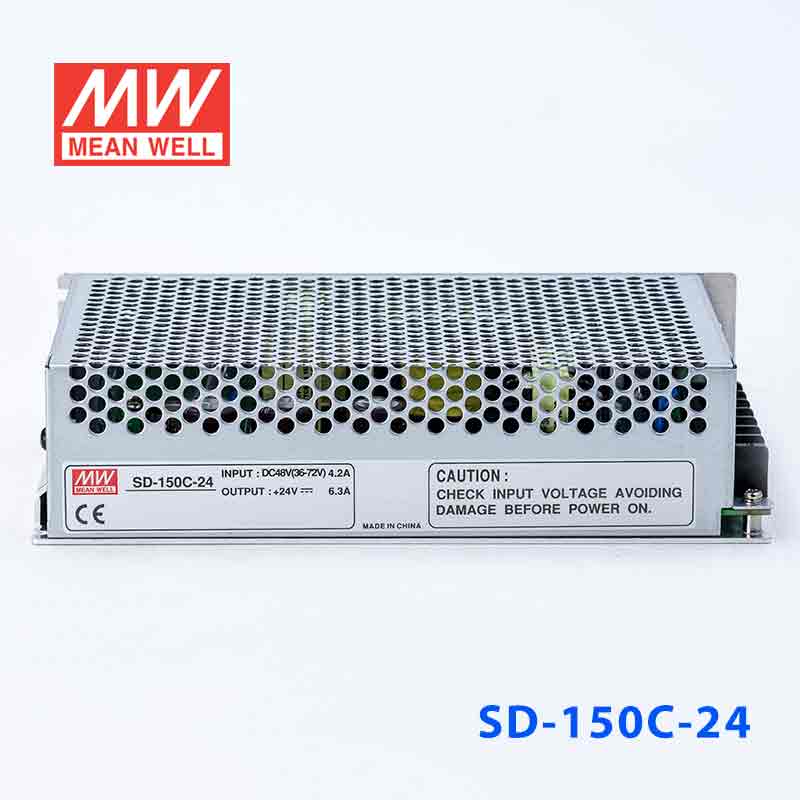

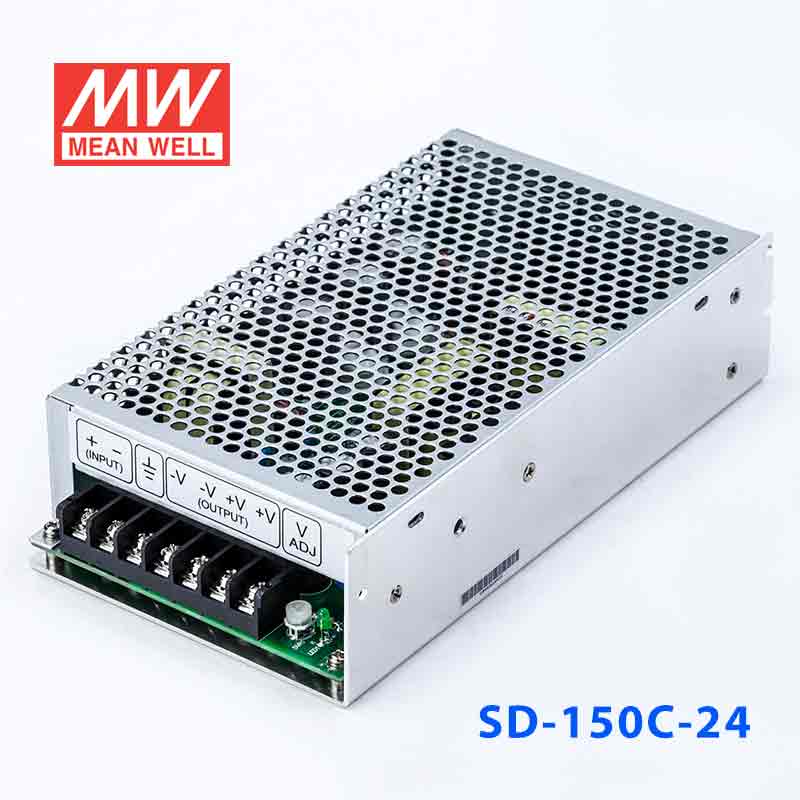

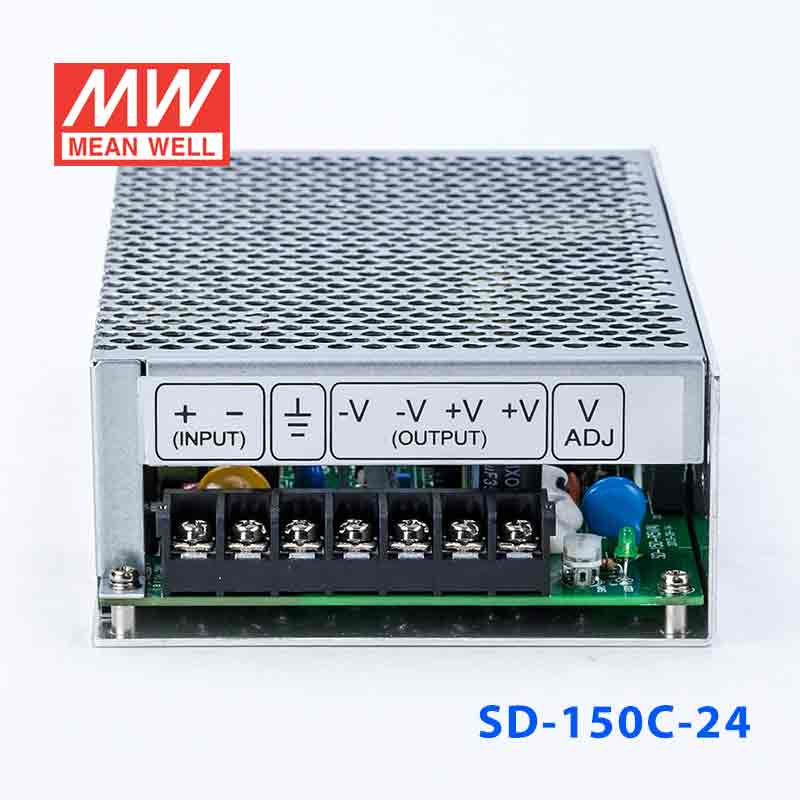

SD-150C-24 · 36~ 入有外壳 DC DC转换电源

Mean Well · Enclosed Switching Power Supply · 151.2W 24

输出电压: 24 V DC
额定功率: 151.2 W
输出电流: 6.3 A

¥260.40市场价 ¥289.90含 13% 增值税

选择型号 — SD-150系列SD-150C-24

SD-150B-12150W · 12V · 12.5A SD-150B-24151.2W · 24V · 6.5A SD-150C-12150W · 12V · 12.5A

SD-150C-24151.2W · 24V · 6.5A

SD-150D-12150W · 12V · 12.5A SD-150D-24151.2W · 24V · 6.5A

现货即将售罄无货

现货 · 上海仓 356 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 SD-150C-24，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商EAC CE EMC CBTÜV可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

2:1 wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
24V and 48V input voltage design refer to LVD
Low cost
High reliability
2 years warranty

规格参数

SD-150C-24参数摘自官方规格书（2011-08-23 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.3A
CURRENT RANGE: 0 ~ 6.3A
RATED POWER: 151.2W
RIPPLE & NOISE (max.)^注Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 23 ~ 30VDC
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.3%
SETUP, RISE TIME: 2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.): 24ms(only D mode) at full load

INPUT

VOLTAGE RANGE: B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC or 85 ~ 132VAC
EFFICIENCY (Typ.): 80%
DC CURRENT (Typ.): 3.4A/48V
INRUSH CURRENT (Typ.): D:22.5A/96VDC
LEAKAGE CURRENT: <0.75mA / 120VAC (SD-150D)

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 31.5 ~ 37.5V/10% LOAD Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC60950-1 CB approved by TUV (for D type only)
WITHSTAND VOLTAGE: I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^{注Note 4}: Compliance to EN55022 (CISPR22) Class B
EMC IMMUNITY^{注Note 4}: Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A

OTHERS

MTBF: 296.2K hrs min.(SD-150B) 289.9K hrs min.(SD-150C) 289K Hrs min.(SD-150D) MIL-HDBK-217F (25℃)
DIMENSION: 199*110*50mm (L*W*H)
PACKING: 0.86Kg; 16pcs/14.5Kg/0.95CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

技术图纸

典型应用

■ 典型应用

工业自动化 — 为PLC、传感器、执行器等工业控制设备提供稳定电源。
电池备援系统 — 作为备用电源系统中的DC-DC转换环节，确保系统不间断运行。
交通运输 — 适用于轨道交通、船舶、电动车辆等车载供电系统。
通信设备 — 为电信基站、网络设备等提供可靠的直流电源转换。
监控安防 — 应用于视频监控、门禁系统等安防设备的电源供应。
