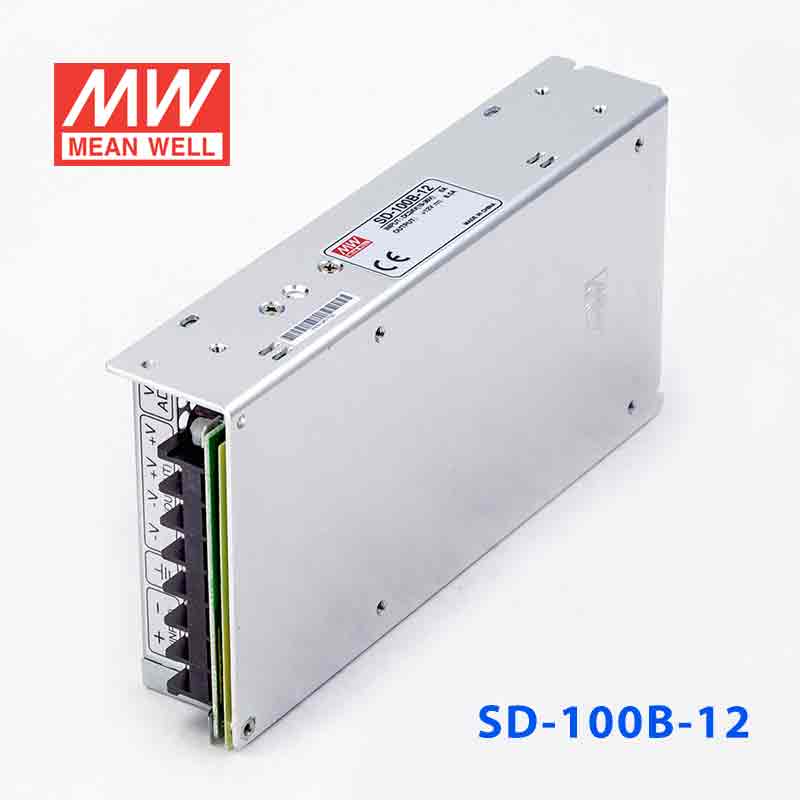

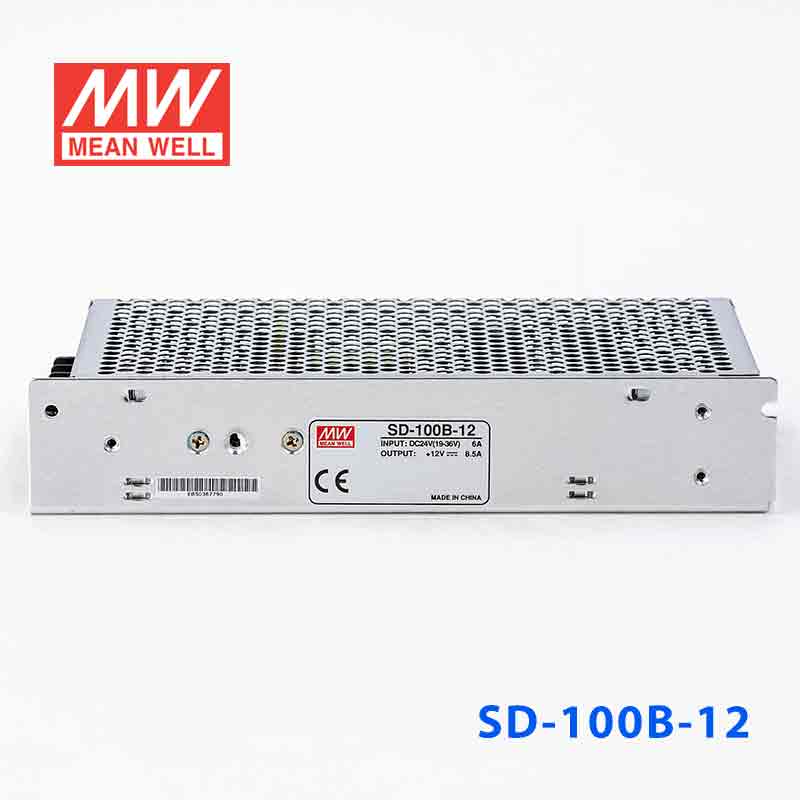

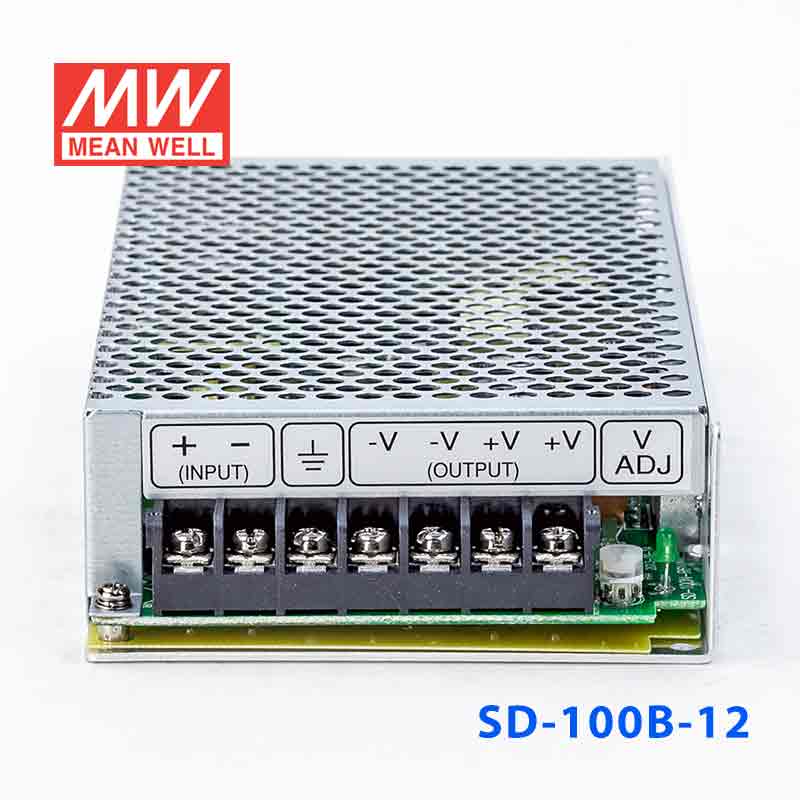

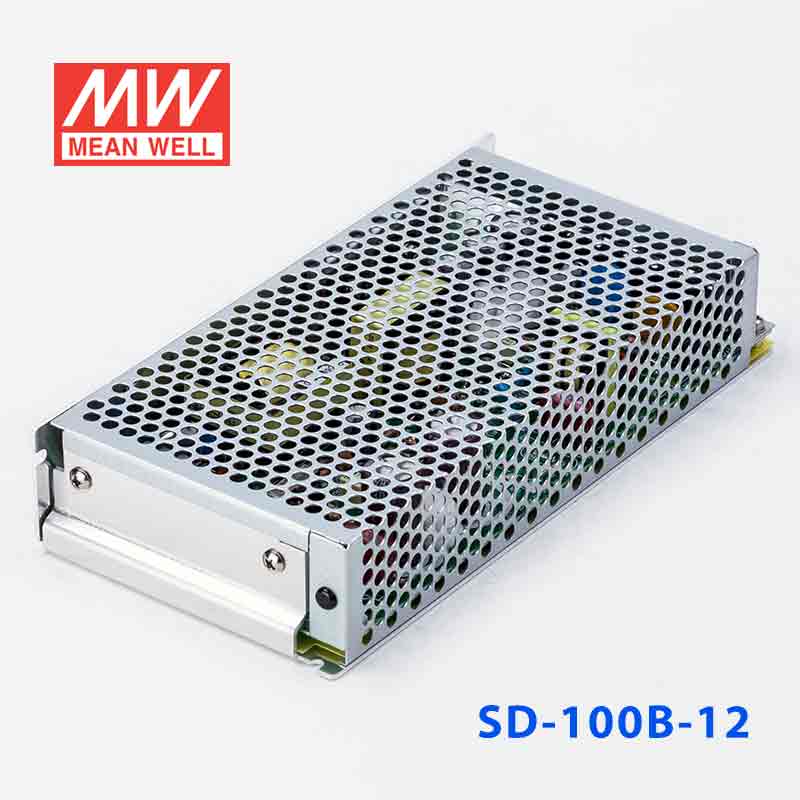

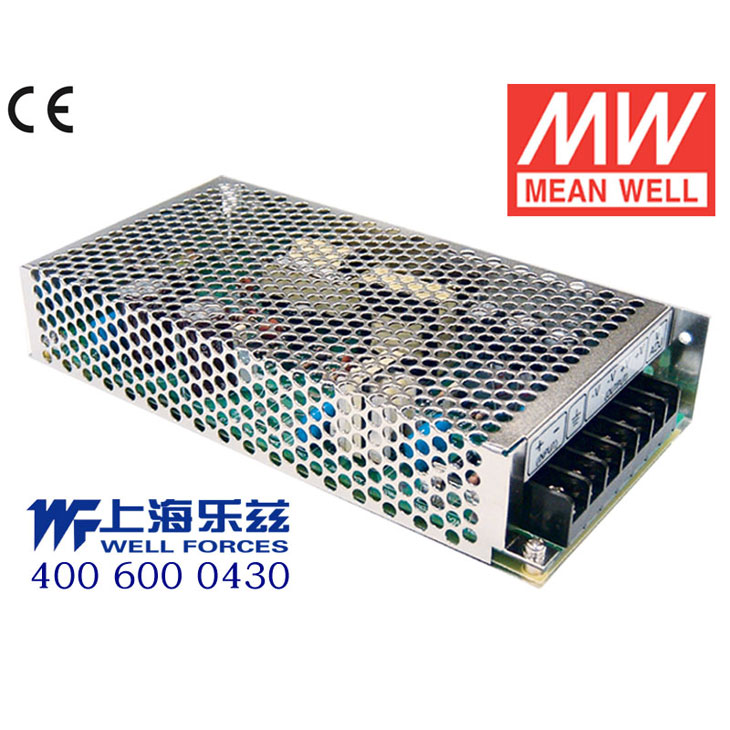

SD-100B-12 · 19~ 入有外壳 DC DC转换电源

Mean Well · Enclosed Switching Power Supply · 102W 12

输出电压: 12 V DC
额定功率: 102 W
输出电流: 8.5 A

¥197.40市场价 ¥214.50含 13% 增值税

选择型号 — SD-100系列SD-100B-12

SD-100B-5100W · 5V · 18A

SD-100B-12102W · 12V · 8.5A

SD-100B-24100.8W · 24V · 4.2A SD-100C-5100W · 5V · 18A SD-100C-12102W · 12V · 8.5A SD-100C-24100.8W · 24V · 4.2A SD-100D-5100W · 5V · 18A SD-100D-12102W · 12V · 8.5A SD-100D-24100.8W · 24V · 4.2A

现货即将售罄无货

现货 · 上海仓 377 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 SD-100B-12，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商EAC CE EMC CBTÜV可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

2:1 wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83KHz
24V and 48V input voltage design refer to LVD
Low cost
High reliability
2 years warranty

规格参数

SD-100B-12参数摘自官方规格书（2011-08-23 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 8.5A
CURRENT RANGE: 0 ~ 8.5A
RATED POWER: 102W
RIPPLE & NOISE (max.)^注Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 11 ~ 16VDC
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.3%
SETUP, RISE TIME: 2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.): 20ms(only D mode) at full load

INPUT

VOLTAGE RANGE: B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC
EFFICIENCY (Typ.): 75%
DC CURRENT (Typ.): 4.8A/24V
INRUSH CURRENT (Typ.): D:18A/96VDC
LEAKAGE CURRENT: <0.75mA/120VAC(SD-100D)

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 16.8 ~ 20V/10% load Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC60950-1 CB approved by TUV (for D type only)
WITHSTAND VOLTAGE: I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A

OTHERS

MTBF: 356.7K hrs min.(SD-100B) 355.5K hrs min.(SD-100C) 341.9K Hrs min.(SD-100D) MIL-HDBK-217F (25℃)
DIMENSION: 199*98*38mm (L*W*H)
PACKING: 0.65Kg; 20pcs/13.8Kg/0.8CUFT

测试条件与备注4

All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

技术图纸

典型应用

■ 典型应用

电池备援系统 — 为应急照明、安防系统等提供稳定直流转换。
交通工具 — 适用于大巴、卡车、船舶等车载电子设备的供电。
工业自动化 — 为PLC、传感器、执行器等工业控制设备提供可靠电源。
电信设备 — 为通信基站、网络设备提供稳定的直流电源转换。
监控系统 — 为CCTV摄像头、录像机等安防监控设备供电。
