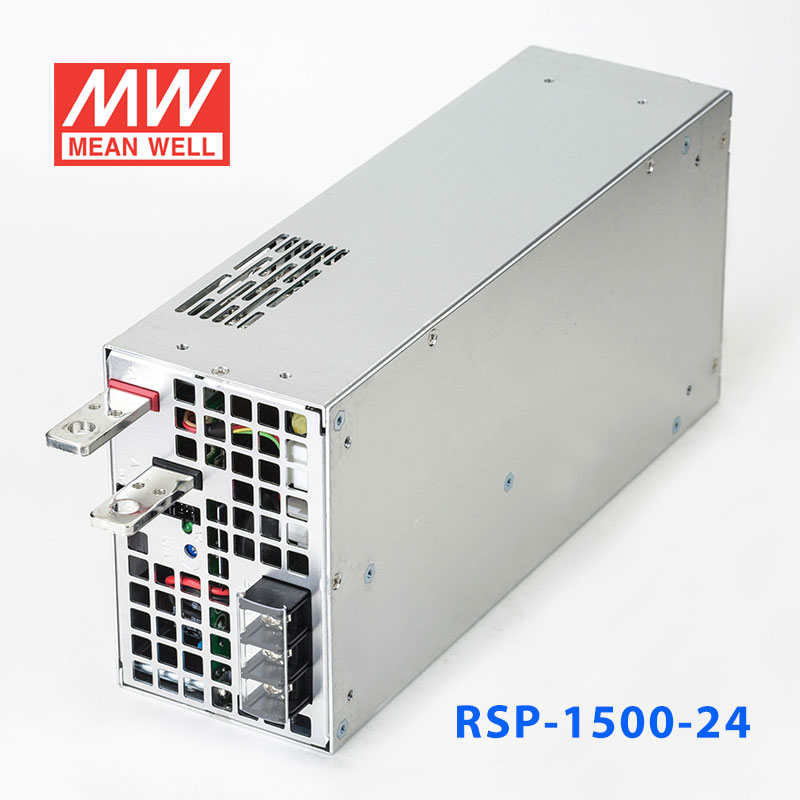

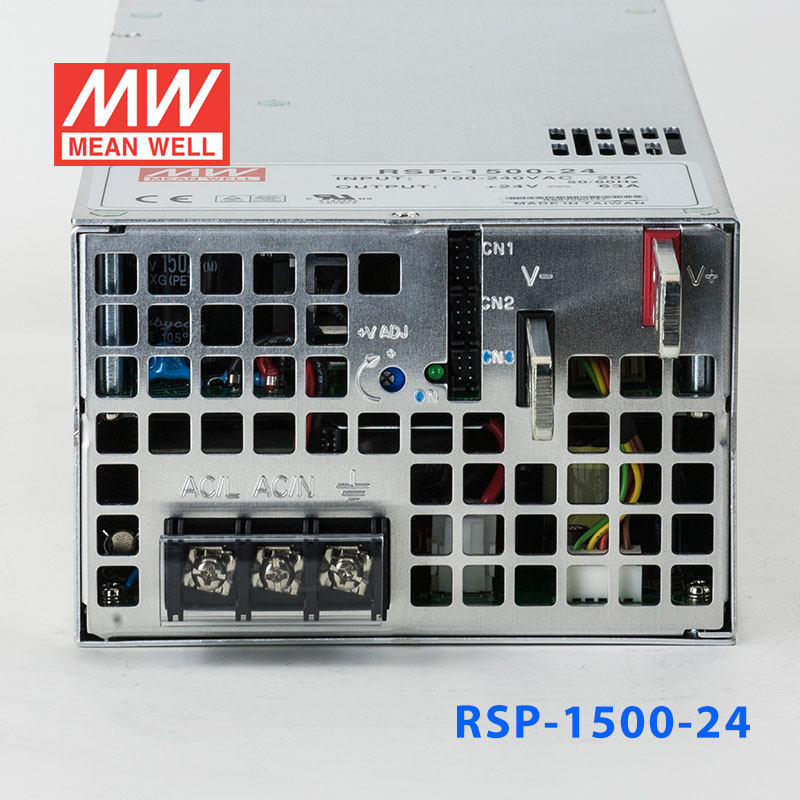

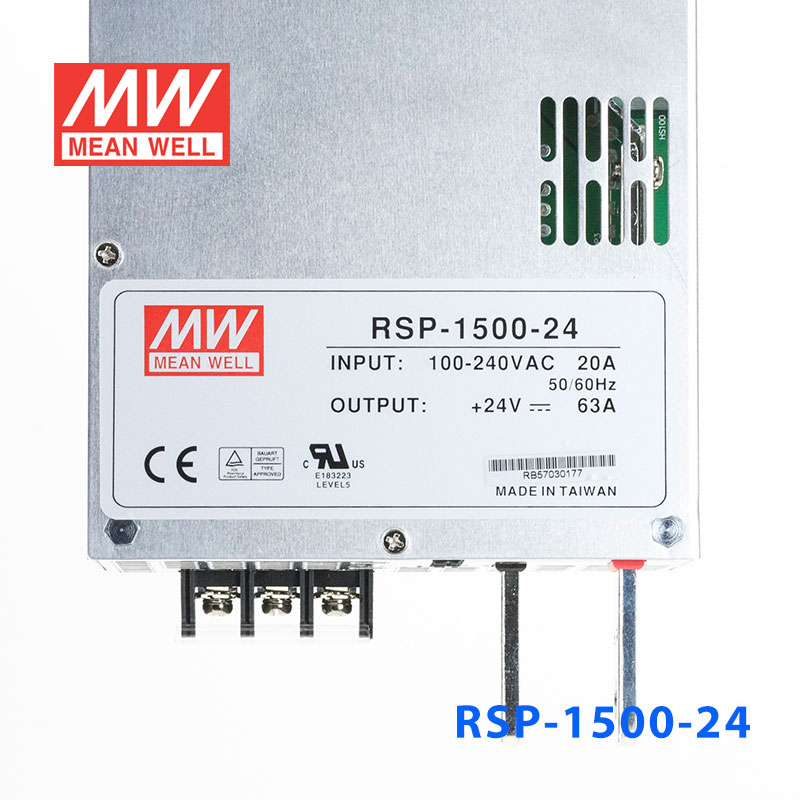

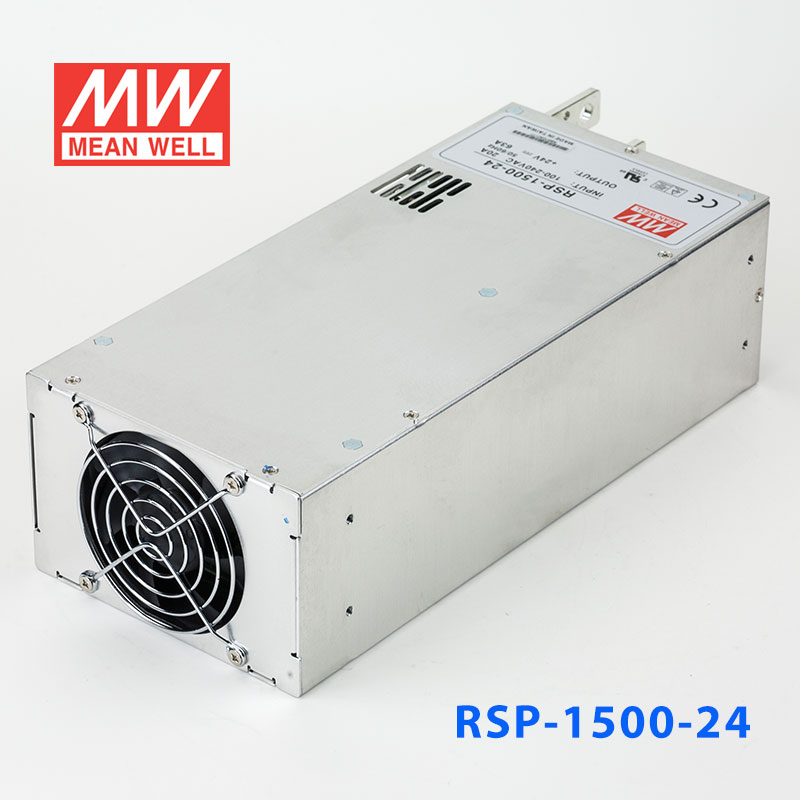

RSP-1500-24 · 24V 单路输出带功率因素校正可并联 开关电源

安规和电磁兼容 (备注4)

安全规范

UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004认证通过

耐压

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

绝缘阻抗

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

电磁兼容发射

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55032 (CISPR32), BSMI CNS15936	Class B/Class A (only for BSMI)
辐射骚扰 Radiated	BS EN/EN55032 (CISPR32), BSMI CNS15936	Class A
谐波电流 Harmonic Current	BS EN/EN61000-3-2	-----
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-----

电磁兼容抗扰度

BS EN/EN55035, BS EN/EN61000-6-2

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
射频电磁场辐射 Radiated	BS EN/EN61000-4-3	Level 3
电快速瞬变脉冲群 EFT / Burst	BS EN/EN61000-4-4	Level 2
浪涌 Surge	BS EN/EN61000-4-5	Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
