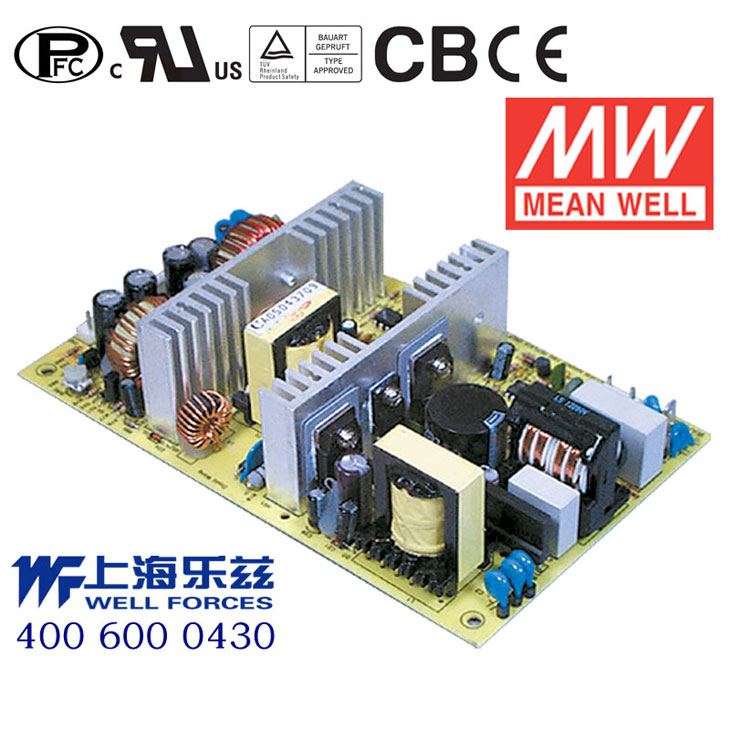

PPQ-100C · +5V +15V 15V 5V 四路输出带PFC功能无外壳PCB板开关电源

Mean Well · Enclosed Switching Power Supply · 101W 5

输出电压: 5 V DC
额定功率: 101 W
输出电流: 10 A

¥250.00市场价 ¥286.00含 13% 增值税

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 PPQ-100C，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE UL EMCTÜV可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 70KHz(Optional)
3 years warranty

规格参数

PPQ-100C参数摘自官方规格书（2012-02-21 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2 CH3 CH4
DC VOLTAGE: CH1: 5V CH2: 15V CH3: -15V CH4: -5V
RATED CURRENT: CH1: 10A CH2: 2.6A CH3: 0.6A CH4: 0.6A
CURRENT RANGE: CH1: 2 ~ 15A CH2: 0.3 ~ 4A CH3: 0 ~ 1A CH4: 0 ~ 1A
RATED POWER (max.): 101W
RIPPLE & NOISE (max.)^注Note.2: CH1: 100mVp-p CH2: 150mVp-p CH3: 100mVp-p CH4: 100mVp-p
VOLTAGE ADJ. RANGE: CH1:4.75 ~ 5.5V
VOLTAGE TOLERANCE^注Note.3: CH1: ±3.0% CH2: +10,-6% CH3: ±5.0% CH4: ±5.0%
LINE REGULATION: CH1: ±1.0% CH2: ±2.0% CH3: ±2.0% CH4: ±1.0%
LOAD REGULATION: CH1: ±2.0% CH2: ±6.0% CH3: ±2.0% CH4: ±2.0%
SETUP, RISE TIME: 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 24ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY(Typ.): 76%
AC CURRENT (Typ.): 1.65A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A
LEAKAGE CURRENT: <3.5mA /240VAC

PROTECTION

OVERLOAD: 105% ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

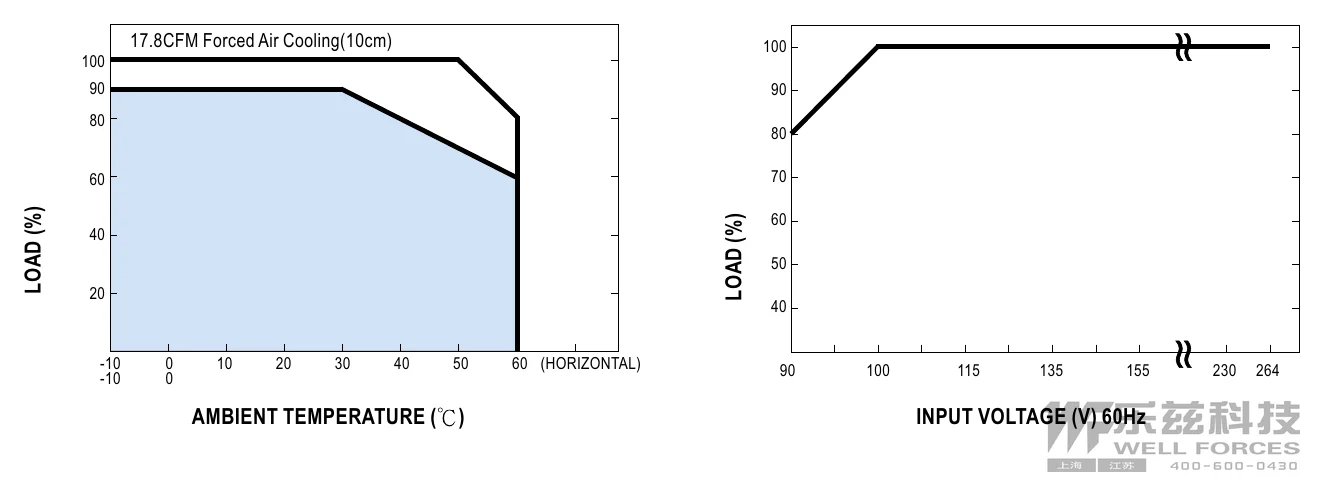

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

OTHERS

MTBF: 162.5K hrs min. MIL-HDBK-217F (25℃)
尺寸: 177.8*107.95*40mm (L*W*H)
PACKING: 0.62Kg; 24pcs/15.9Kg/1.34CUFT

测试条件与备注5

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Heat Sink HS1,HS2 can not be shorted.

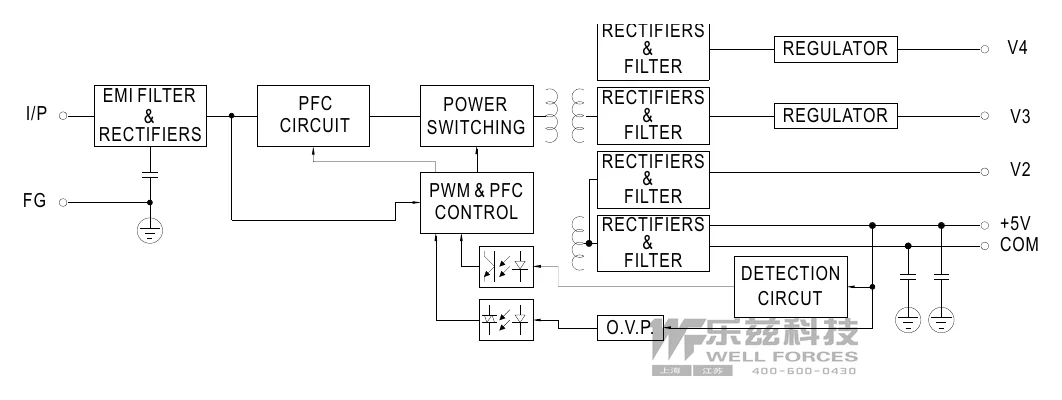

技术图纸

典型应用

■ 典型应用

工业自动化设备 — 适用于PLC控制器、传感器、执行器及各类工业控制系统。
测试与测量仪器 — 为精密测试设备、实验室仪器提供稳定多路电源。
通信设备 — 适用于小型通信基站、网络交换机、数据传输设备。
医疗辅助设备 — 为非生命支持类医疗诊断、分析设备提供电源。
显示与信息系统 — 驱动工业显示屏、信息发布系统及广告牌。
