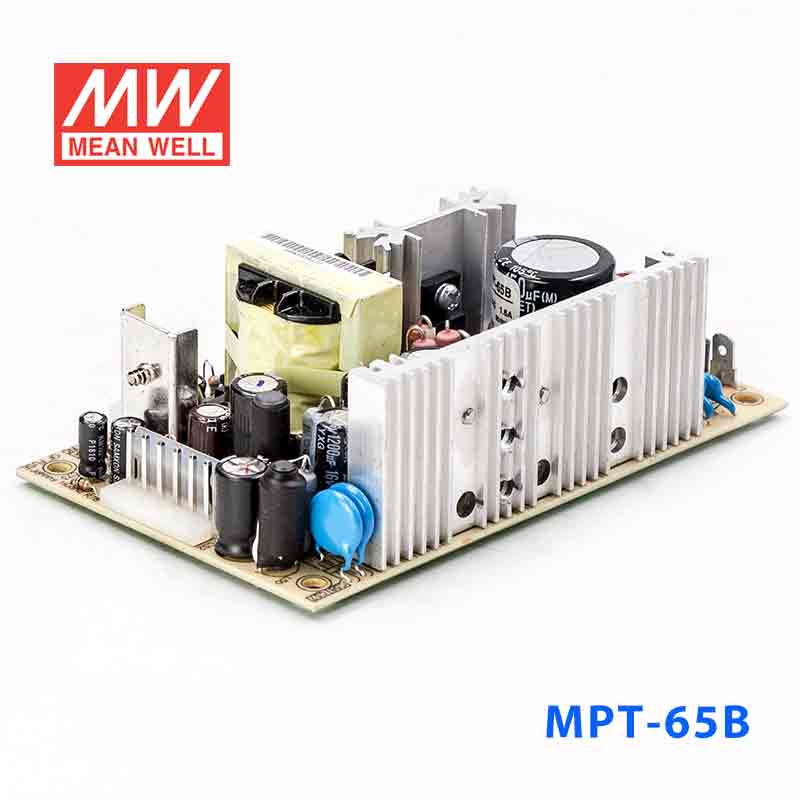

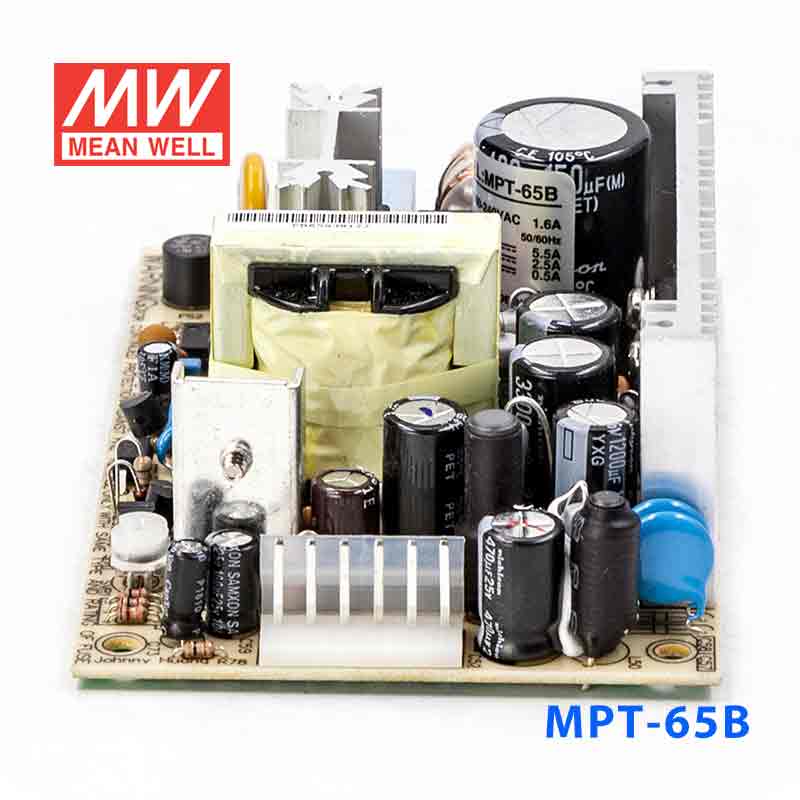

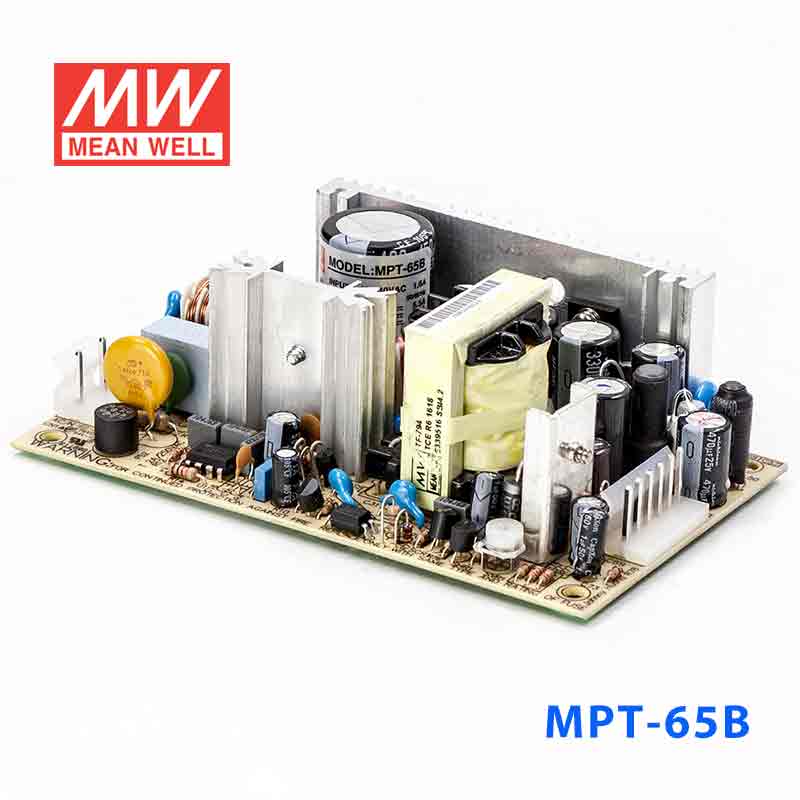

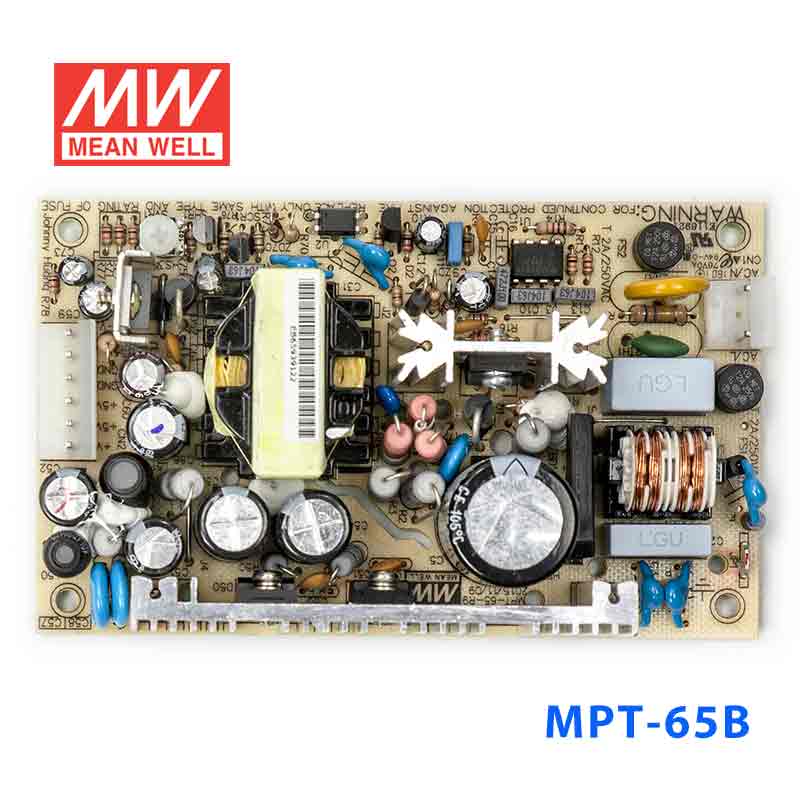

MPT-65B · + + 三路输出微漏电医用无外壳开关电源

Mean Well · Enclosed Switching Power Supply · 63.5W 5

输出电压: 5 V DC
额定功率: 63.5 W
输出电流: 5.5 A

¥208.00含 13% 增值税

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 MPT-65B，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CBCETÜVUL EMC可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Low leakage current <250μA
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
100% full load burn-in test
Fixed switching frequency at 45KHz
3 years warranty

规格参数

MPT-65B参数摘自官方规格书（2012-11-28 版）下载规格书 PDF

OUTPUT

OUTPUT NUMBER: CH1 CH2 CH3
DC VOLTAGE: CH1: 5V CH2: 12V CH3: -12V
RATED CURRENT: CH1: 5.5A CH2: 2.5A CH3: 0.5A
CURRENT RANGE: CH1: 0.4 ~ 7A CH2: 0.2 ~ 3.2A CH3: 0 ~ 0.7A
RATED POWER: 63.5W
OUTPUT POWER (max.): 72W with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)^注Note.2: CH1: 60mVp-p CH2: 160mVp-p CH3: 100mVp-p
VOLTAGE ADJ. RANGE: CH1:4.5 ~ 5.5V
VOLTAGE TOLERANCE^注Note.3: CH1: ±4.0% CH2: +10,-7% CH3: ±5.0%
LINE REGULATION: CH1: ±1.0% CH2: ±2.0% CH3: ±1.0%
LOAD REGULATION: CH1: ±3.0% CH2: ±4.0% CH3: ±1.0%
SETUP, RISE TIME: 800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 440Hz
EFFICIENCY(Typ.): 74%
AC CURRENT (Typ.): 1.6A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT^注Note.7: Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC

PROTECTION

OVERLOAD: 73 ~ 95W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +55℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃) on +5V output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF: 275.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*42mm (L*W*H)
PACKING: 0.27Kg; 54pcs/16.8Kg/1.35CUFT

测试条件与备注7

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Mounting holes M1 and M2 should be grounded for EMI purposes.
Heat Sink HS1,HS2 can not be shorted.
Touch current was measured from primary input to DC output.

技术图纸

典型应用

■ 典型应用

医疗诊断设备 — 超声波诊断仪、内窥镜系统、血液分析仪等。
医疗监护设备 — 病人监护仪、心电图机、呼吸机辅助系统。
实验室仪器 — 生化分析仪、光谱仪、培养箱控制系统。
工业控制系统 — 对电源稳定性及安全性有较高要求的工业自动化设备。
测试测量设备 — 精密电子测试台、数据采集系统。
