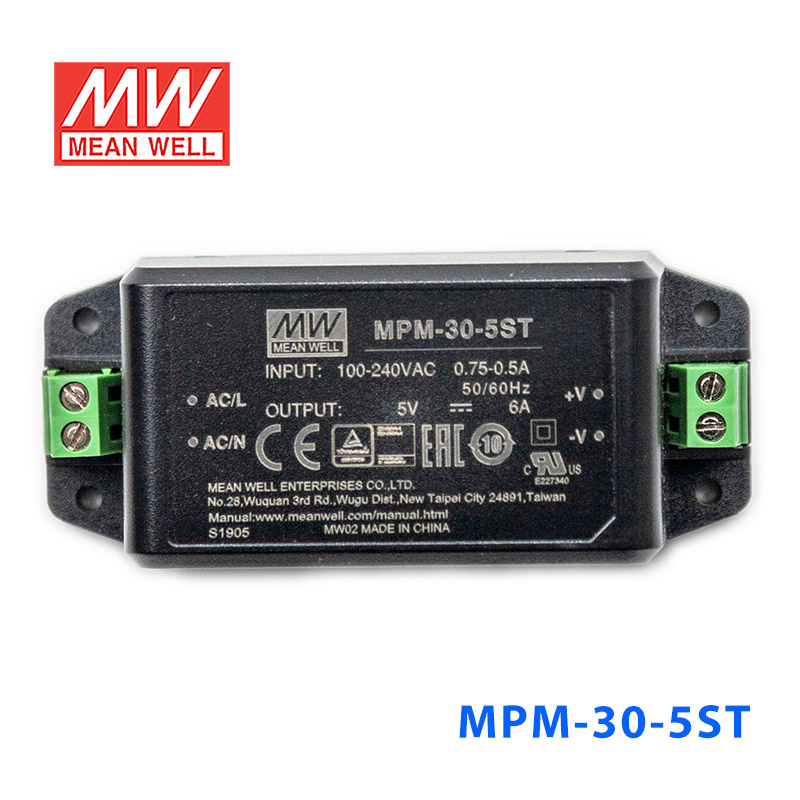

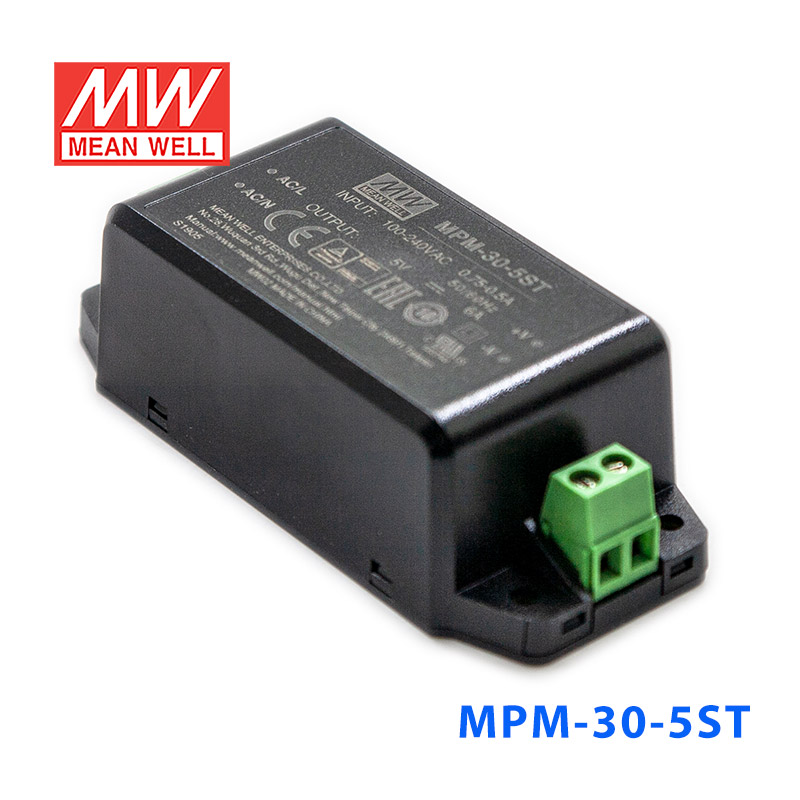

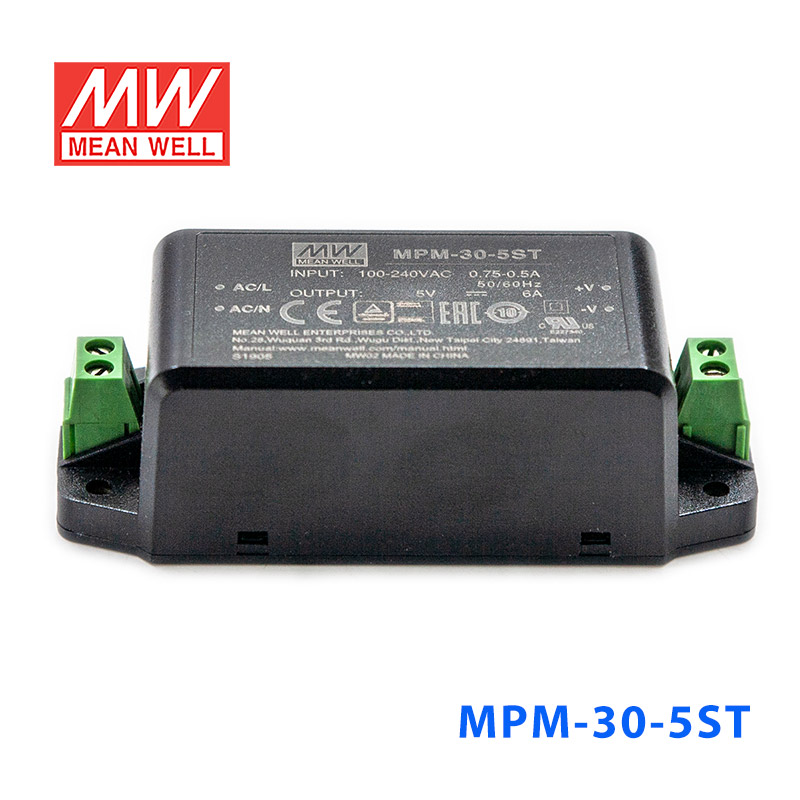

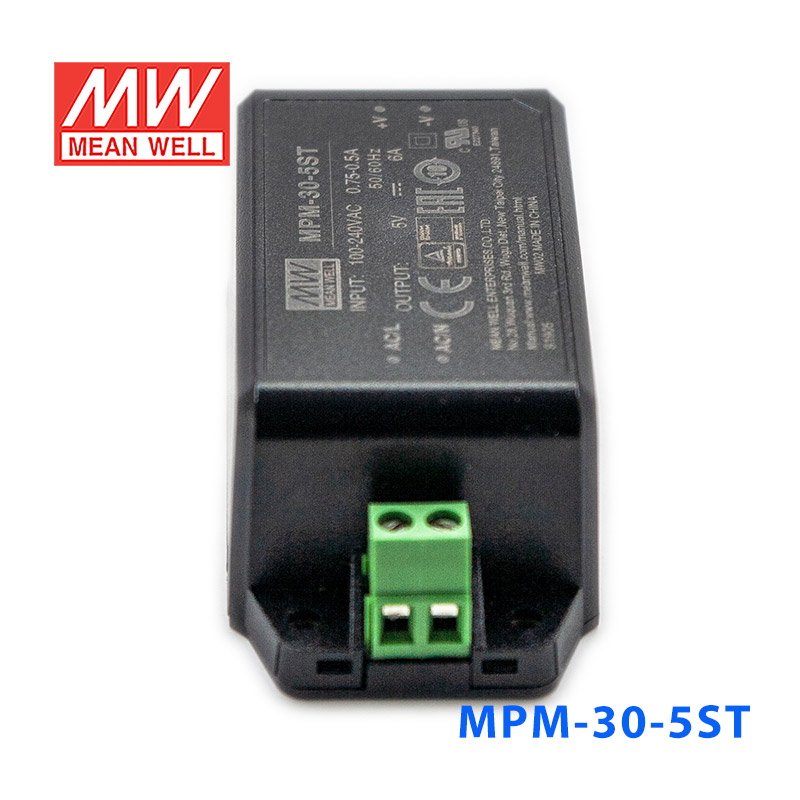

MPM-30-5ST · 台湾 80~ 入 绿色医疗基板型电源

安规和电磁兼容

安全规范

IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 认证通过;设计参照 BS EN/EN60335-1(根据要求)

绝缘防护等级

一次侧-二次侧: 2xMOPP

耐压

I/P-O/P:4KVAC

绝缘阻抗

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

电磁兼容发射

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55011 (CISPR11)	Class B
辐射骚扰 Radiated	BS EN/EN55011 (CISPR11)	Class B
谐波电流 Harmonic Current	BS EN/EN61000-3-2	Class A
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-----

电磁兼容抗扰度

BS EN/EN55035, BS EN/EN60601-1-2

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
