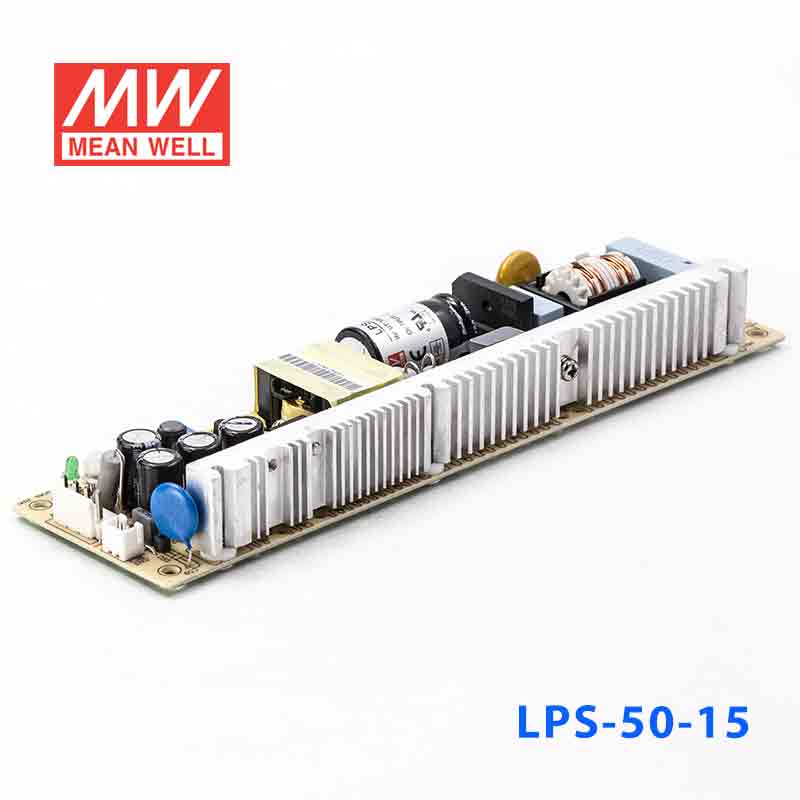

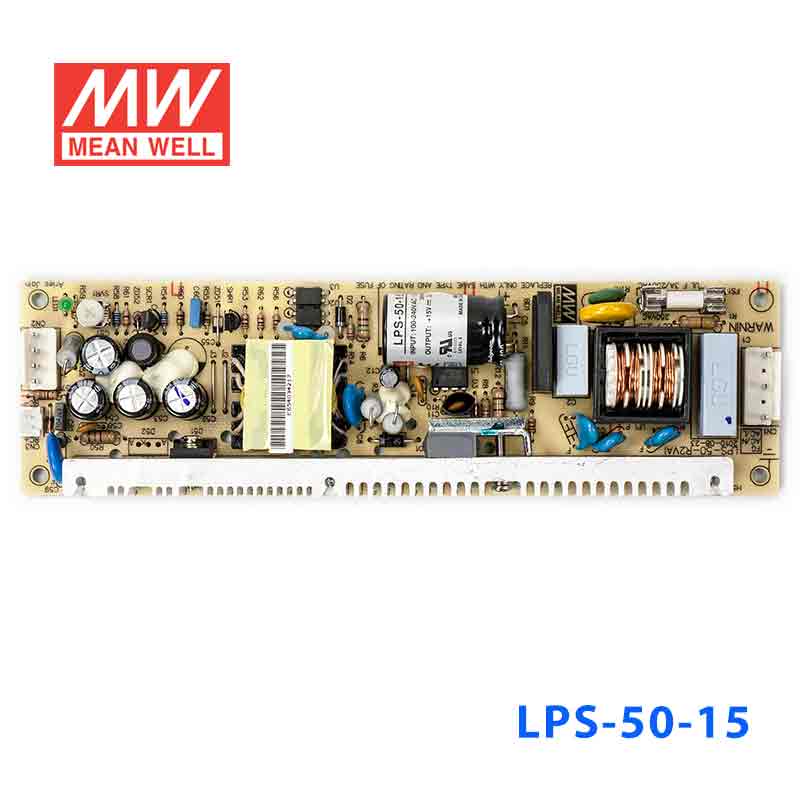

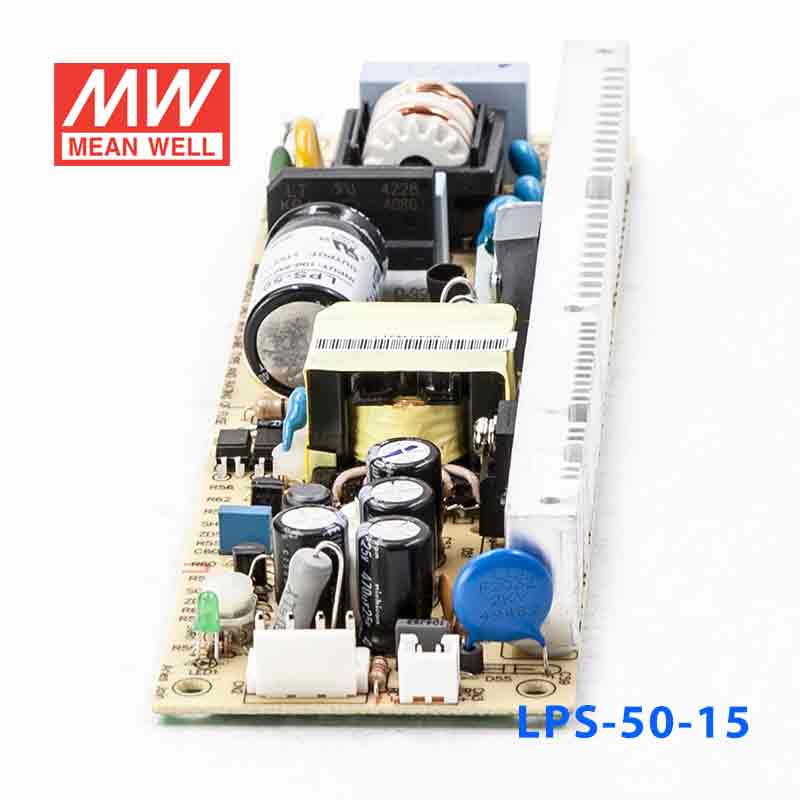

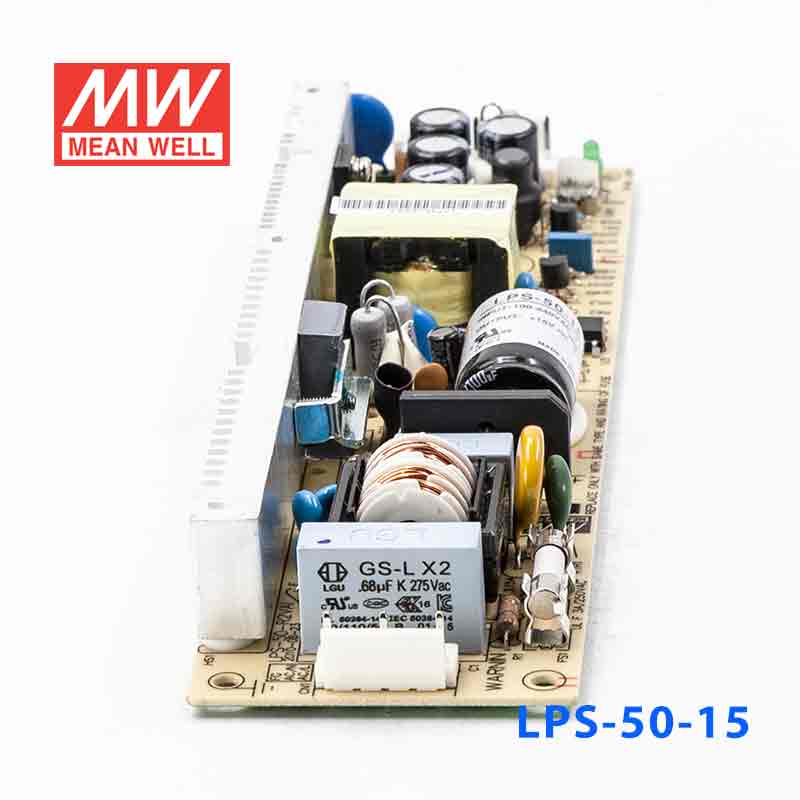

LPS-50-15 · 单路输出无外壳窄条PCB板开关电源

Mean Well · Enclosed Switching Power Supply · 51W 15

输出电压: 15 V DC
额定功率: 51 W
输出电流: 3.4 A

¥104.00含 13% 增值税

选择型号 — LPS-50系列LPS-50-15

LPS-50-3.333W · 3.3V · 10A LPS-50-550W · 5V · 10A LPS-50-1250.4W · 12V · 4.2A

LPS-50-1551W · 15V · 3.4A

LPS-50-2450.4W · 24V · 2.1A LPS-50-4852.8W · 48V · 1.1A

现货无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 LPS-50-15，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE EAC TÜV UL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Small and compact size
Built-in remote ON-OFF control
LED indicator for power on
100% full load burn-in test
Low profile:23mm thickness
2 years warranty

规格参数

LPS-50-15参数摘自官方规格书（2024-10-30 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 3.4A
CURRENT RANGE: 0 ~ 4.1A
RATED POWER: 51W
PEAK LOAD(10sec.)^注Note.4: 61.5W
RIPPLE & NOISE (max.)^注Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^注Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 500ms, 40ms/230VAC 500ms, 40ms/115VAC at full load
HOLD UP TIME (Typ.): 70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 84%
AC CURRENT (Typ.) 115VAC: 1.2A
AC CURRENT (Typ.) 230VAC: 0.8A
INRUSH CURRENT (Typ.): COLD START 18A/115VAC 35A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 122 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

REMOTE ON/OFF: RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF: 3138.2K hrs min. Telcordia SR-332 (Bellcore) ; 491.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195*55*23mm (L*W*H)
PACKING: 0.24Kg; 48pcs/12.5Kg/0.87CUFT

测试条件与备注6

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
