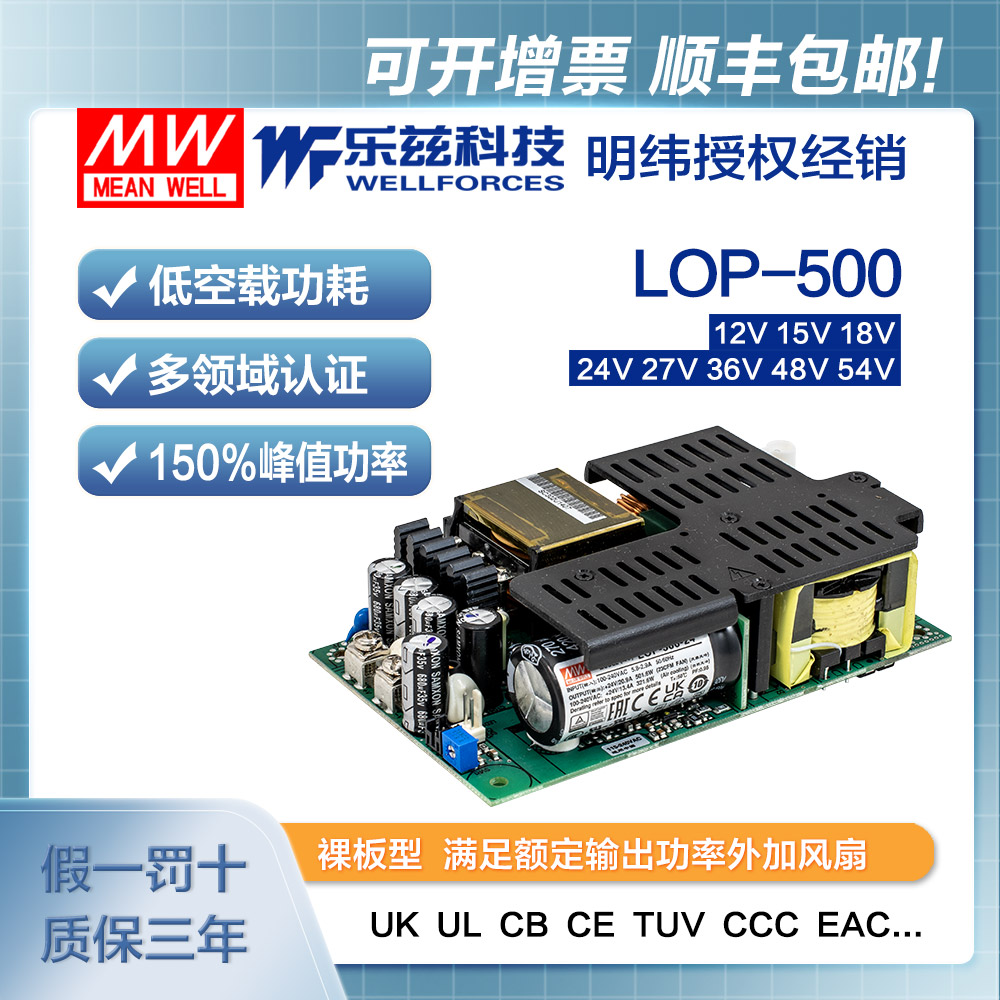

LOP-500-24 · 裸板电源 安规CCC认证

安规和电磁兼容

安全规范

CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 认证通过.

过电压类别

IEC/EN 61558-1/-2-16(OVC Ⅲ, 海拔高达 2000M ) IEC/EN/UL 62368-1 (OVC Ⅱ, 海拔高达 5000M ) IEC/EN 60335-1 (OVC Ⅱ, 海拔高达 5000M ) IEC/EN 60601-1 (OVC Ⅱ, 海拔高达 4000M )

保护性超低电压

IEC/EN61558-2-16 (SELV, 12~48V ) IEC/EN/UL 62368-1 (SELV / ES1, 12~48V )

耐压

I/P-O/P:4KVac I/P-FG:2KVac O/P-FG:1.5KVac

绝缘阻抗

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

电磁兼容发射

项目	标准	测试等级
Conducted & Radiated	BS EN/EN55032(CISPR32)	ClassⅠ: Class B , Class Ⅱ: Class A
Conducted & Radiated	BS EN/EN55014(CISPR32)	ClassⅠ: Class B
谐波电流 Harmonic Current	BS EN/EN61000-3-2	Class A
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-------

电磁兼容抗扰度

BS EN/EN55035,BS EN/ EN61000-6-2

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV
浪涌 Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3, 10V
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 100% dip 1 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
