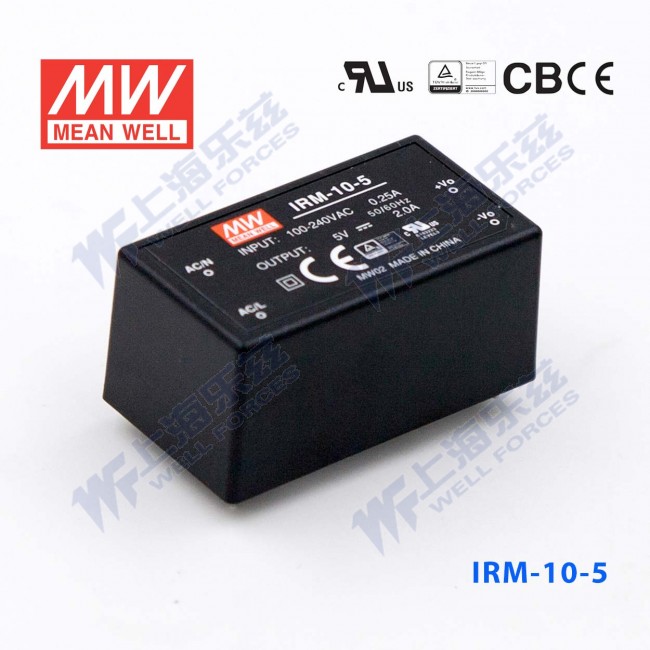

IRM-10-5 · 单路输出高能效裸板型 开关电源

安规和电磁兼容

安全规范

IEC62368-1,IEC61558-1/-2-16,UL62368-1,TUV BS EN/EN62368-1,BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 认证通过

过压类别

IEC/EN 61558-1/-2-16(OVC Ⅲ, 海拔高达2000米); IEC/EN/UL 62368-1(OVC Ⅱ, 海拔高达5000米)

耐压

I/P-O/P:4.2KVac

绝缘阻抗

I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH

电磁兼容发射

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55032(CISPR32), CNS15936	Class B
辐射骚扰 Radiated	BS EN/EN55032(CISPR32), CNS15936	Class B
Harmonic Current (备注 5)	BS EN/EN61000-3-2	Class A
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-------

电磁兼容抗扰度

BS EN/EN55035, BS EN/EN61000-6-2

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, criteria A
浪涌 Surge	BS EN/EN61000-4-5	Level 3,1KV/L-N, criteria A
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3, criteria A
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
