ICL-28L · 台湾长条型接线端子安装连续交流浪涌电流限制器

Mean Well · Enclosed Switching Power Supply

输出电流: 28 A

¥216.00含 13% 增值税

选择型号 — ICL-28系列ICL-28L

ICL-28L28A

ICL-28R28A

现货无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 ICL-28L，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CEEACEMCUKCAUK可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

The ICL-28 is a 28A inrush current limiter that can be used to reduce the high starting current due to capacitive load or inductive causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.

产品特点

48A inrush limiting current, 28A continuous
180~264VAC AC input
Integrated bypass relay, no simple NTC
Internal thermal protection
Installed on DIN Rail TS-35/7.5 or 15 (ICL-28R)
-30~+70°C wide working temperature
Over voltage category Ⅲ
Operating altitude up to 5000 meters(Note. 2)

规格参数

ICL-28L参数摘自官方规格书（2019-08-30 版）下载规格书 PDF

AC INPUT VOLTAGE: 180 ~ 264VAC
AC LINE FREQUENCY: 47 ~ 63Hz
INRUSH CURRENT LIMITING: 48A
AC CONTINUOUS RATED CURRENT: 28A continuous
AC INPUT POWER: 6440VA (28A x 230VAC)
AC INPUT CONSUMPTION: <2W at 264VAC, 50Hz input
INTERNAL RELAY LIMITING TIME (TON POWER ON): 150±50ms

INTERNAL RELAY

LIMITING CYCLES: 3 cycle / 1 min
RELEASE TIME: 100±50ms

INTERNAL PROTECTION: Thermal fuse protects overload and fire
ALLOWED CAPACITIVE LOAD: 6000μF max.

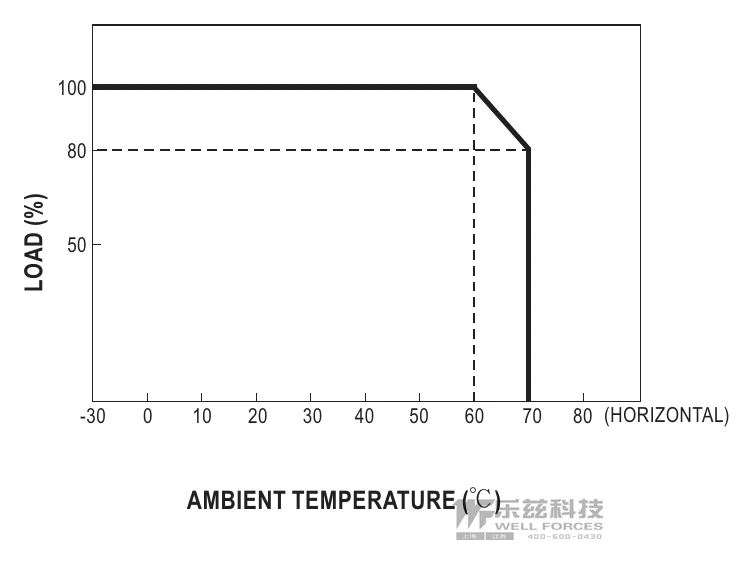

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE^{注Note. 2}: 5000 meters
OVER VOLTAGE CATEGORY: Ⅲ; According to IEC62368-1; altitude up to 5000 meters
POLLUTION DEGREE: 2
SAFETY STANDARDS: IEC62368-1(LVD)

SAFETY & EMC (Note.3)

EMC EMISSION: 项目标准测试等级
Conducted EN55032 Class B
Radiated EN55032 Class B
Harmonic Current EN61000-3-2 Class A
Voltage Flicker EN61000-3-3 -------
EMC IMMUNITY: EN55024, EN55035,EN61000-6-2
项目标准测试等级
ESD EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility EN61000-4-3 Level 3, criteria A
EFT/Burest EN61000-4-4 Level 3, criteria A
Surge EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted EN61000-4-6 Level 3, criteria A
Magnetic Field EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

项目	标准	测试等级
Conducted	EN55032	Class B
Radiated	EN55032	Class B
Harmonic Current	EN61000-3-2	Class A
Voltage Flicker	EN61000-3-3	-------

项目	标准	测试等级
ESD	EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	EN61000-4-3	Level 3, criteria A
EFT/Burest	EN61000-4-4	Level 3, criteria A
Surge	EN61000-4-5	Level 4,2KV/L-N, criteria A
Conducted	EN61000-4-6	Level 3, criteria A
Magnetic Field	EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

MTBF: 1626.62K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 175*42*24mm (L*W*H)
PACKING: 0.155Kg; 84pcs/14Kg/0.91CUFT

测试条件与备注3

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

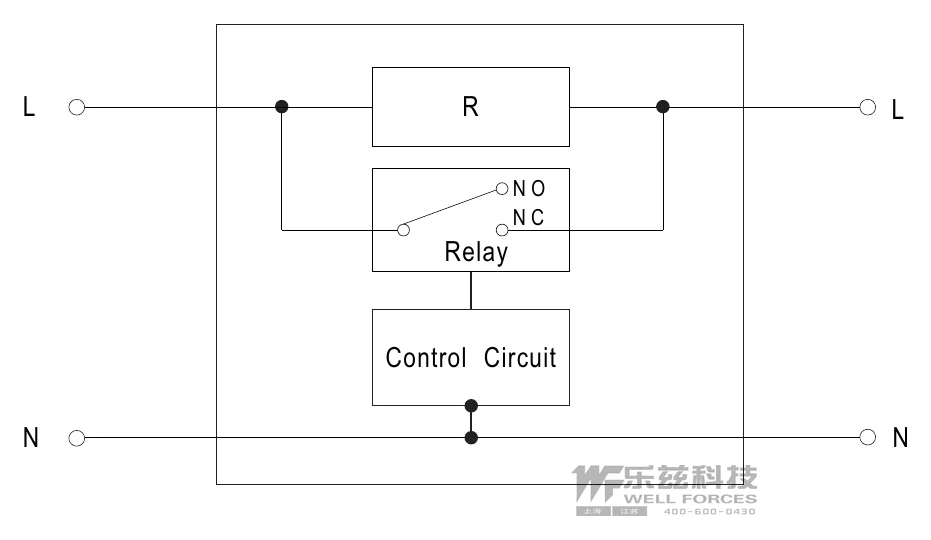

技术图纸

典型应用

Allow connecting multiple power supply at same line
Allows smaller and faster Circuit Breaker
Inductive and capacitive load
Protects against unintended tigger of circuit breaker
