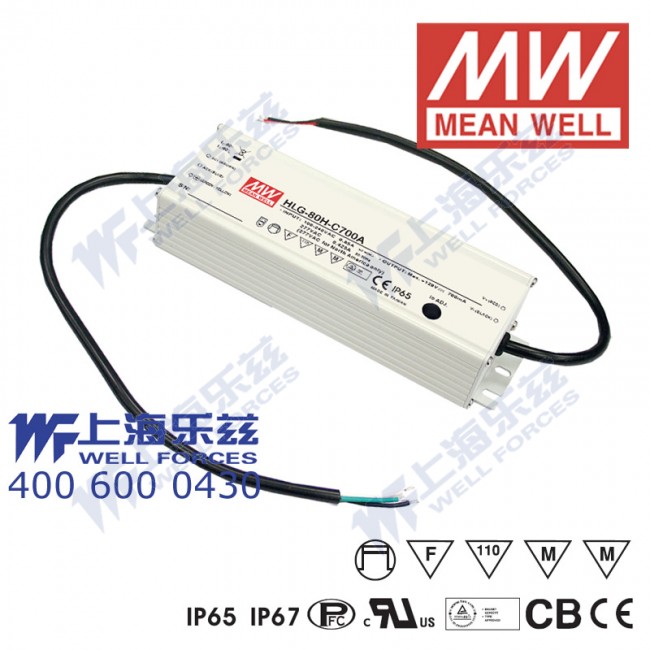

HLG-80H-C350B · 宽范围输入 167~ 350mA 强耐环境高压恒流输出PFC高效铝壳IP67防水LED电源

控制线三合一调光

输出电压: 257 V DC
额定功率: 90 W
输出电流: 350m A

¥215.00市场价 ¥279.50含 13% 增值税

选择型号 — HLG-80H-C系列HLG-80H-C350B

HLG-80H-C350A90W · 257V · 350MA

HLG-80H-C350B90W · 257V · 350MA

HLG-80H-C350D60W HLG-80H-C700A90.3W · 129V · 700MA HLG-80H-C700B90.3W · 129V · 700MA HLG-80H-C700D60W

即将售罄无货

现货 · 上海仓 5 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 HLG-80H-C350B，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CCC CE EAC PSE可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

HLG-80H-C series is a 90W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-80H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

产品特点

Constant Current mode output
Metal housing with Class I design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime>62000 hours
7 years warranty

规格参数

HLG-80H-C350B参数摘自官方规格书（2019-10-15 版）下载规格书 PDF

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 89.95W
CONSTANT CURRENT REGION^注Note.2: A-Type : 128V ~ 257V B-Type : 167V ~ 257V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 210 ~ 350mA
CURRENT RIPPLE: 8.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^注Note.4: 500ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^注Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 91.5%
AC CURRENT (Typ.): 0.88A / 115VAC 0.45A / 230VAC 0.38A / 277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=410μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 300 ~ 340V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^注Note.6: Ul8750, CSA C22.2 No. 250.0-08, EN/AS/NZS 61347-1,EN/AS/NZS 61347-2-13 independent,GB19510.1,GB19510.14, EAC TP TC 004,IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^注Note.6: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 861.8K hrs min. Telcordia SR-332 (Bellcore) ; 309.7K hrs min. MIL-HDBK-217F (25℃)

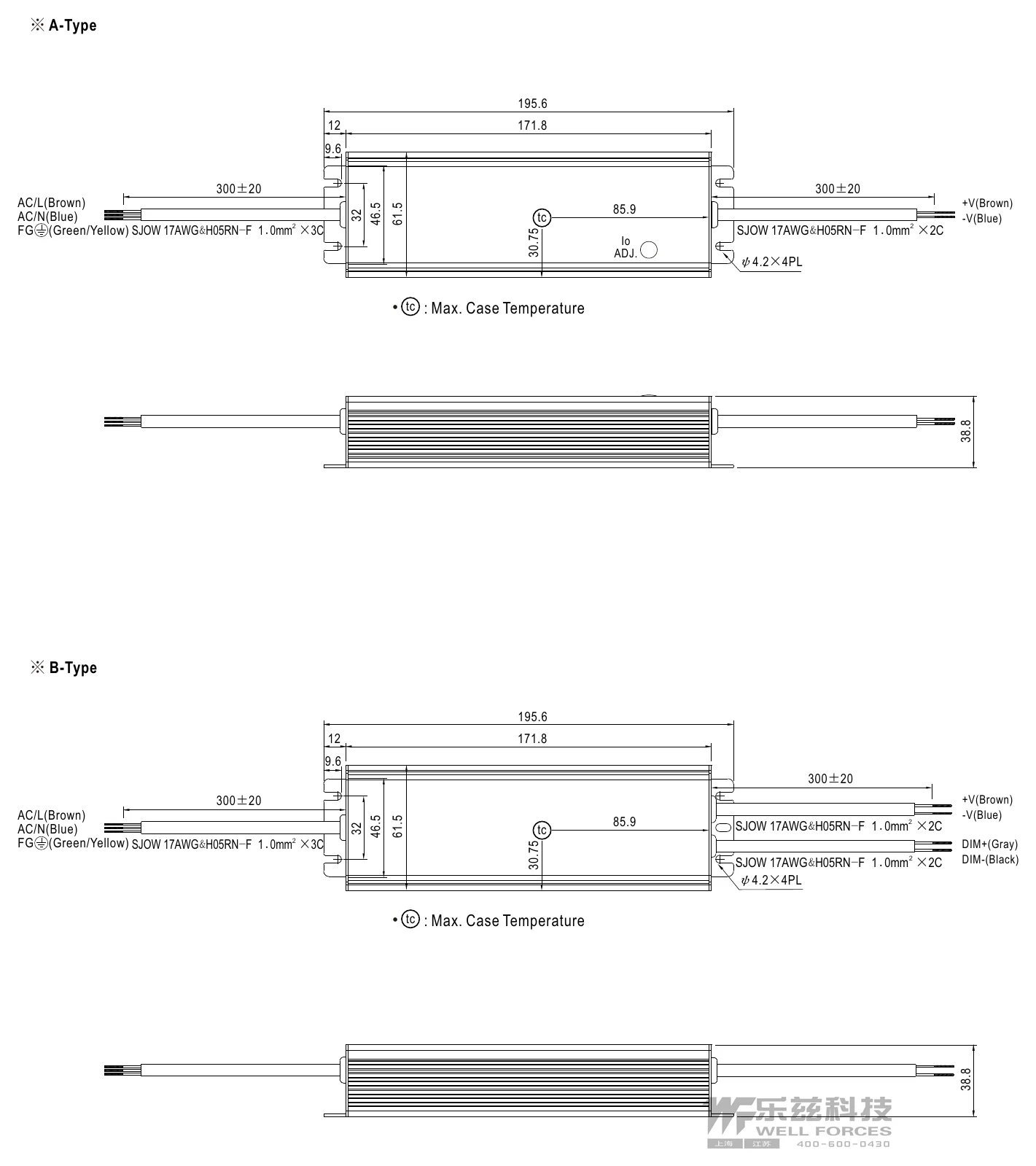

DIMENSION: 195.6*61.5*38.8mm (L*W*H)

测试条件与备注10

All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
Please refer to "DRIVING METHODS OF LED MODULE".
De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

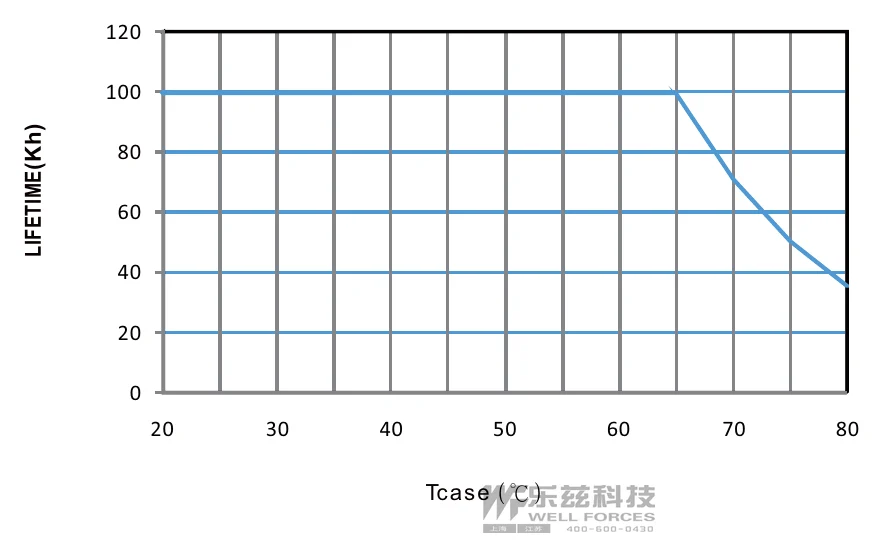

This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly (tc) point (or TMP, per DLC), is about 70℃ or less.
Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

技术图纸

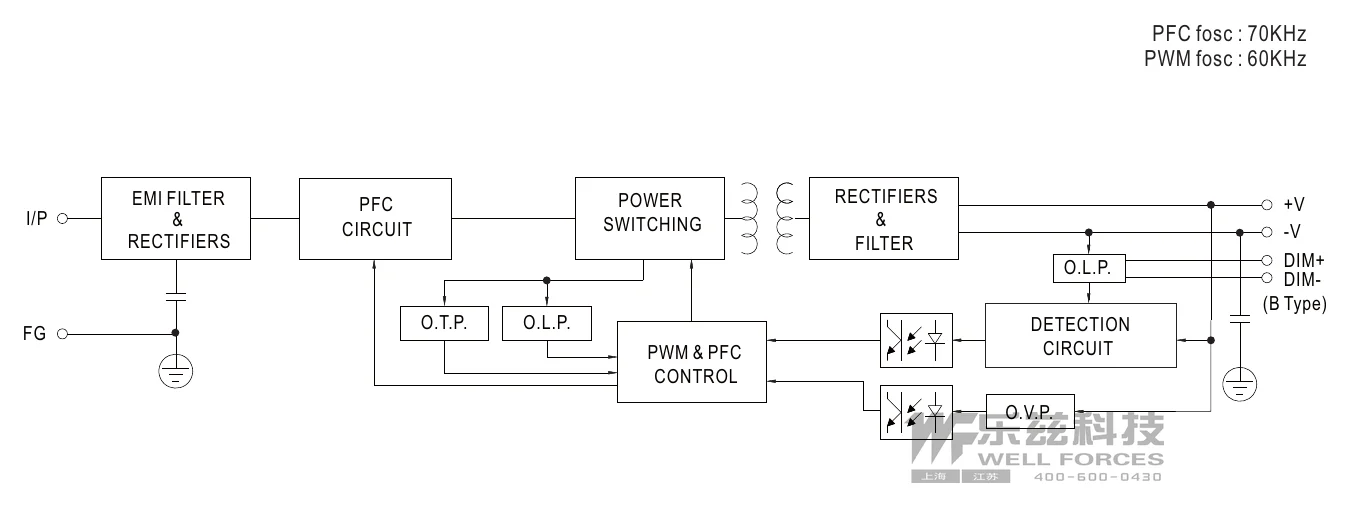

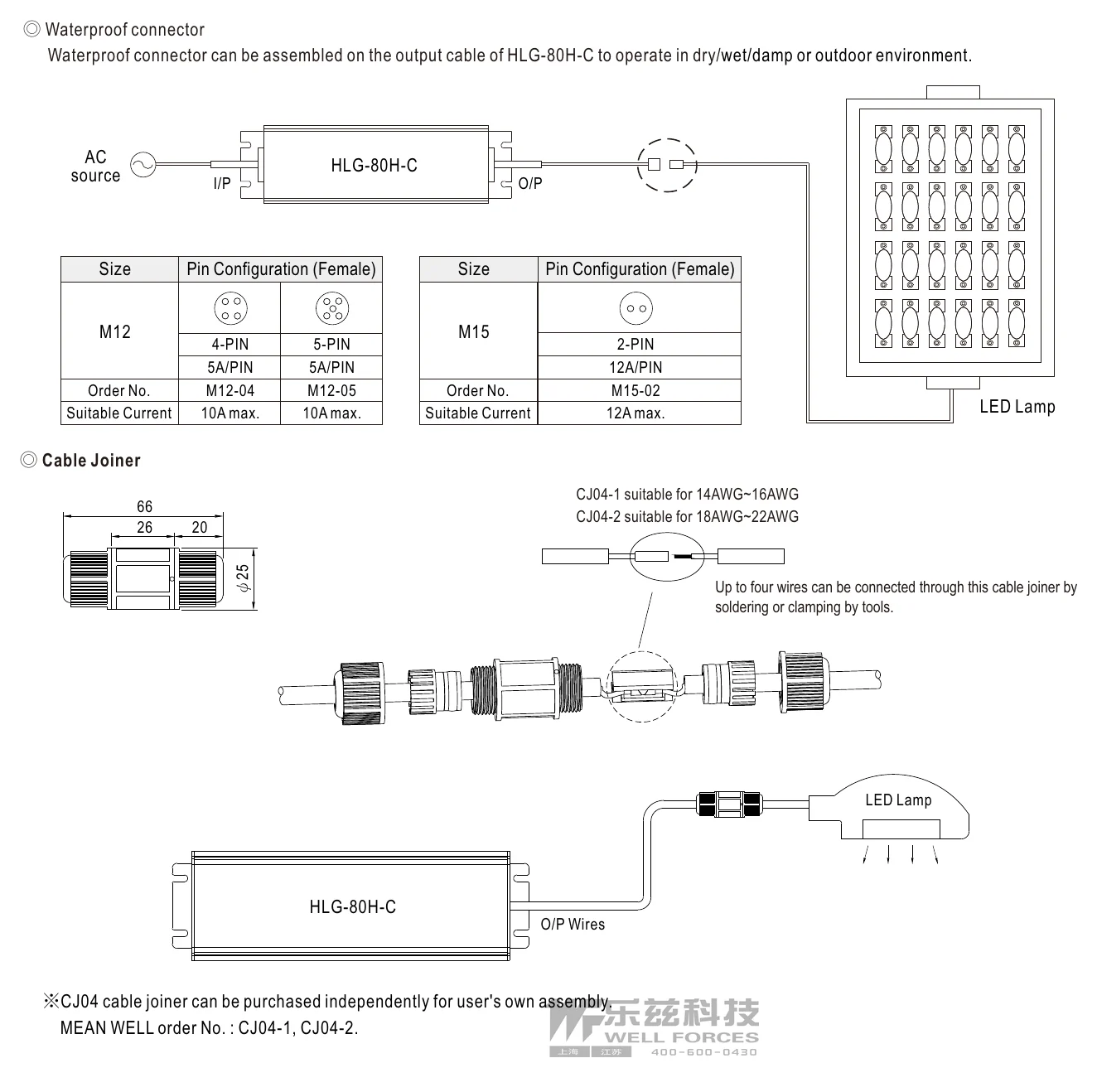

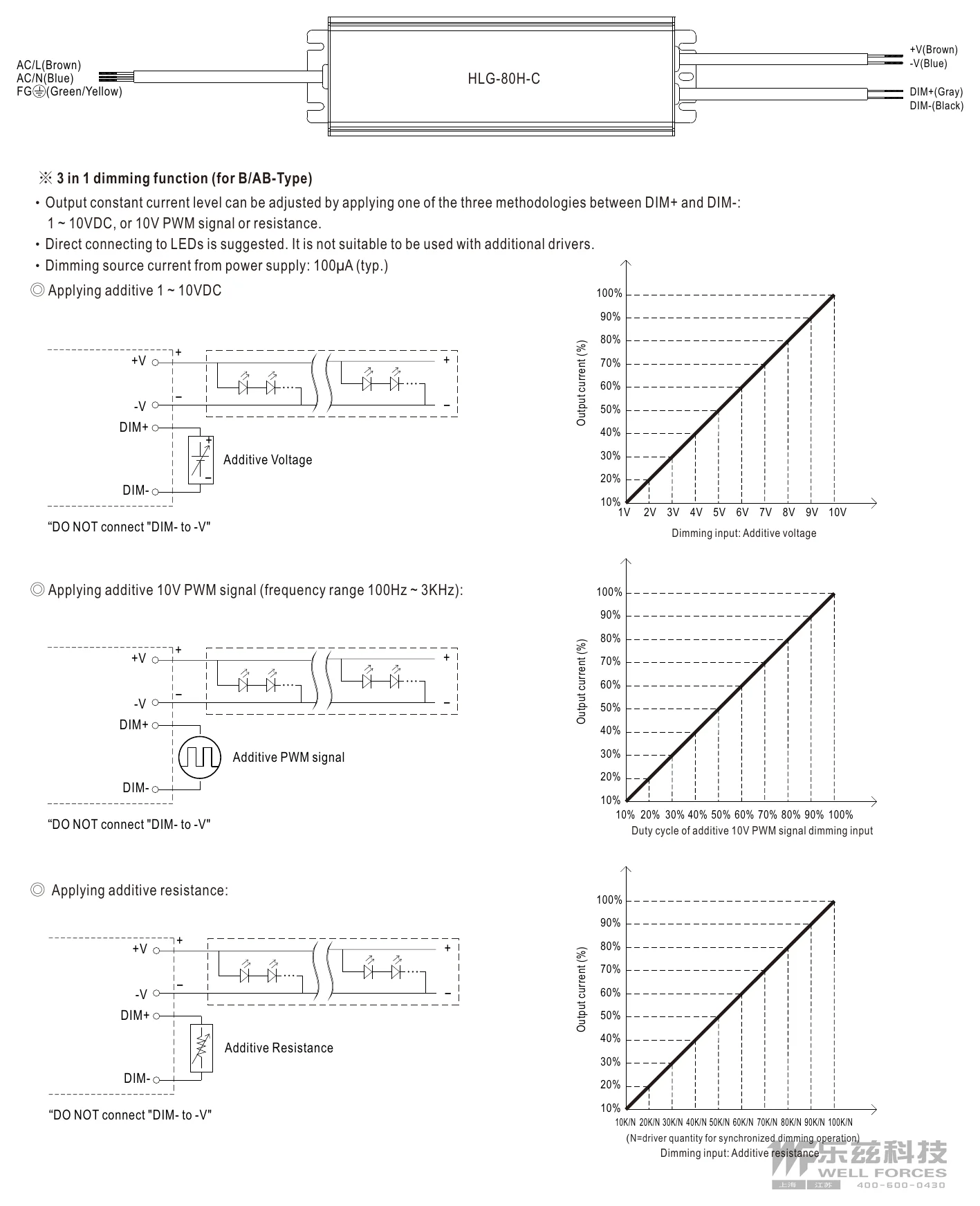

HLG-80H-C350B LED模块驱动方式 — LED模块驱动方式左右滑动 · 点击查看大图

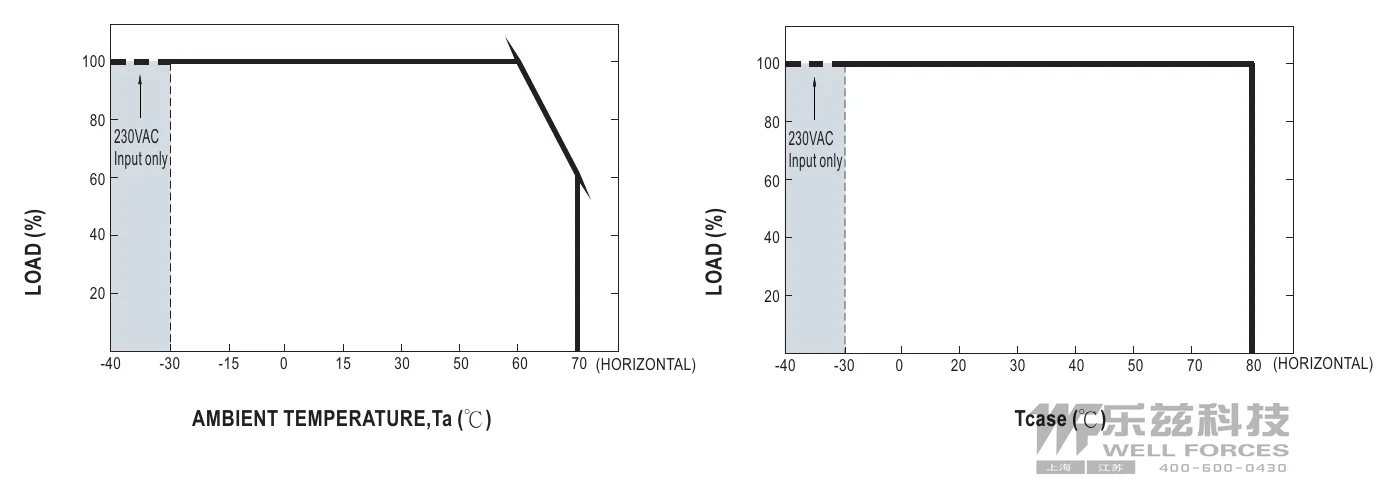

HLG-80H-C350B 输出负载vs温度 — 输出负载vs温度左右滑动 · 点击查看大图

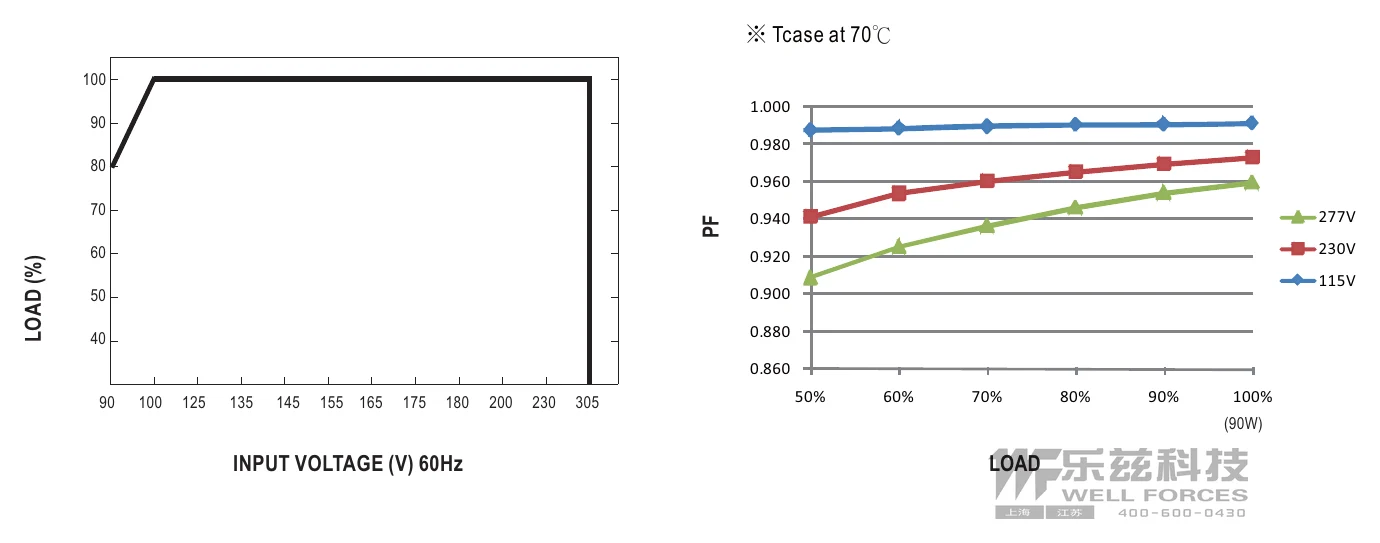

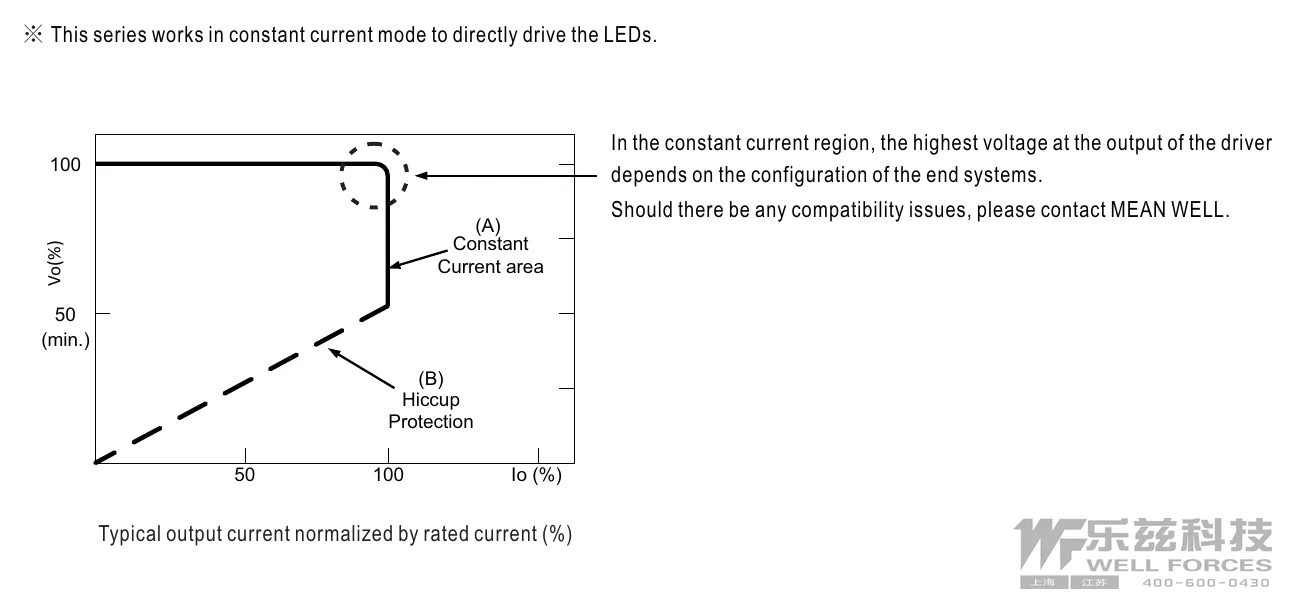

HLG-80H-C350B 静态特性曲线 — 静态特性曲线左右滑动 · 点击查看大图

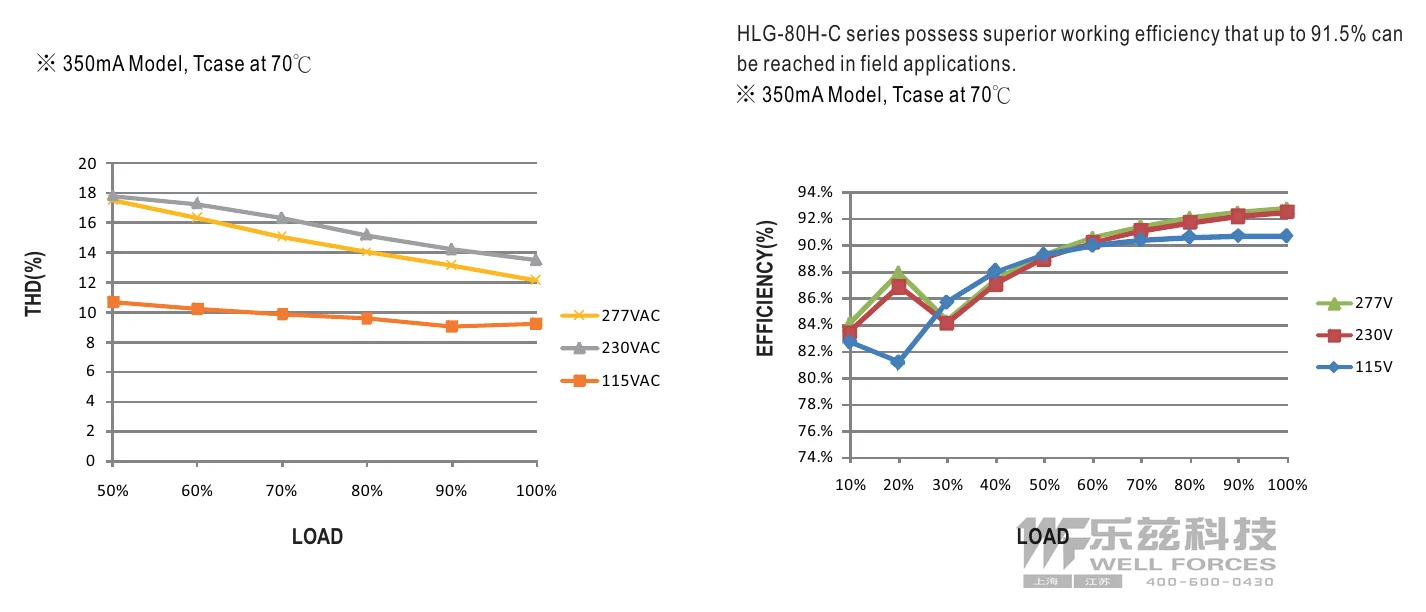

HLG-80H-C350B 总谐波失真特性曲线(THD) — 总谐波失真特性曲线(THD)左右滑动 · 点击查看大图

典型应用

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED greenhouse lighting
LED bay lighting

资料下载

规格书1

HLG-80H-C350B 规格书PDF下载

3D 图档1

HLG-80H-C350B 3D 图档ZIP下载

认证证书13

HLG-80H-GlobalMark认证证书HLG-80H-GlobalMark-cer.pdfPDF下载

HLG-80H-RRA认证证书HLG-80H-RRA-cer.pdfPDF下载

KC认证证书HLG-80H-KC-cer.pdfPDF下载

PSE认证证书HLG-80H-PSE-cer.pdfPDF下载

CCC认证证书HLG-80H-CCC-cer.pdfPDF下载

BIS认证证书LCM-25,40,60(DA),CEN-100,60,75,HLG-120,150,80H,120H,150H-BIS-cer.pdfPDF下载

UL认证证书E334687-UL-CER.PDFPDF下载

TÜV认证证书HLG,HLN-80H-TUV-CER.PDFPDF下载

EAC认证证书EAC-cer.pdfPDF下载

CB认证证书HLG,HLN-80H-CB-CER.PDFPDF下载

EMC认证证书HLG,HLN,HLP-80H-EMC-CER.PDFPDF下载

CE认证证书HLG,HLN,HLP-80H-CE-DEC.PDFPDF下载

UK认证证书HLG,HLN,HLP-80H-UK-dec.pdfPDF下载
