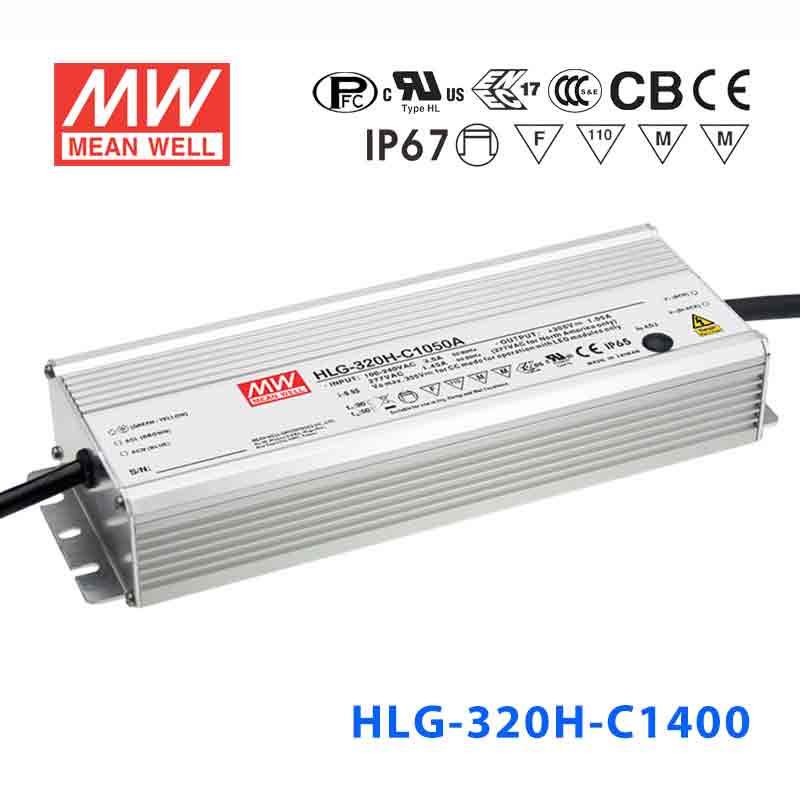

HLG-320H-C1400DA · 宽范围输入 114~ 1400mA 强耐环境高压恒流输出PFC高效铝壳IP67防水LED电源

Mean Well · Enclosed Switching Power Supply · 320.6W 234

输出电压: 234 V DC
额定功率: 320.6 W
输出电流: 1400m A

¥666.00市场价 ¥865.80含 13% 增值税

选择型号 — HLG-320H-C系列HLG-320H-C1400DA

HLG-320H-C700A299.6W · 435V · 700MA HLG-320H-C700B299.6W · 435V · 700MA HLG-320H-C700D2320W HLG-320H-C700DA299.6W · 435V · 700MA HLG-320H-C1050A320.3W · 311V · 1050MA HLG-320H-C1050B320.3W · 311V · 1050MA HLG-320H-C1050D2320W HLG-320H-C1050DA320.3W · 311V · 1050MA HLG-320H-C1400A320.6W · 234V · 1400MA HLG-320H-C1400B320.6W · 234V · 1400MA HLG-320H-C1400D2320W

HLG-320H-C1400DA320.6W · 234V · 1400MA

HLG-320H-C1750A320.3W · 187V · 1750MA HLG-320H-C1750B320.3W · 187V · 1750MA HLG-320H-C1750D2320W HLG-320H-C1750DA320.3W · 187V · 1750MA HLG-320H-C2100A319.2W · 156V · 2100MA HLG-320H-C2100B319.2W · 156V · 2100MA HLG-320H-C2100D2320W HLG-320H-C2100DA319.2W · 156V · 2100MA HLG-320H-C2800A319.2W · 118V · 2800MA HLG-320H-C2800B319.2W · 118V · 2800MA HLG-320H-C2800D2320W HLG-320H-C2800DA319.2W · 118V · 2800MA HLG-320H-C3500A318.5W · 95V · 3500MA HLG-320H-C3500B318.5W · 95V · 3500MA HLG-320H-C3500D2320W HLG-320H-C3500DA318.5W · 95V · 3500MA

现货即将售罄无货

暂时缺货 · 上海仓 0 件可下单预订，我们会与您确认货期

缺货
预订

数量

关于 HLG-320H-C1400DA，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CCC CE EACENEC可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

产品特点

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>62000 hours
7 years warranty

规格参数

HLG-320H-C1400DA参数摘自官方规格书（2018-09-30 版）下载规格书 PDF

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 320.6W
CONSTANT CURRENT REGION^注Note.2: 114 ~ 229V
OPEN CIRCUIT VOLTAGE (max.): 234V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^注Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^注Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 235 ~ 252V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13, EN62384 independent; GB19510.1,GB19510.14,EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 168.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)

测试条件与备注10

All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
Please refer to "DRIVING METHODS OF LED MODULE".
De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
