HDR-150-15 · 台湾 150W 导轨开关电源直流替DR/MDR

Mean Well · Enclosed Switching Power Supply · 128.3W 15

输出电压: 15 V DC
额定功率: 128.3 W
输出电流: 8.55 A

¥182.00含 13% 增值税

选择型号 — HDR-150系列HDR-150-15

HDR-150-12122.4W · 12V · 10.2A

HDR-150-15128.3W · 15V · 8.55A

HDR-150-24127.4W · 24V · 5.31A HDR-150-48130.6W · 48V · 2.72A

现货

现货 · 上海仓 153 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 HDR-150-15，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CB CE EAC TÜV UL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm(6SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL62368-1,UL61010, EN61558-2-16) make HDR-150 a very competitive power supply solution for household and industrial applications.

产品特点

Ultra slim design with 105mm(6SU) width
Universal input 85~264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class Ⅱ
DC output voltage adjustable
Protections : Short circuit / Overload / Over voltage
Cooling by free air convection
DIN rail TS-35/7.5 or 15 mountable
Over voltage category Ⅲ
LED indicator for power on
3 years warranty

规格参数

HDR-150-15参数摘自官方规格书（2019-06-26 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT 115VAC: 8.55A
RATED CURRENT 230VAC: 9.5A
RATED POWER 115VAC: 128.3W
RATED POWER 230VAC: 142.5W
RIPPLE & NOISE (max.)^注Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 18V
VOLTAGE TOLERANCE^注Note.3: ±1.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 30ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89.5%
AC CURRENT (Typ.): 3A/115VAC 1.6A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.8 ~ 22.5V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

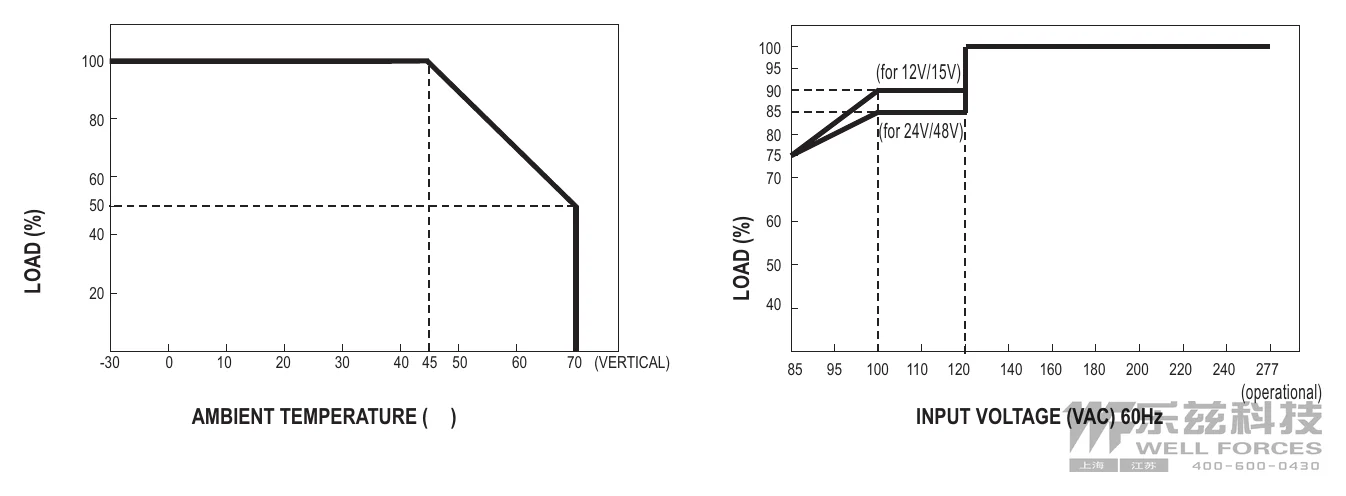

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters (Note 4 )
OVER VOLTAGE CATEGORY: Ⅲ ; According to EN62368,EN61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters

SAFETY & EMC (Note.7)

SAFETY STANDARDS: IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, EAC TP TC 004 approved; Design refer to EN50178,TUV EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: 项目标准测试等级
Conducted EN55032(CISPR32) Class B
Radiated EN55032(CISPR32) Class B (note 5)
Harmonic Current (Note 6 ) EN61000-3-2 Class A
Voltage Flicker EN61000-3-3 -------
EMC IMMUNITY: EN55024, EN61000-6-2
项目标准测试等级
ESD EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility EN61000-4-3 Level 3, criteria A
EFT/Burest EN61000-4-4 Level 3, criteria A
Surge EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted EN61000-4-6 Level 3, criteria A
Magnetic Field EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

项目	标准	测试等级
Conducted	EN55032(CISPR32)	Class B
Radiated	EN55032(CISPR32)	Class B (note 5)
Harmonic Current (Note 6 )	EN61000-3-2	Class A
Voltage Flicker	EN61000-3-3	-------

项目	标准	测试等级
ESD	EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	EN61000-4-3	Level 3, criteria A
EFT/Burest	EN61000-4-4	Level 3, criteria A
Surge	EN61000-4-5	Level 4,2KV/L-N, criteria A
Conducted	EN61000-4-6	Level 3, criteria A
Magnetic Field	EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 536K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 105*90*54.5mm (W*H*D)
PACKING: 0.31Kg; 32pcs/11Kg/1.0CUFT

测试条件与备注7

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
When the input voltage is 230VAC,delivers EMI Class B for radiated emission for the power supply; When the input voltage is 110VAC, delivers EMI Class A for radiated emission for the power supply.
Harmonic current test at 70% load .
The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

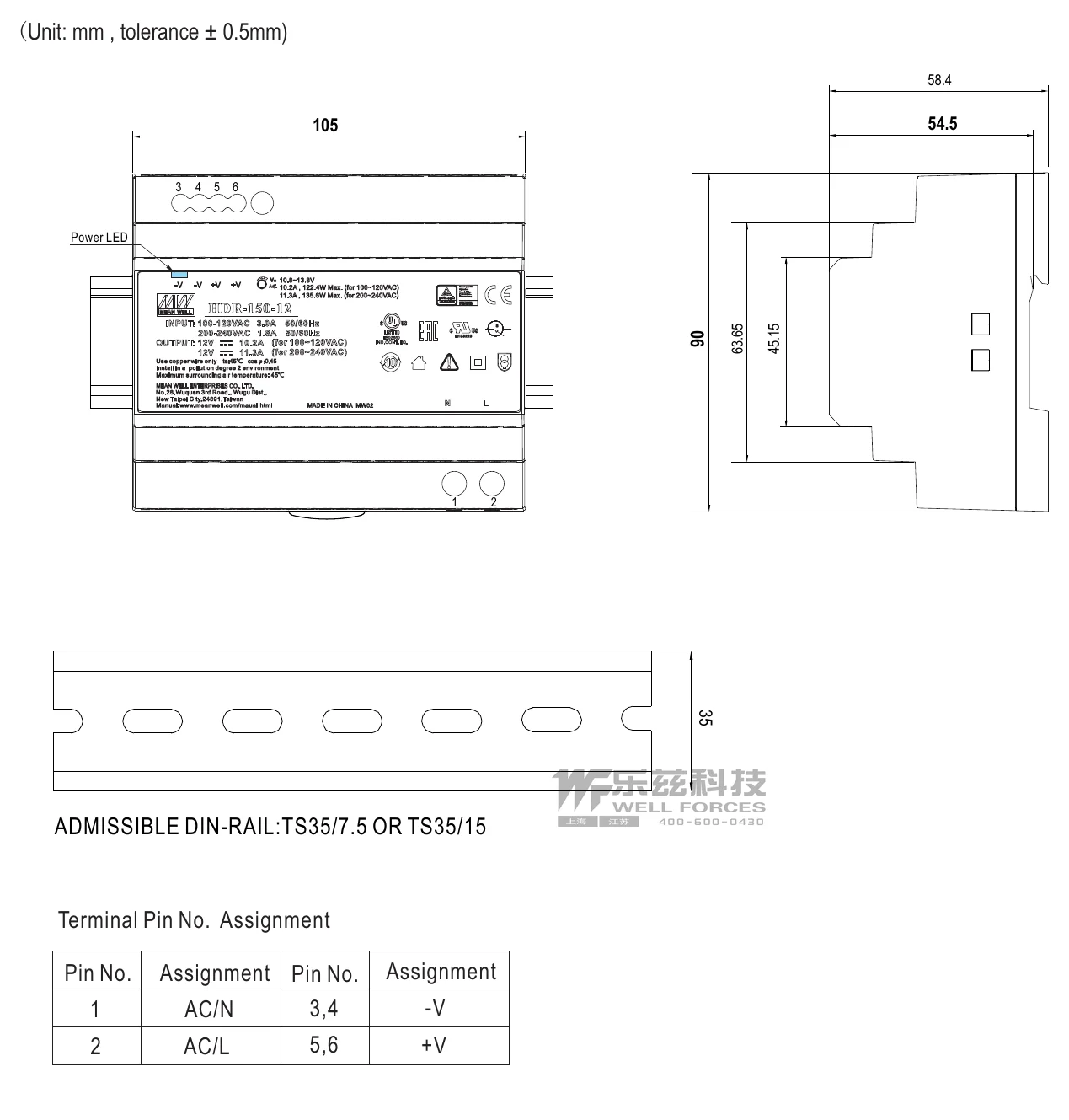

技术图纸
