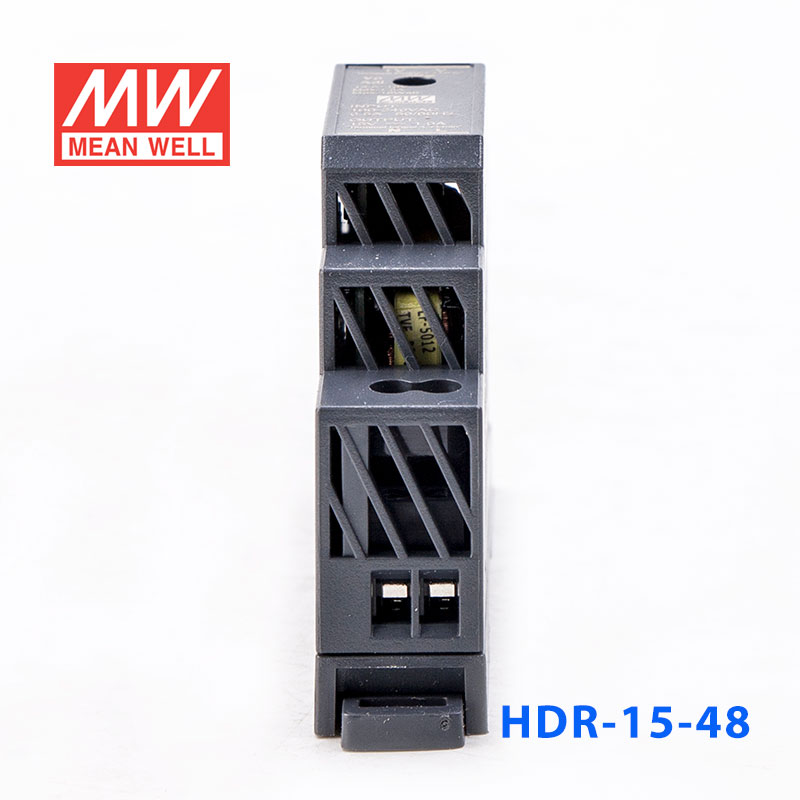

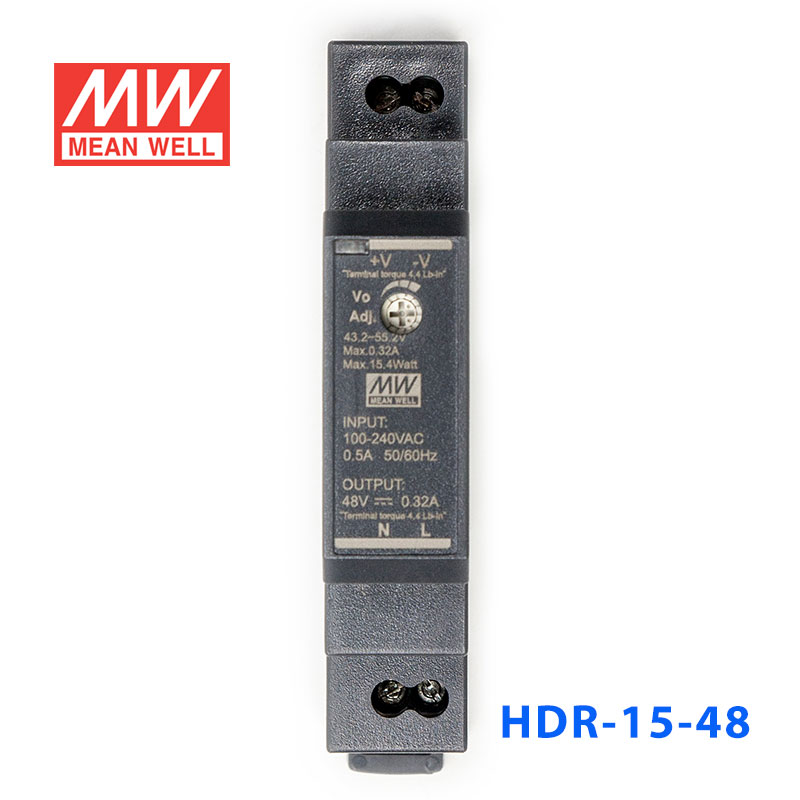

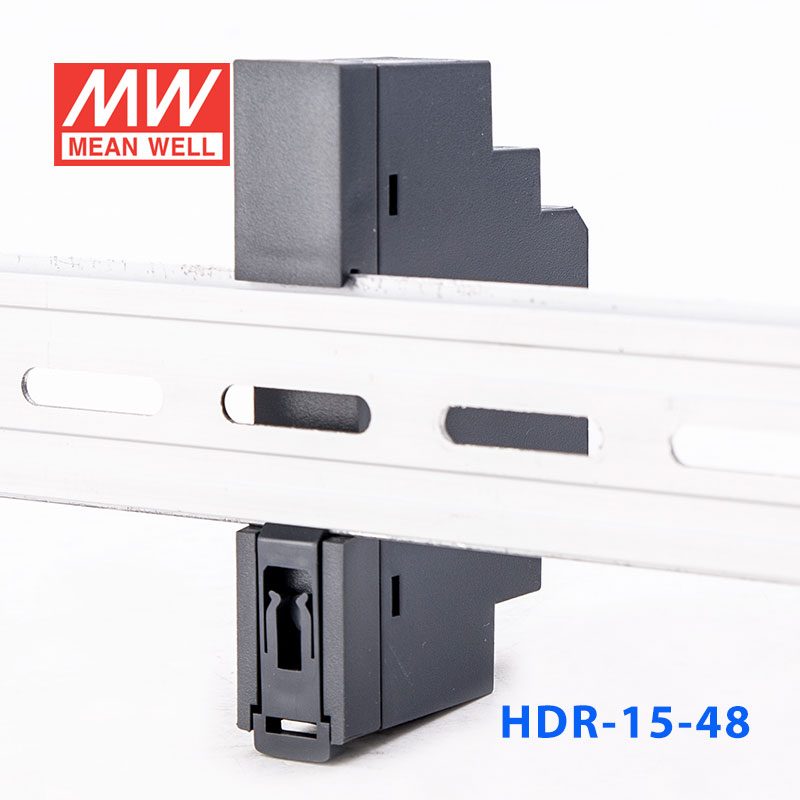

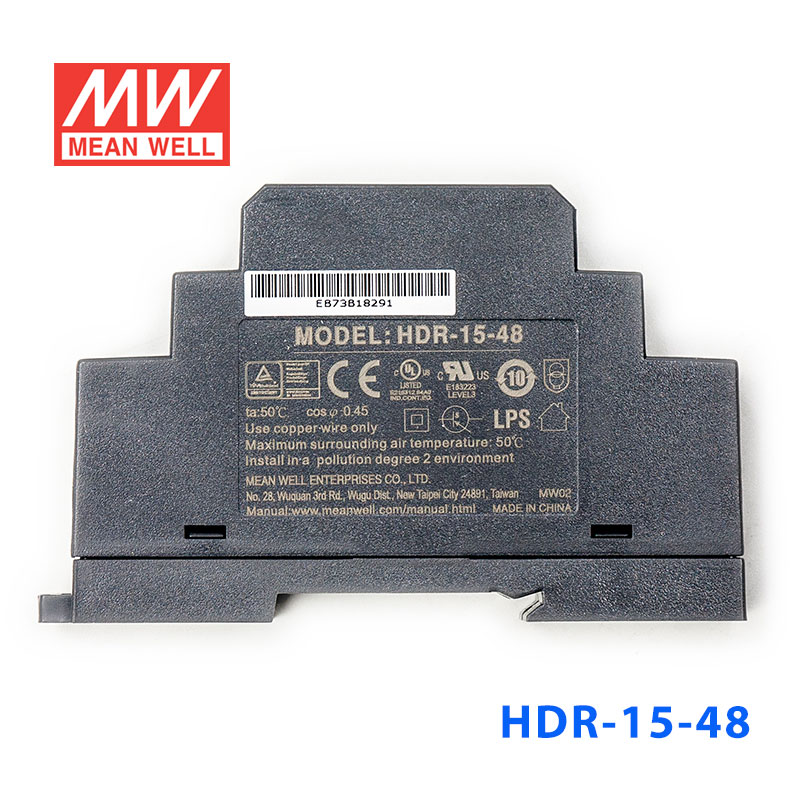

HDR-15-48 · 单路输出 超薄型导轨安装电源

安规和电磁兼容

安全规范

UL62368-1, UL508, EAC TP TC 004, BSMI CNS15598-1, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1,BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) 认证通过, 设计参考TUV BS EN/EN62368-1

耐压

I/P-O/P:4KVAC

绝缘阻抗

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

电磁兼容发射

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55032(CISPR32), CNS15936	Class B
辐射骚扰 Radiated	BS EN/EN55032(CISPR32), CNS15936	Class B
谐波电流 Harmonic Current	BS EN/EN61000-3-2	Class A
电压闪烁 Voltage Flicker	BS EN/EN61000-3-3	-------

电磁兼容抗扰度

BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, criteria A
浪涌 Surge	BS EN/EN61000-4-5	Level 4,2KV/L-N, criteria A
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3, criteria A
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	>95% dip 0. 5 periods, 30% dip 25 periods, >95% interruptions 250 periods
