GST25B05-P1J · 5V 高效能低空载损耗绿色节能桌上型适配器

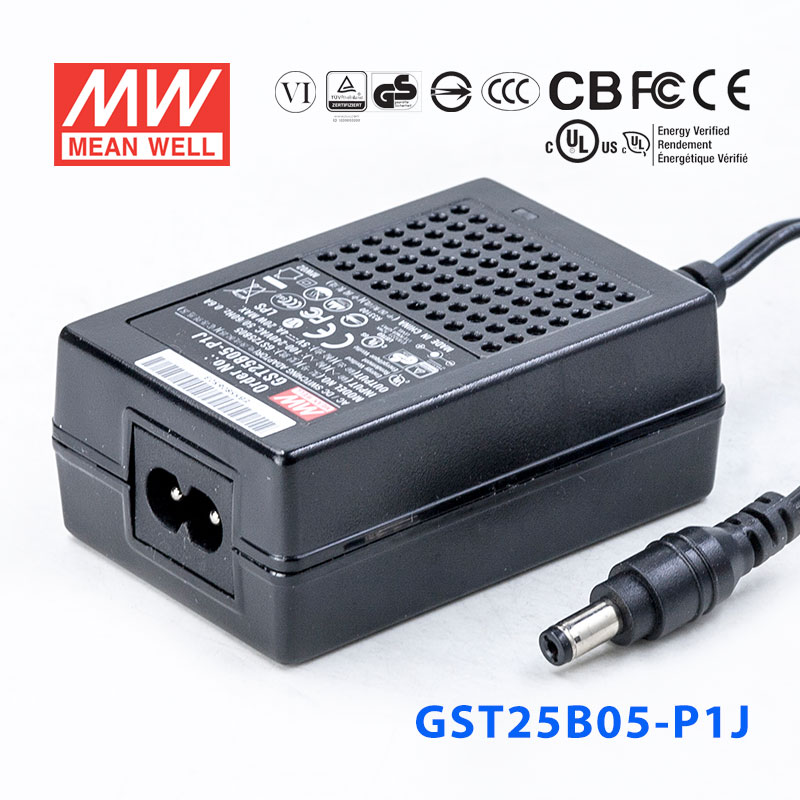

GST25B is a highly reliable, 25W desktop style single-output green adaptor series. This product is a classⅡ power unit (without FG), equipped with a standard IEC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W,GST25B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST25B is certified for the international safety regulations.

产品特点

• Universal AC input / Full range

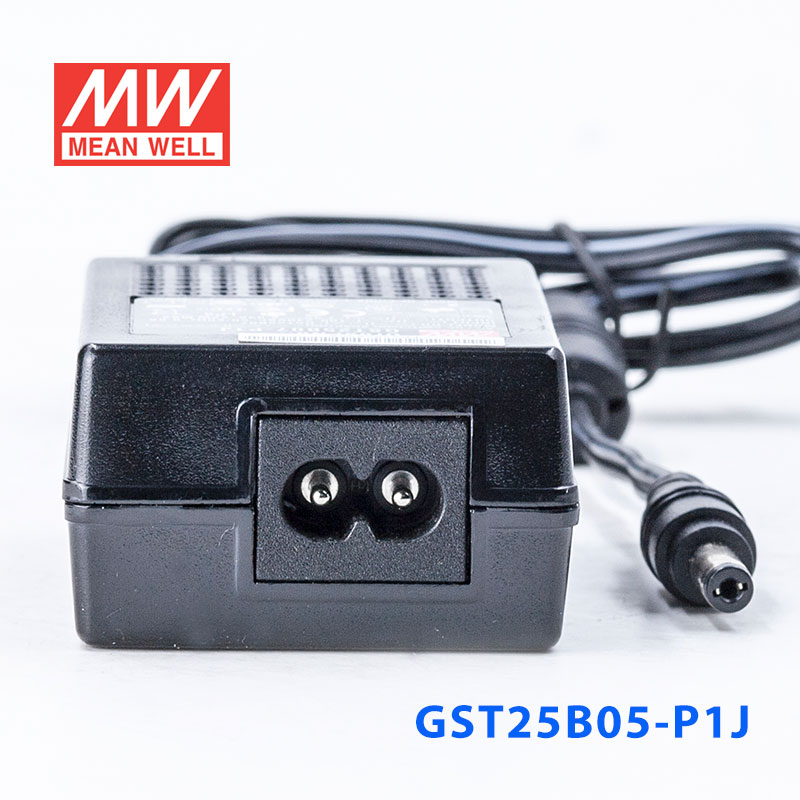

• 2 pole AC inlet IEC320-C8
• No load power consumption< 0.075W
• Energy efficiency Level VI
• Comply with EISA 2007/DoE,NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
• Class Ⅱ power (without earth pin)
• Protections: Short circuit / Overload / Over voltage
• Fully enclosed plastic case
• Pass LPS
• High operating temperature up to +70℃

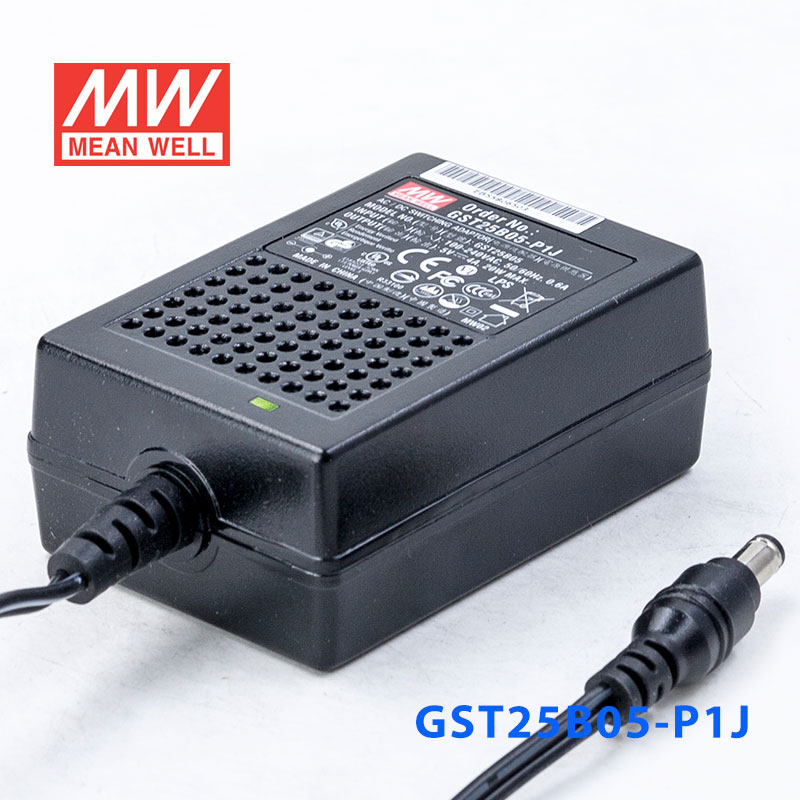

• LED indicator for power on
• 3 years warranty
