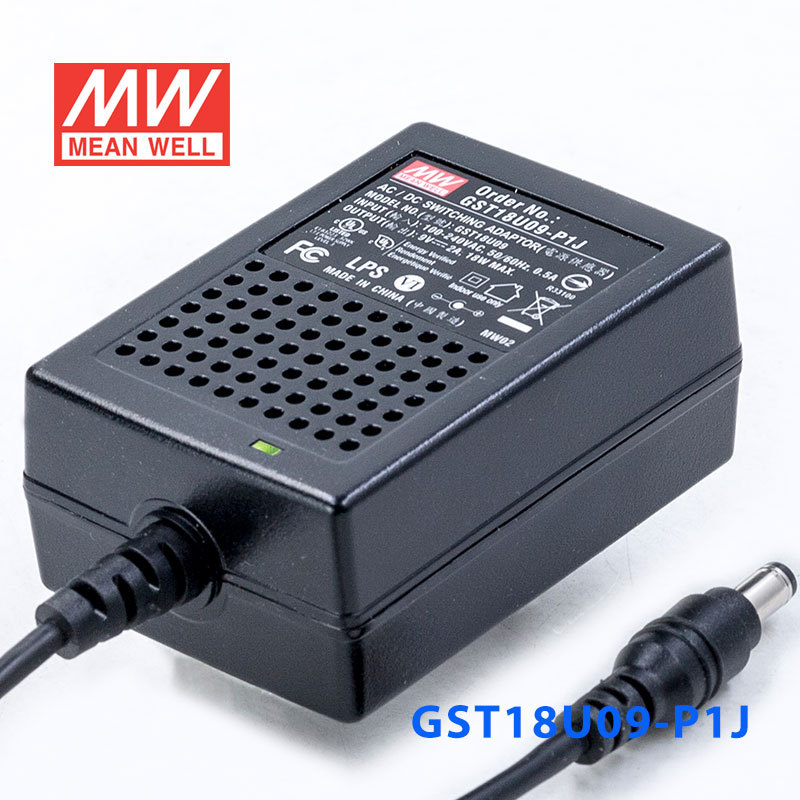

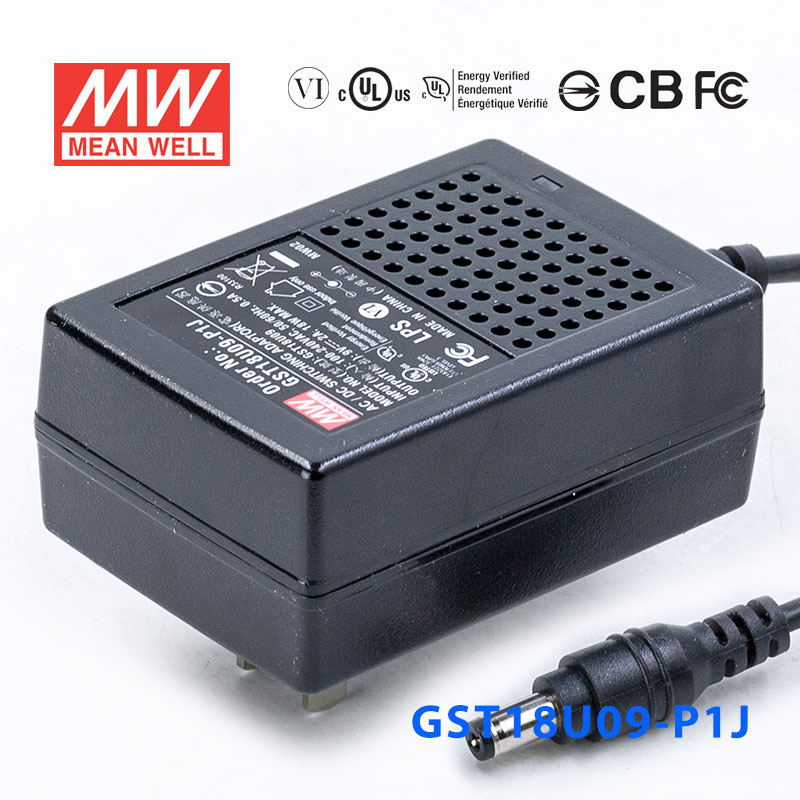

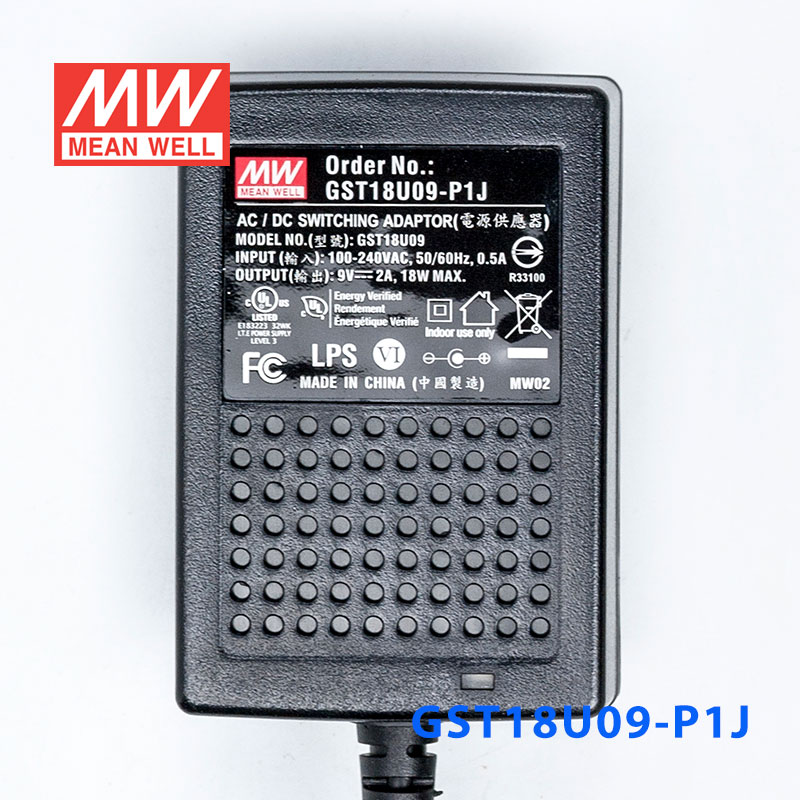

GST18U09-P1J · 9V 高效能低空载损耗绿色节能美规适配器

GST18U is a highly reliable, 18W wall-mounted style single-output green adaptor series. This product is a class Ⅱ power unit (no FG), equipped with a 2-Pin standard USA AC power plug, adopting the input range from85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GST18U is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST18U is certified for the international safety regulations.

产品特点

• Global certificates
• Universal AC input / Full range

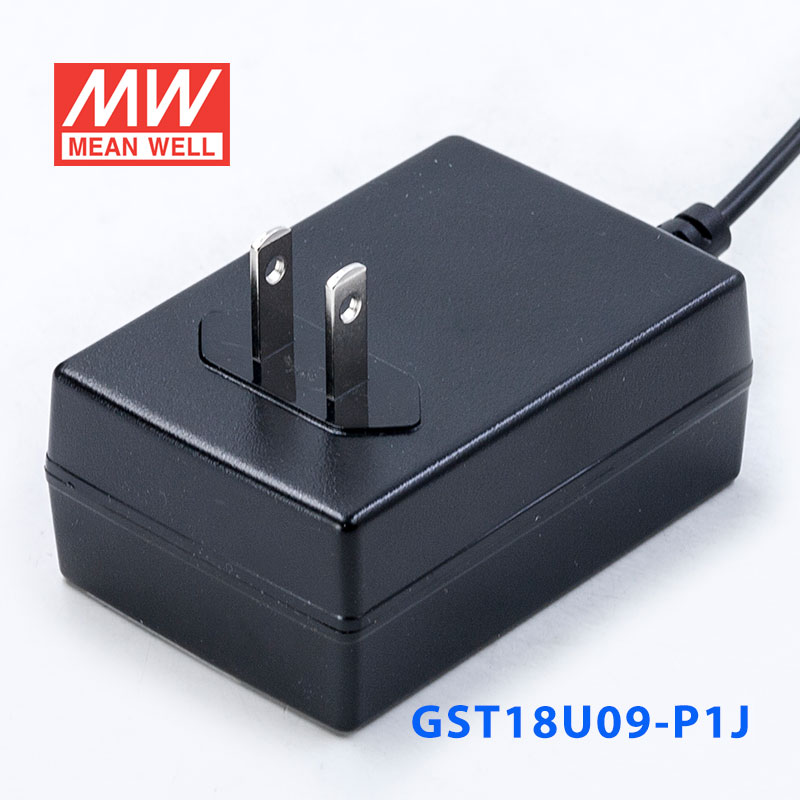

• 2 pole USA plug, Class Ⅱ power unit
• No load power consumption< 0.075W
• Energy efficiency Level VI
• Comply with EISA 2007/DoE and NRCan
• Protections: Short circuit / Overload / Over voltage
• Fully enclosed plastic case
• Pass LPS
• -30~+70℃ wide range working temperature
• LED indicator for power on
• Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf )
• 3 years warranty
