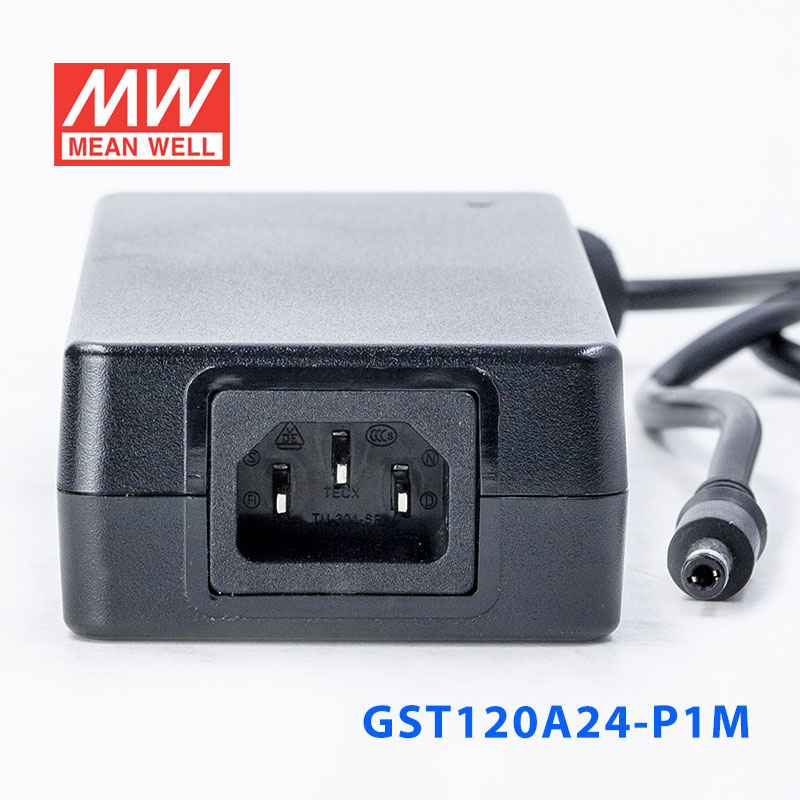

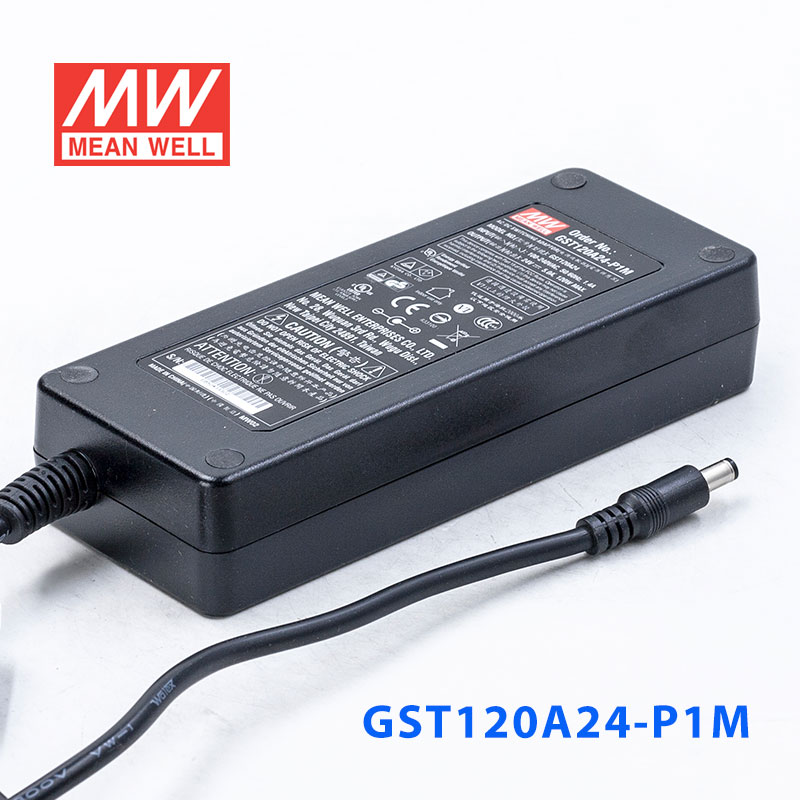

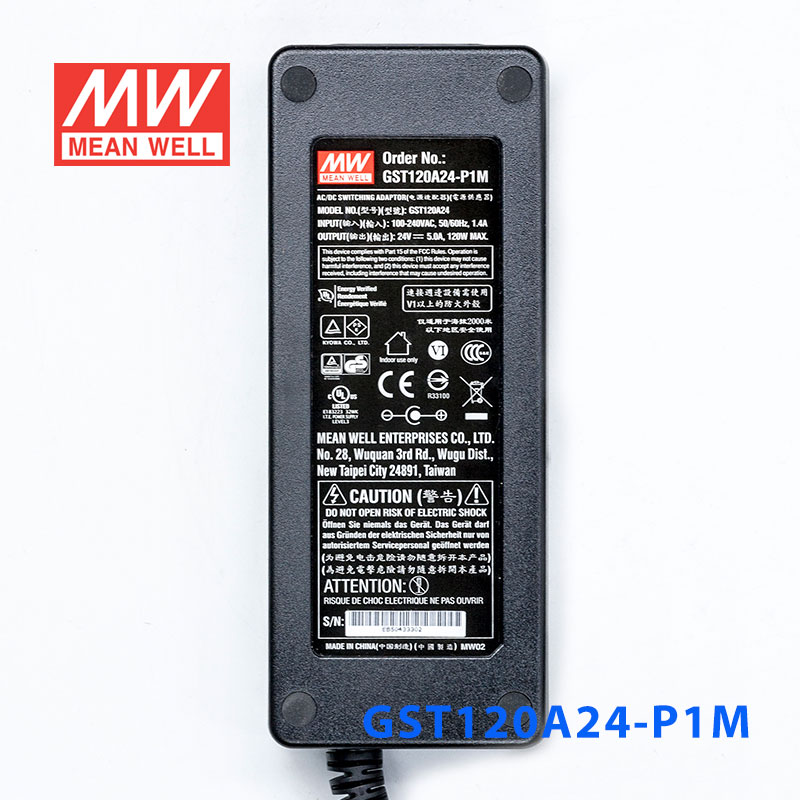

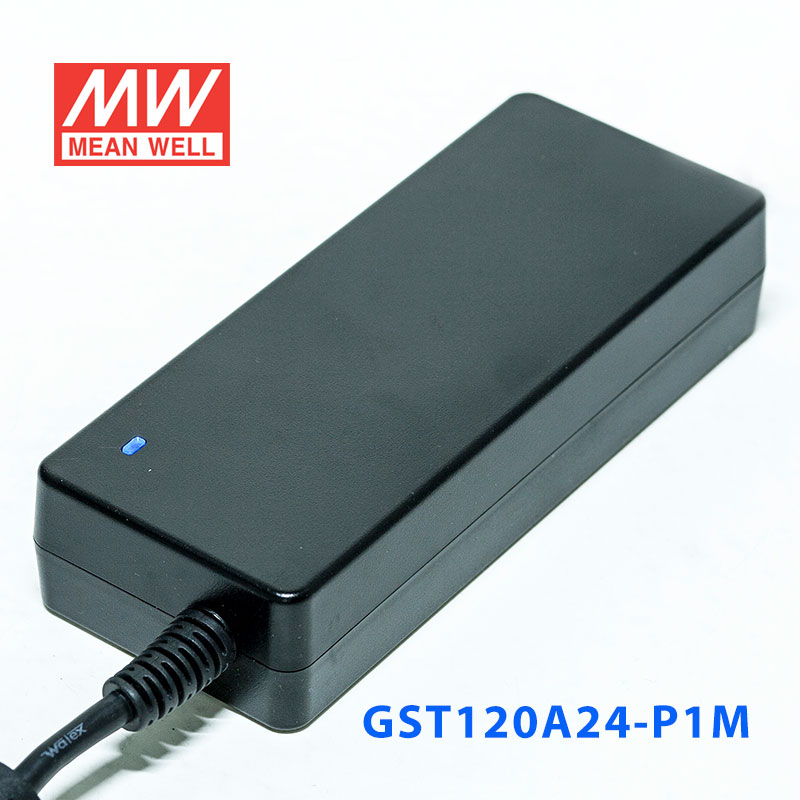

GST120A24-P1M · 24V 高效能低空载损耗绿色节能桌上型适配器

安规和电磁兼容

安全规范^注7

UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1, AS/NZS 62368.1 , BIS IS13252, KC K60950-1, EAC TP TC 004认证通过

耐压

I/P-O/P: 3KVAC

绝缘阻抗

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

电磁兼容发射^注9

项目	标准	测试等级
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
谐波电流 Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
电压闪烁 Voltage flicker	BS EN/EN61000-3-3	-------

电磁兼容抗扰度^注9

BS EN/EN55035

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
