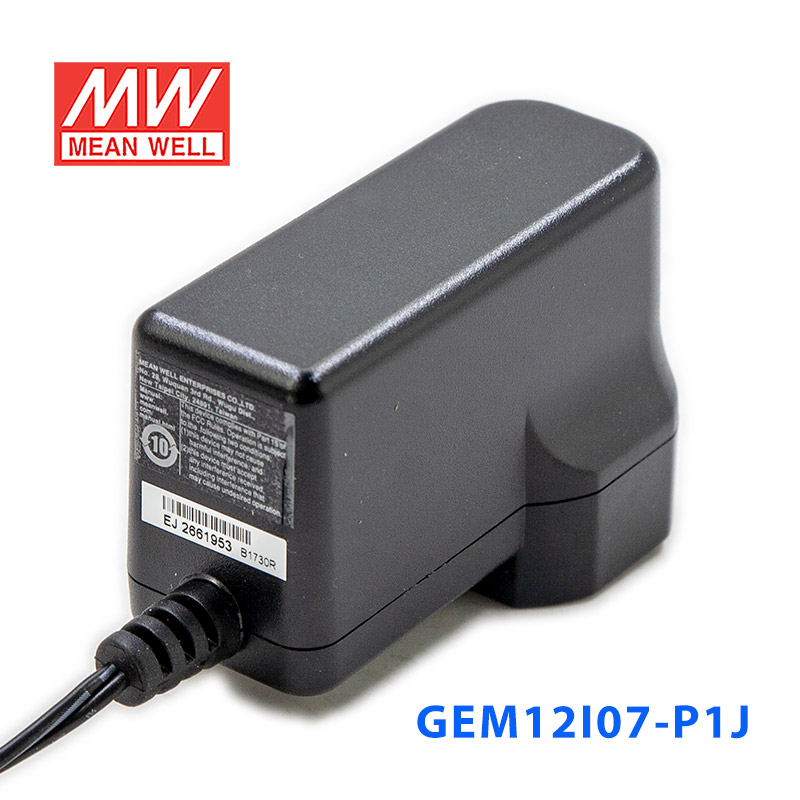

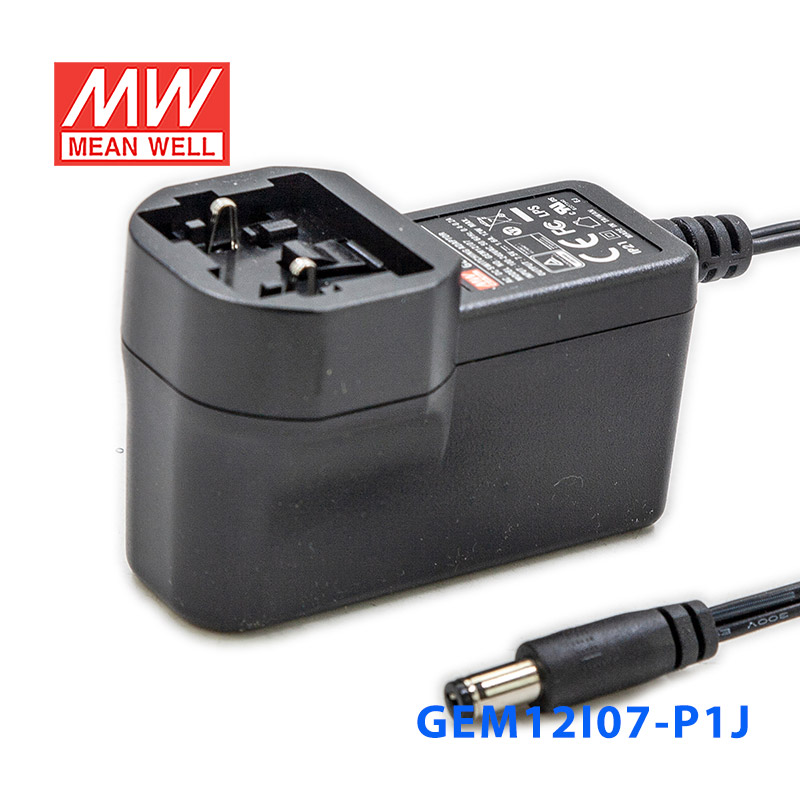

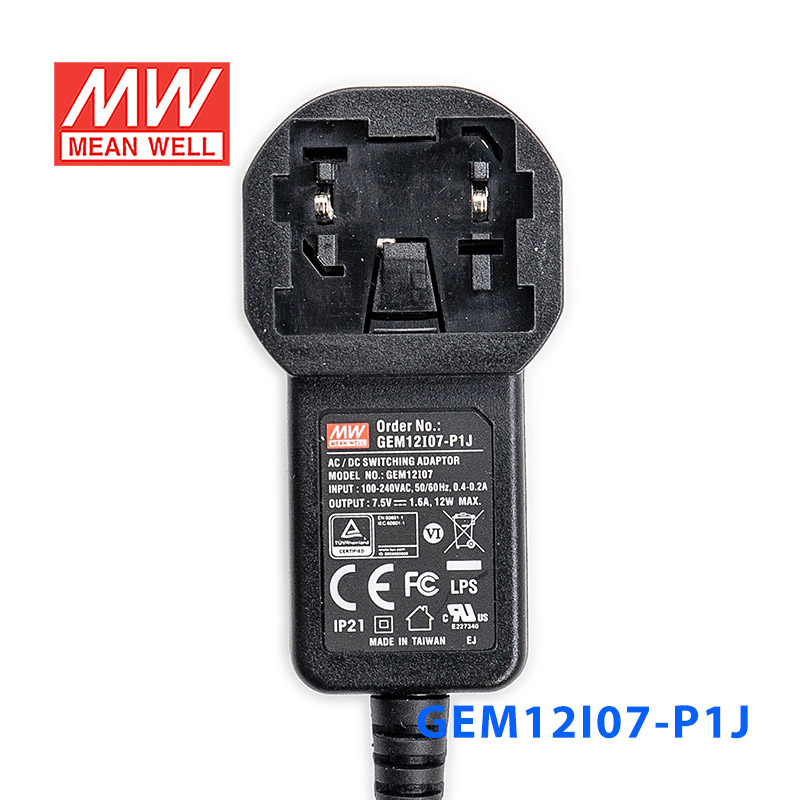

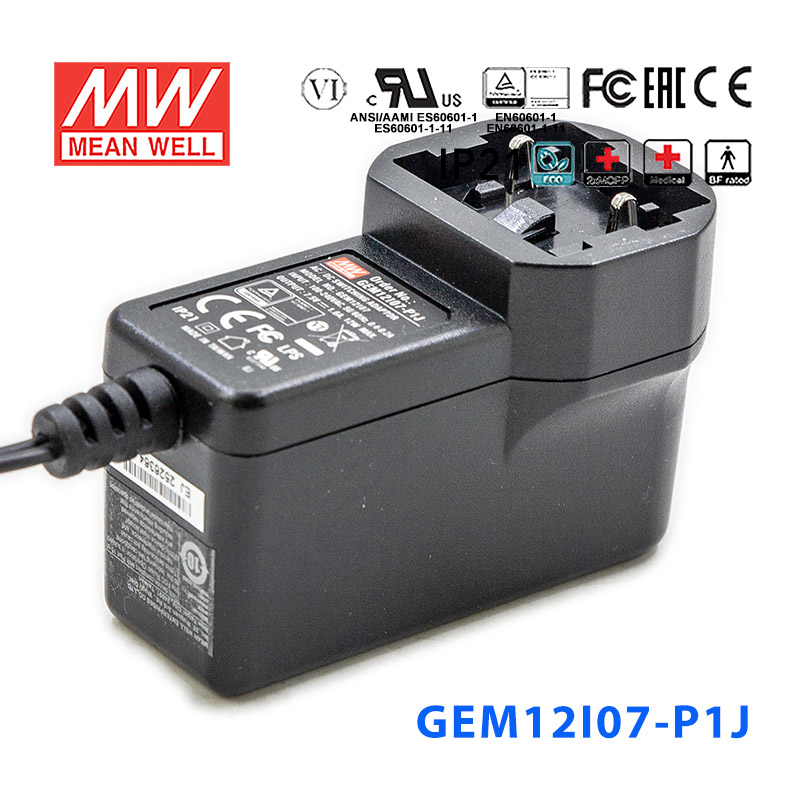

GEM12I07-P1J · 环保可换插头医疗电源适配器

安规和电磁兼容

安全规范

TUV BS EN/EN60601-1/BS EN/EN60601-1-11, AAMI/ANSI ES60601-1/ES60601-1-11(3.1版本), CAN/CSA-C22第三版, EAC TP TC 004认证通过; GEM12I05-USB without BS EN/EN60601-1-11 , AAMI/ANSI ES60601-1-11

绝缘等级

初级-次级: 2 x MOPP

耐压

I/P-O/P:5656VDC

绝缘阻抗

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

电磁兼容发射

项目	标准	测试等级
Conducted emission	BS EN/EN55011 (CISPR11),FCC PART 15 / CISPR22	Class B
Radiated emission	BS EN/EN55011 (CISPR11),FCC PART 15 / CISPR22	Class B
谐波电流 Harmonic current	BS EN/EN61000-3-2	Class A
电压闪烁 Voltage flicker	BS EN/EN61000-3-3	-----

电磁兼容抗扰度

EN55024 , EN60601-1-2, EN61204-3

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
