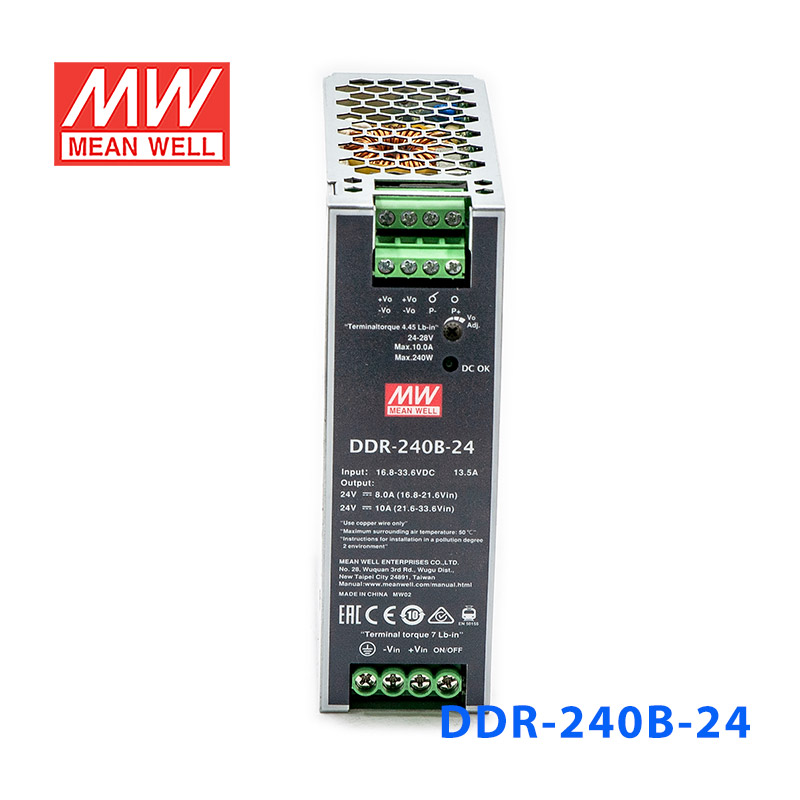

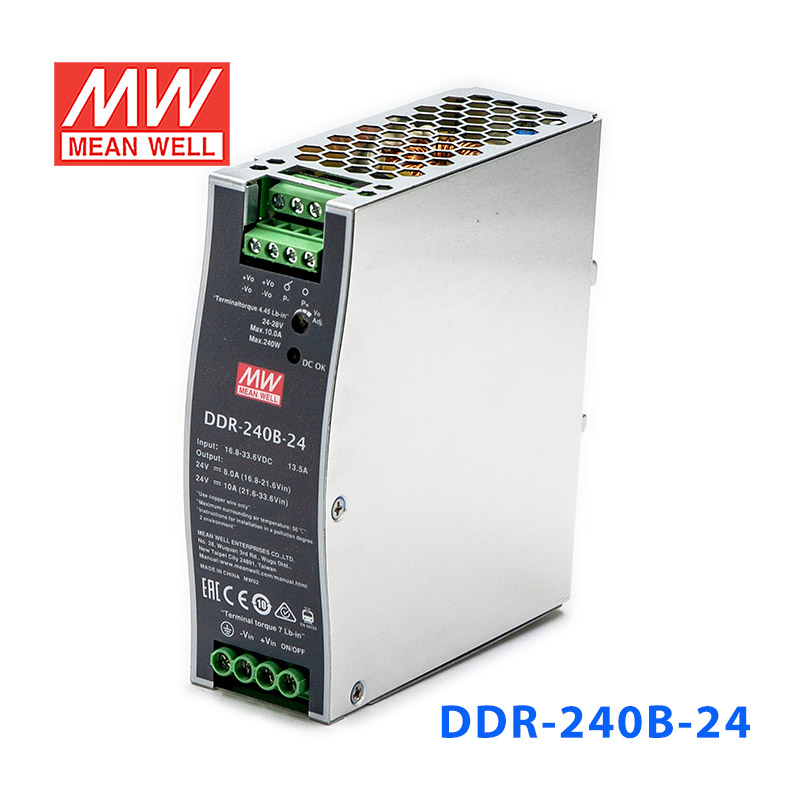

DDR-240B-24 · 16.8~ 入 导轨型DC DC电源

安规和电磁兼容

安全规范

IEC 62368 , UL 62368-1, EAC TP TC 004, AS/NZS 62368.1 认证通过

耐压

I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:0.71KVdc

绝缘阻抗

I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25℃/ 70% RH

电磁兼容发射^注6

项目	标准	测试等级
传导骚扰 Conducted	BS EN/EN55032	Class B
辐射骚扰 Radiated	BS EN/EN55032	Class B
电压闪烁 Voltage Flicker	BS EN/EN6100-3-3	-----
谐波电流 Harmonic Current	-----	-----

电磁兼容抗扰度^注6

BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2), BS EN/EN61204-3

项目	标准	测试等级
静电放电 ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 3, 6KV contact; criteria A
射频电磁场辐射 Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
电快速瞬变脉冲群 EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
浪涌 Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-FG ;criteria A
射频场感应的传导骚扰 Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
工频磁场 Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

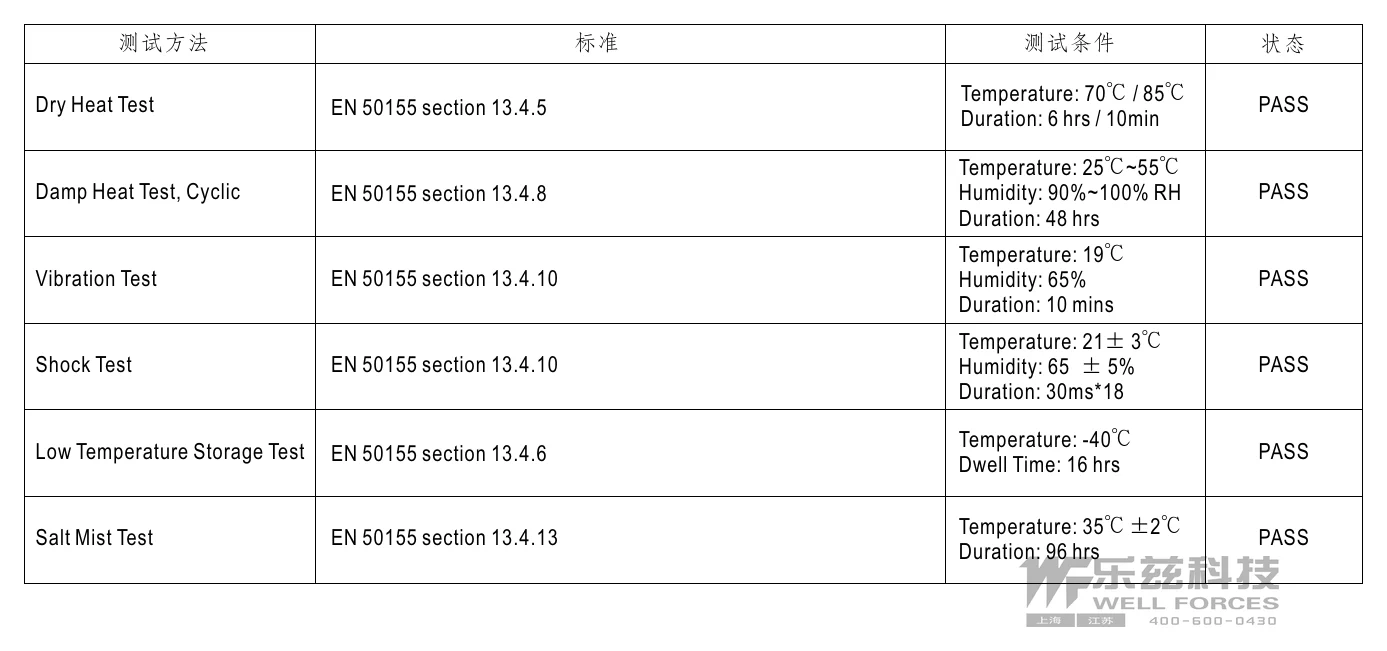

铁道标准

符合BS EN/EN45545-2 防火 ;满足BS EN/EN50155 / IEC60571 包含 IEC61373 冲击和震动,BS EN/EN50121-3-2 电磁兼容
