产品概述

DAP-04 series is a "DALI signal to PWM signal" converter, specifically working with the MEAN WELL AC/DC LED power supplies with 3-in-1 dimming function (1~10V / PWM / Resistance).

产品特点

Universal AC input / Full range ( up to 305VAC)
Convert DALI signal to PWM signal
4 DALI addressable output channels
Built-in push dim function
Comply with DALI standards (IEC62386-101, 102, 207)
PWM active high or active low selectable by jumper
Linear or logarithm dimming curve selectable (comply with IEC62386-207)
Dimming range : 1 ~ 100%
Built-in relay for ON/OFF control of LED power supply
Fully isolated plastic case
Class Ⅱ power unit, no FG
IP20 design
Power consumption < 0.5W (Note.1)
3 years warranty

规格参数

DAP-04参数摘自官方规格书（2019-01-21 版）下载规格书 PDF

OUTPUT

ORDER NAME: DAP-04
NUMBER OF OUTPUT CHANNELS: 4
OUTPUT SIGNAL: PWM, 1KHz (Typ.)
OUTPUT PWM LOGIC: Active high or active low selectable by jumper ; Factory setting is active high
DIMMING RANGE: 1 ~ 100%

INPUT

VOLTAGE RANGE: 90 ~ 305VAC 127 ~ 431VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
AC CURRENT (Typ.): 0.1A
INRUSH CURRENT (Typ.): COLD START 15A(twidth=500μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
POWER CONSUMPTION (Typ.): 0.5W
INPUT SIGNAL: DALI or push dim

FUNCTION

RELAY SWITCH: 240VAC / 8A, ON / OFF control refer to DIM1

ENVIRONMENT

WORKING TEMP.: -30~ +60℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EN61347-1, EN61347-2-11, EN61058-1 Clause 8/17/20/25,EAC TP TC 004 approved
DALI STANDARDS: Comply with IEC62386-101, 102, 207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2,3, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547 light industry level (surge 2KV), criteria A, EAC TP TC 020

OTHERS

MTBF: 246.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 165*46*23mm (L*W*H)
PACKING: 0.16Kg; 84pcs/14.4Kgs/1.14CUFT

测试条件与备注3

Power consumption<0.5W is measured at 230VAC.
Refer to DAP-04-S01 technical note.
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

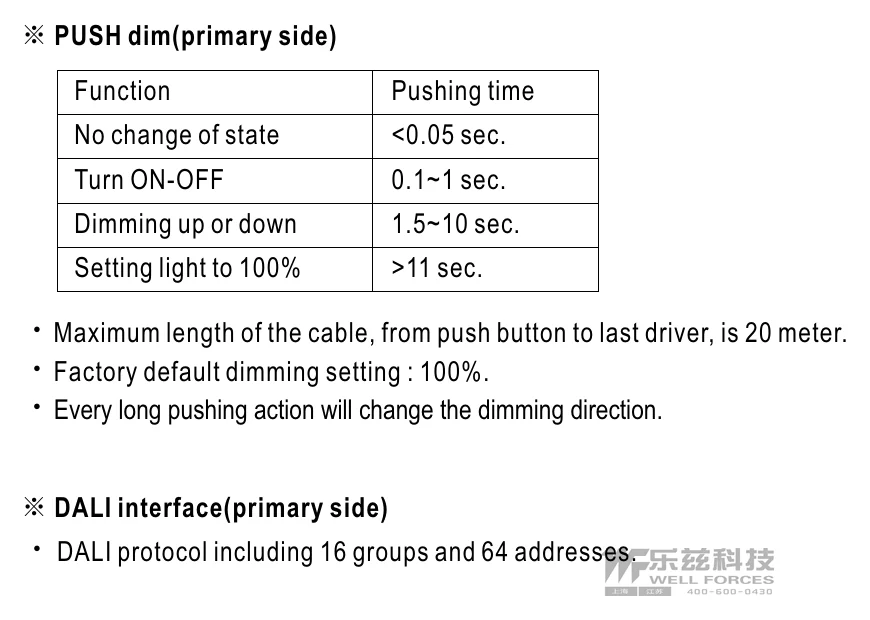

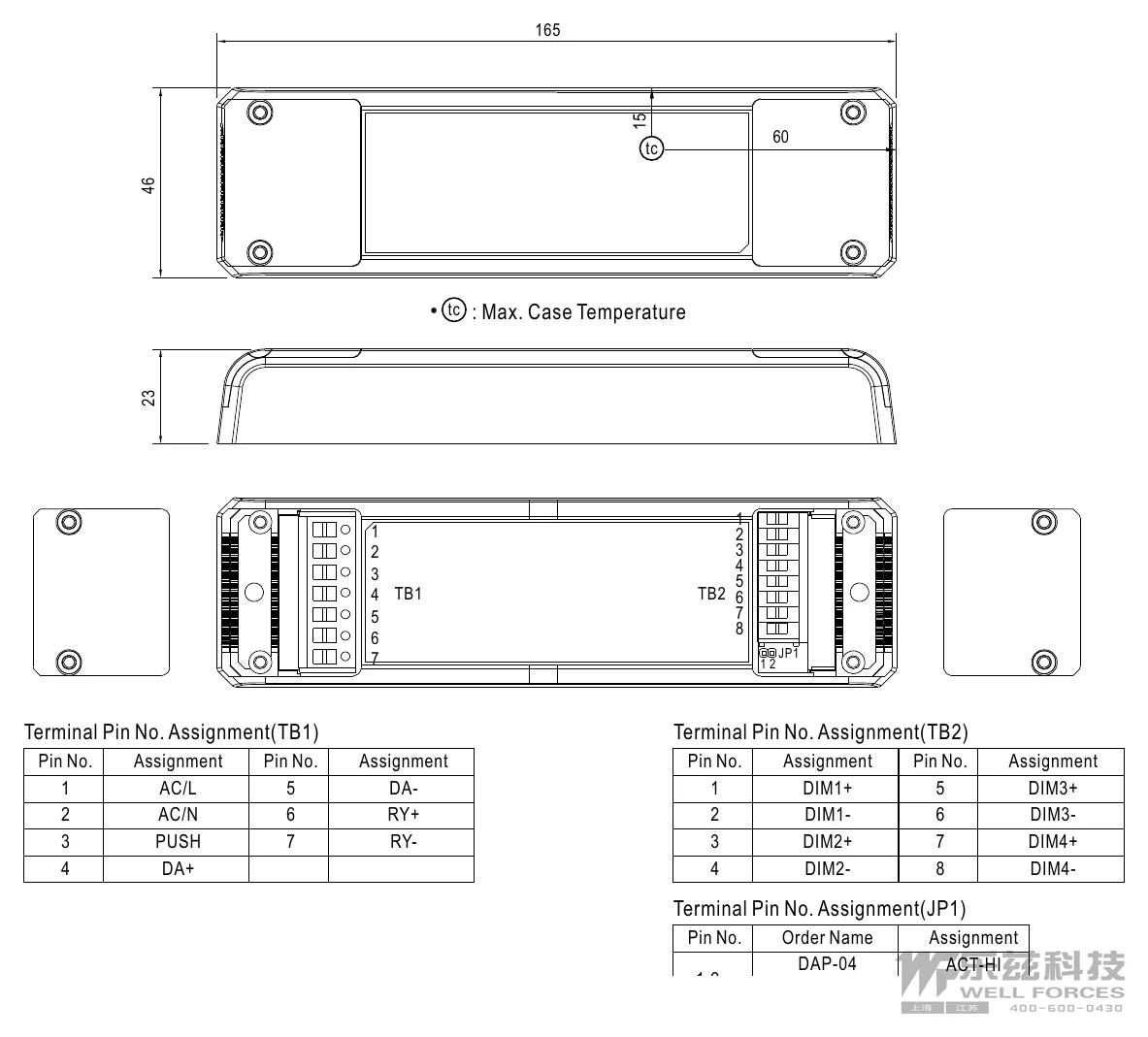

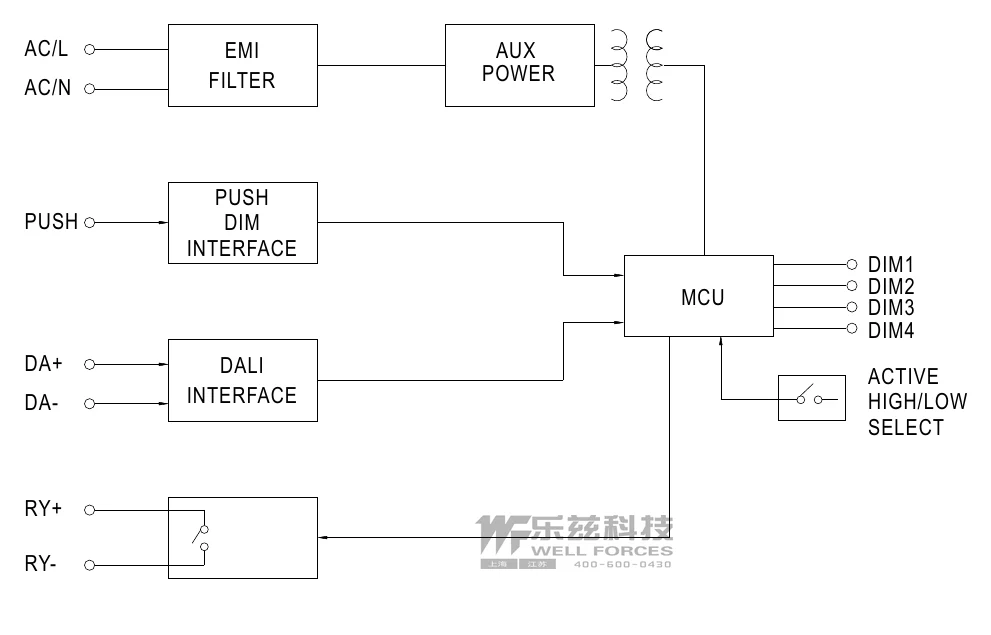

技术图纸

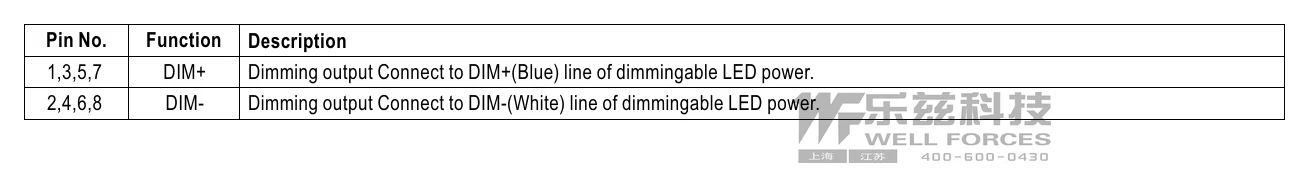

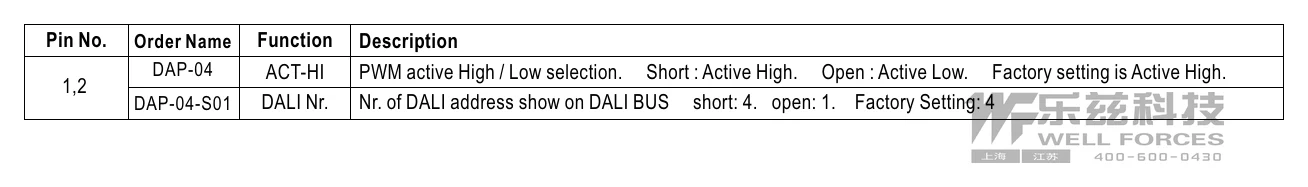

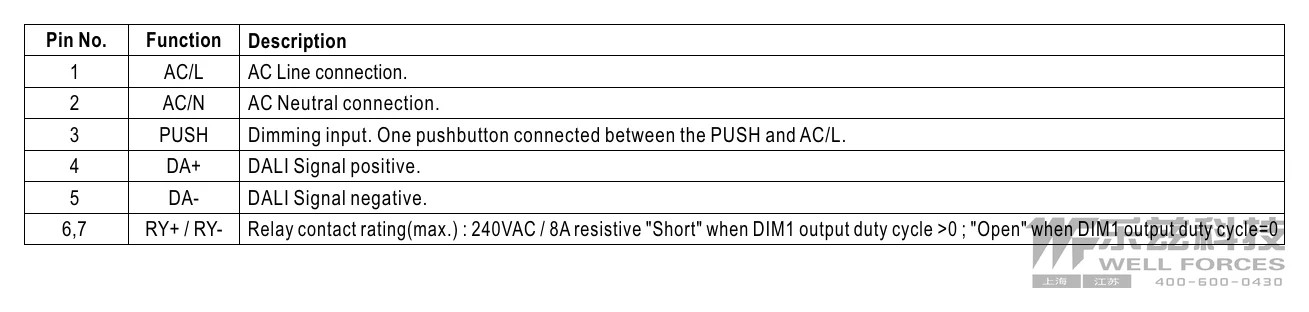

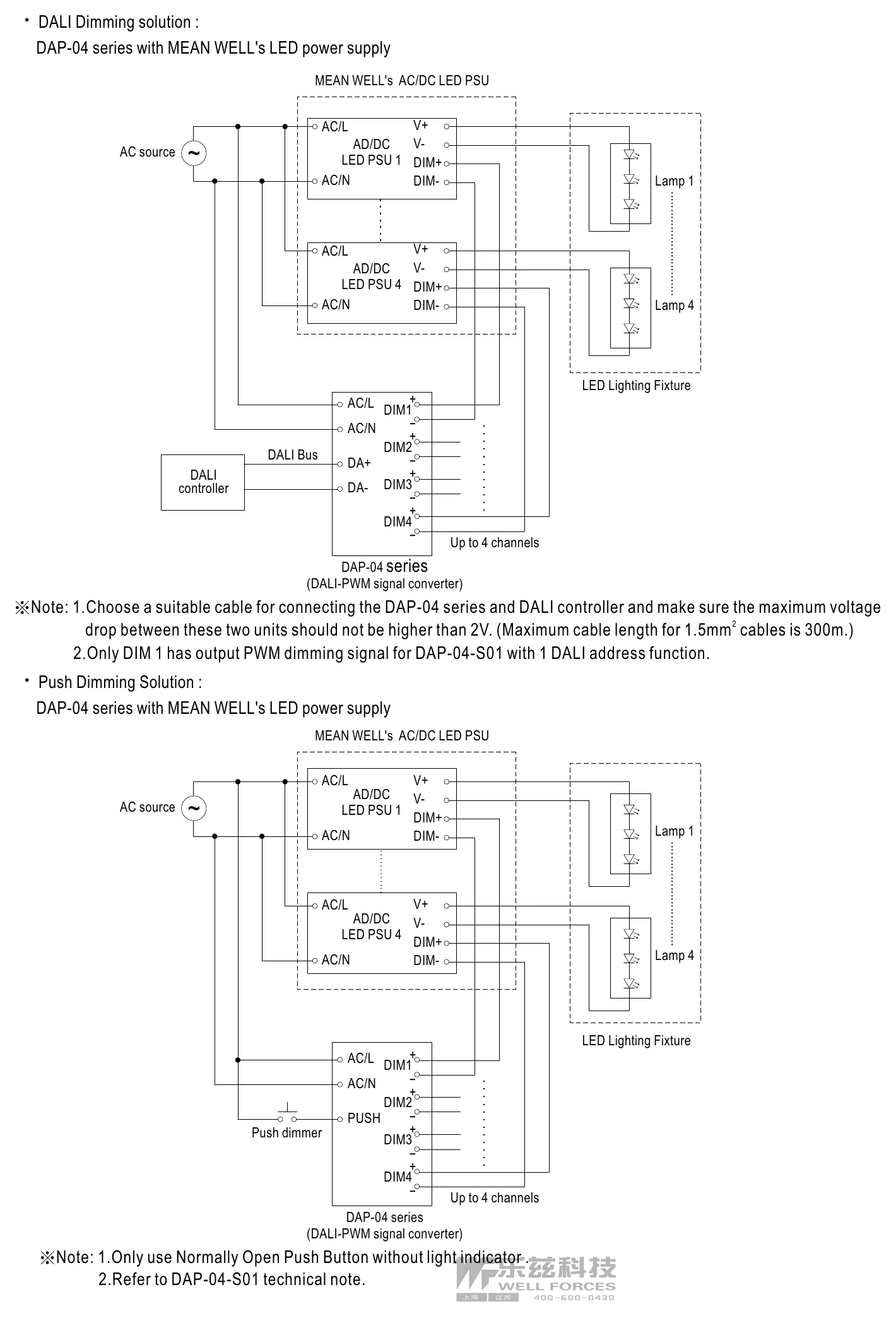

典型应用

Indoor lighting
Office lighting
Decorative lighting

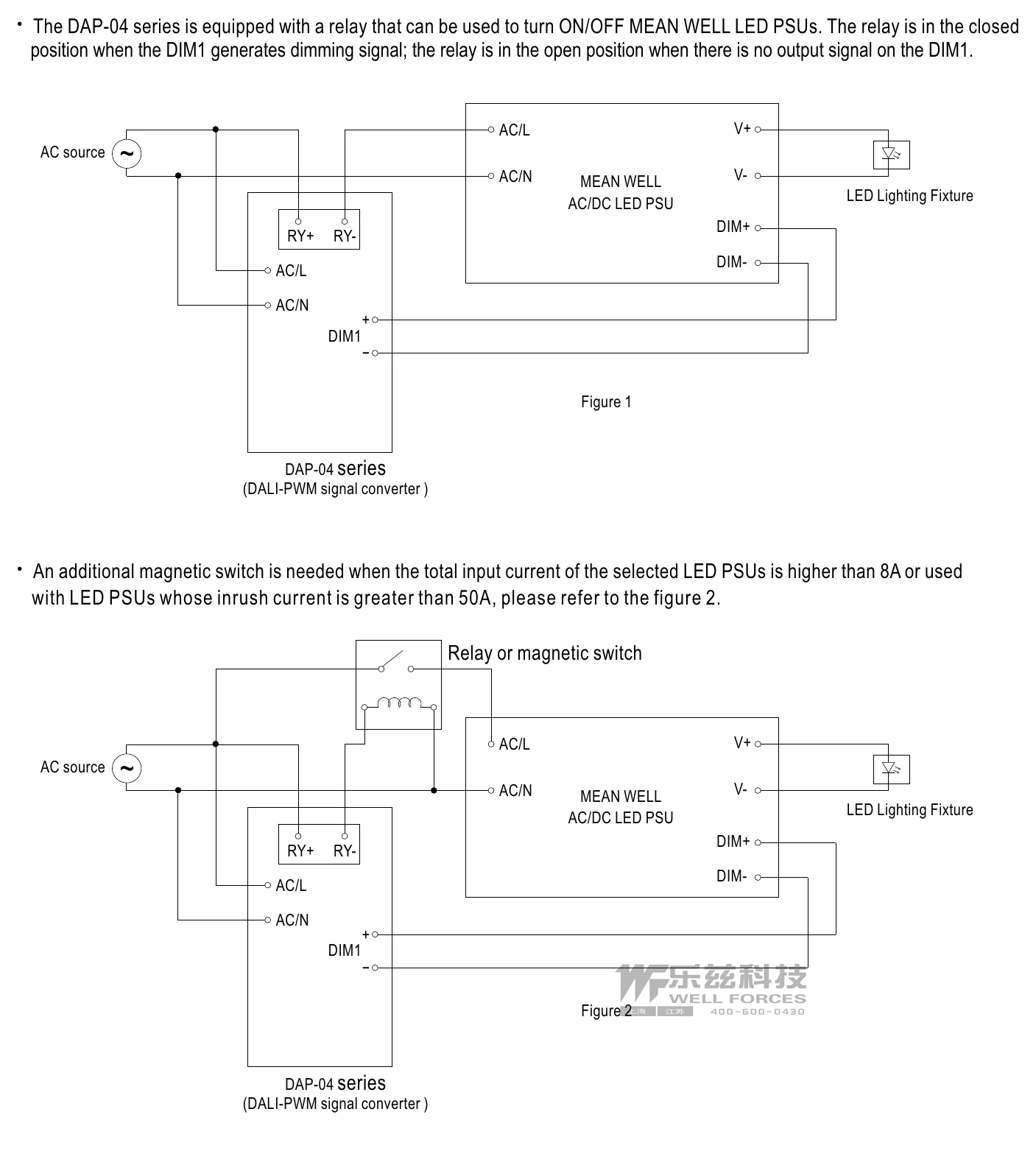

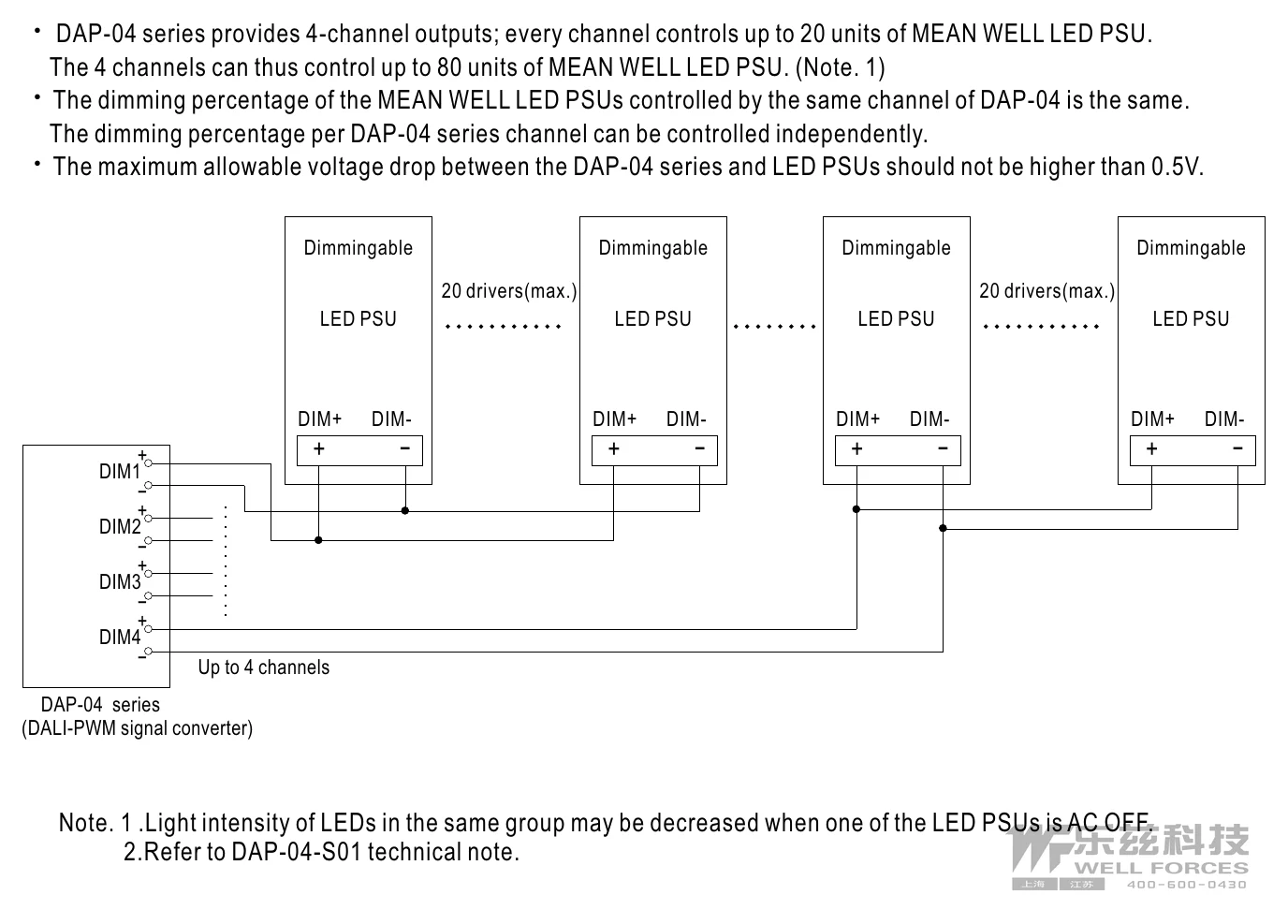

Input signal : DALI or push dim Output signal : open collector PWM signal
