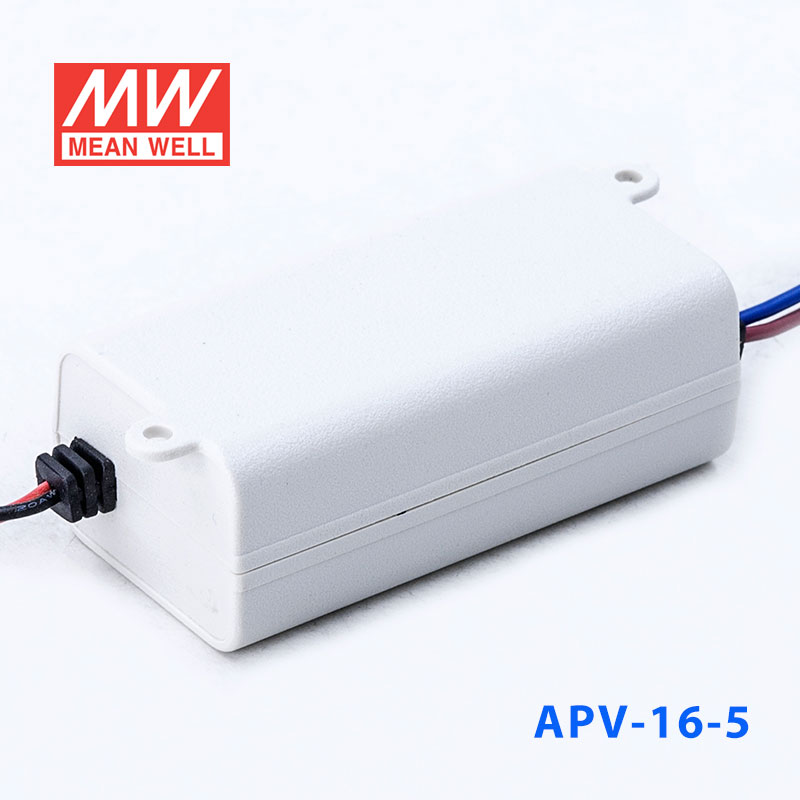

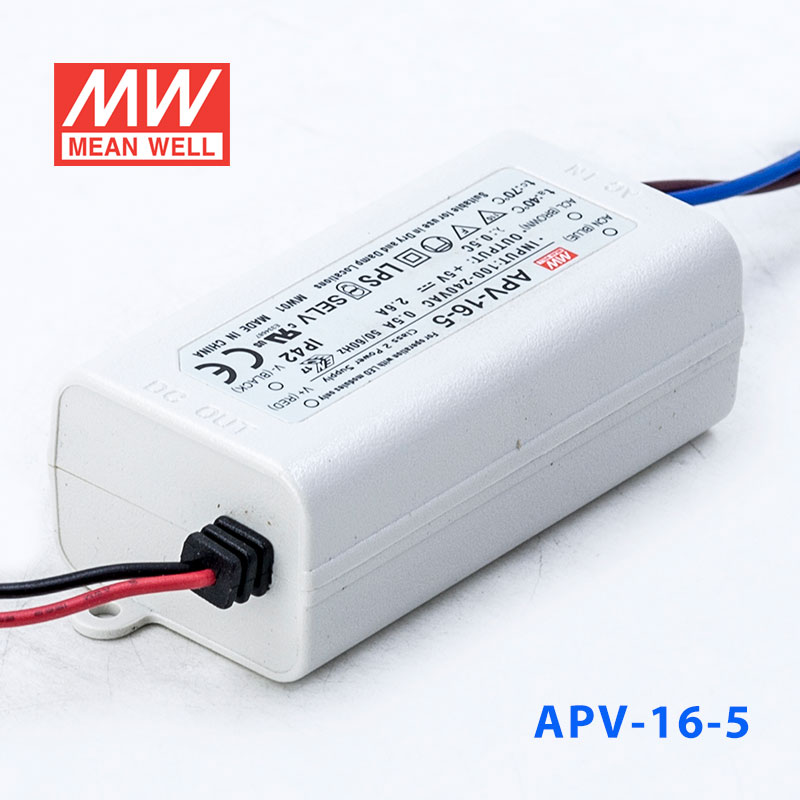

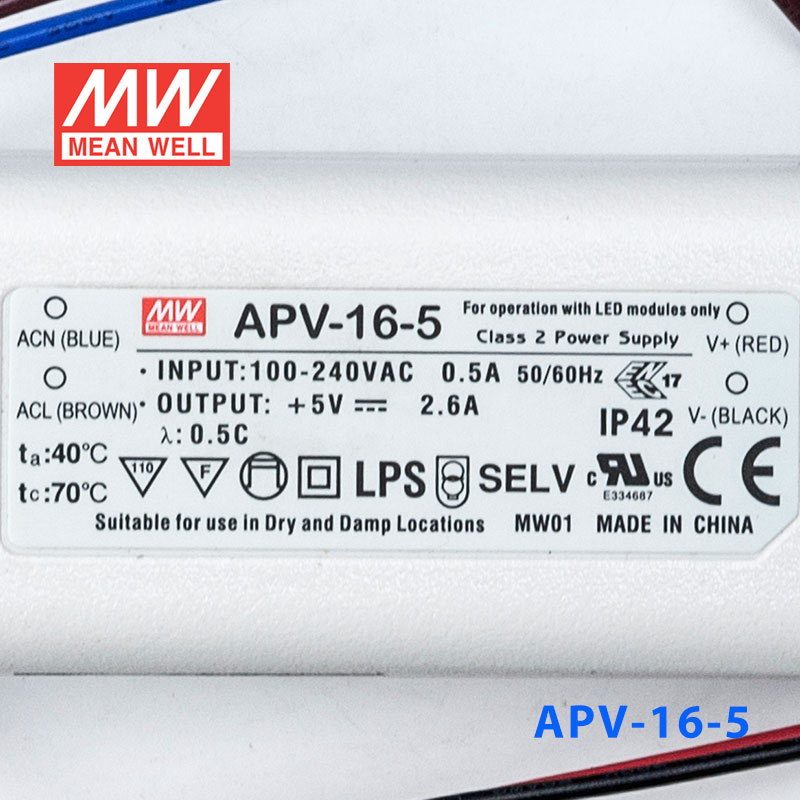

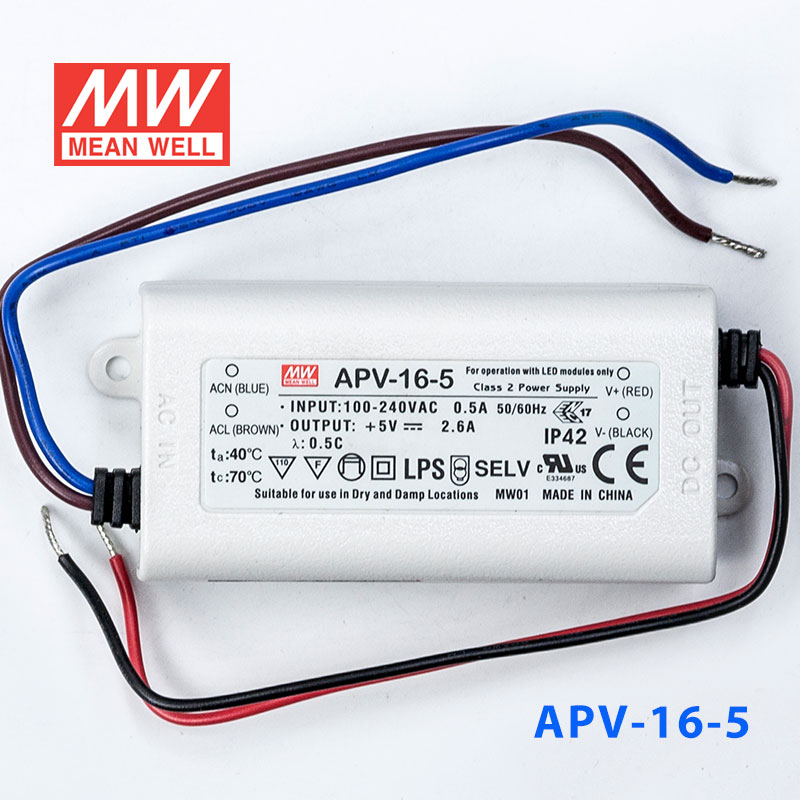

APV-16-5 · 牌恒压输出防水塑壳LED照明电源

Mean Well · Enclosed Switching Power Supply · 13W 5

输出电压: 5 V DC
额定功率: 13 W
输出电流: 2.6 A

¥28.60市场价 ¥36.40含 13% 增值税

选择型号 — APV-16系列APV-16-5

APV-16-513W · 5V · 2.6A

APV-16-1215W · 12V · 1.25A APV-16-1515W · 15V · 1A APV-16-2416.1W · 24V · 0.67A APV-16E-513W · 5V · 2.6A APV-16E-1215W · 12V · 1.25A APV-16E-1515W · 15V · 1A APV-16E-2416.1W · 24V · 0.67A

现货即将售罄无货

现货 · 上海仓 5 件下单后当天备货，工作日 16:00 前付款当日发出

1–3 天
发货

数量

关于 APV-16-5，直接问工程师已带入当前型号，无需重复说明。

批量报价

也可在官方旗舰店购买

淘宝京东天猫

下载规格书·

明纬原厂授权分销商CBCE EACENECUL可开 13% 增值税专票

满购包邮正品授权含 13% 增值税发票工程师选型支持

产品概述

产品特点

Constant voltage design
Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
Small and compact size
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
IP42 design
Display devices for decorative & advertising accessories (Note.7)
General-purpose electronics operated in dusty or damp environments
100% full load burn-in test
Low cost, high reliability
2 years warranty

规格参数

APV-16-5参数摘自官方规格书（2026-09-04 版）下载规格书 PDF

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 2.6A
CURRENT RANGE: 0 ~ 2.6A
RATED POWER: 13W
RIPPLE & NOISE (max.)^注Note.2: 100mVp-p
VOLTAGE TOLERANCE^注Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^注Note.6: 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^注Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 76%
AC CURRENT: 0.3A/230VAC 0.5A/115VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=250μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER LOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

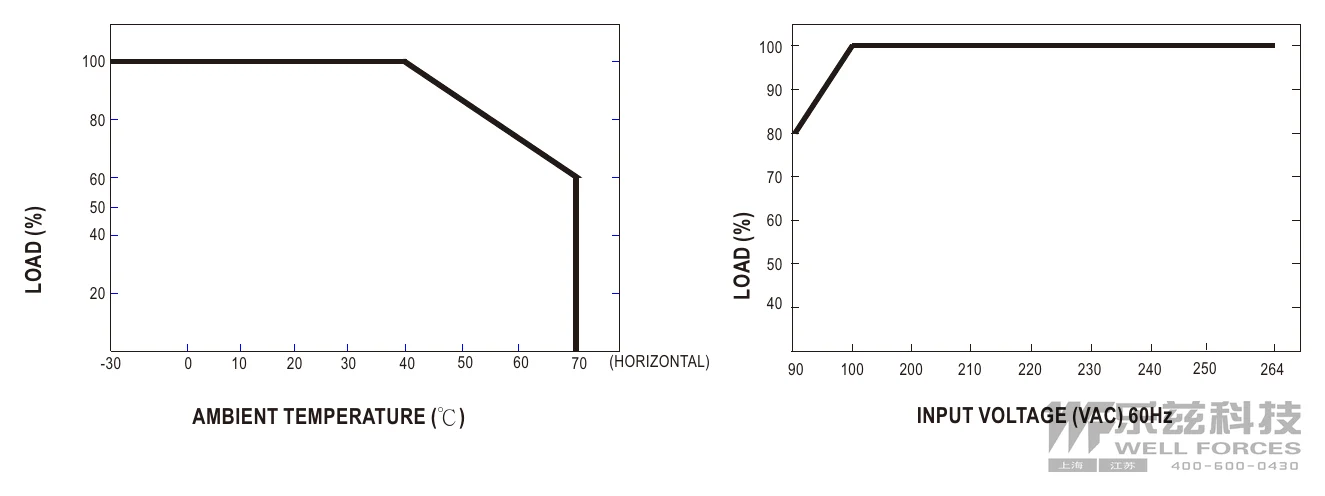

WORKING TEMP.: -30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^注Note.8: UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF: 7265.5K hrs min. Telcordia SR-332 (Bellcore) ; 1128.9K hrs min. MIL-HDBK-217F (25℃)

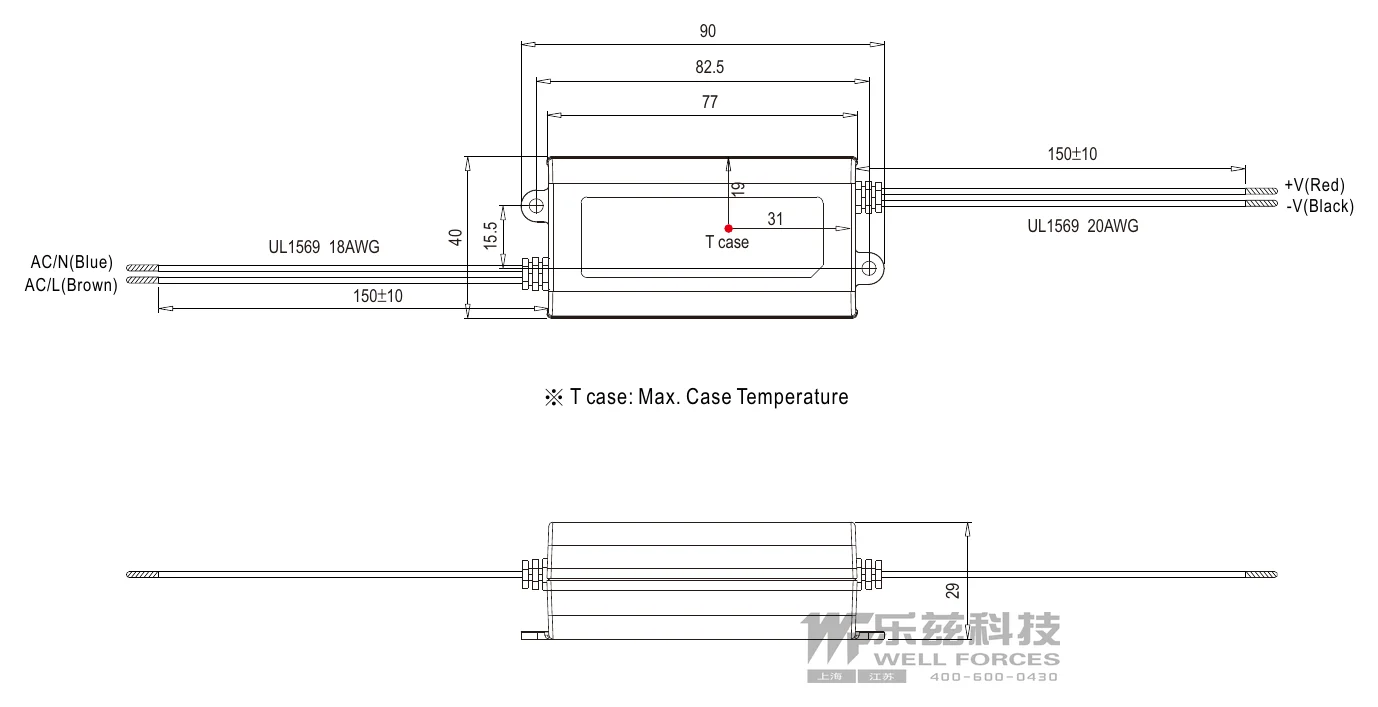

DIMENSION: 77*40*29mm (L*W*H)
PACKING: 0.1Kg; 120pcs/14Kg/1.06CUFT

测试条件与备注10

All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

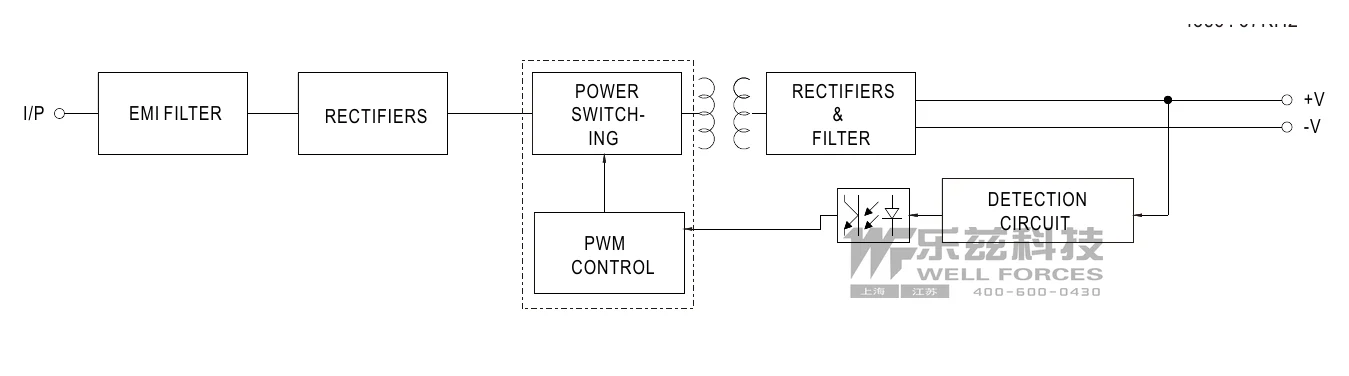

技术图纸

典型应用

■ 典型应用

室内LED照明 — 适用于LED灯条、LED灯带、LED筒灯、LED面板灯等5V照明设备。
LED广告显示 — 为LED电子广告牌、LED招牌、LED显示屏模组提供稳定供电。
装饰照明 — 橱窗照明、展柜照明、轮廓照明、氛围灯光等应用场景。
商业照明 — 商场、超市、专卖店等室内商业LED照明系统。
